FT-50 Fill Level Inspector Service Manual
3-10
4. Insert the vertical support pipe into the tripod until it stops. Do
not completely tighten the retaining bolts, leave them loose
enough so you can make alignment adjustments later.

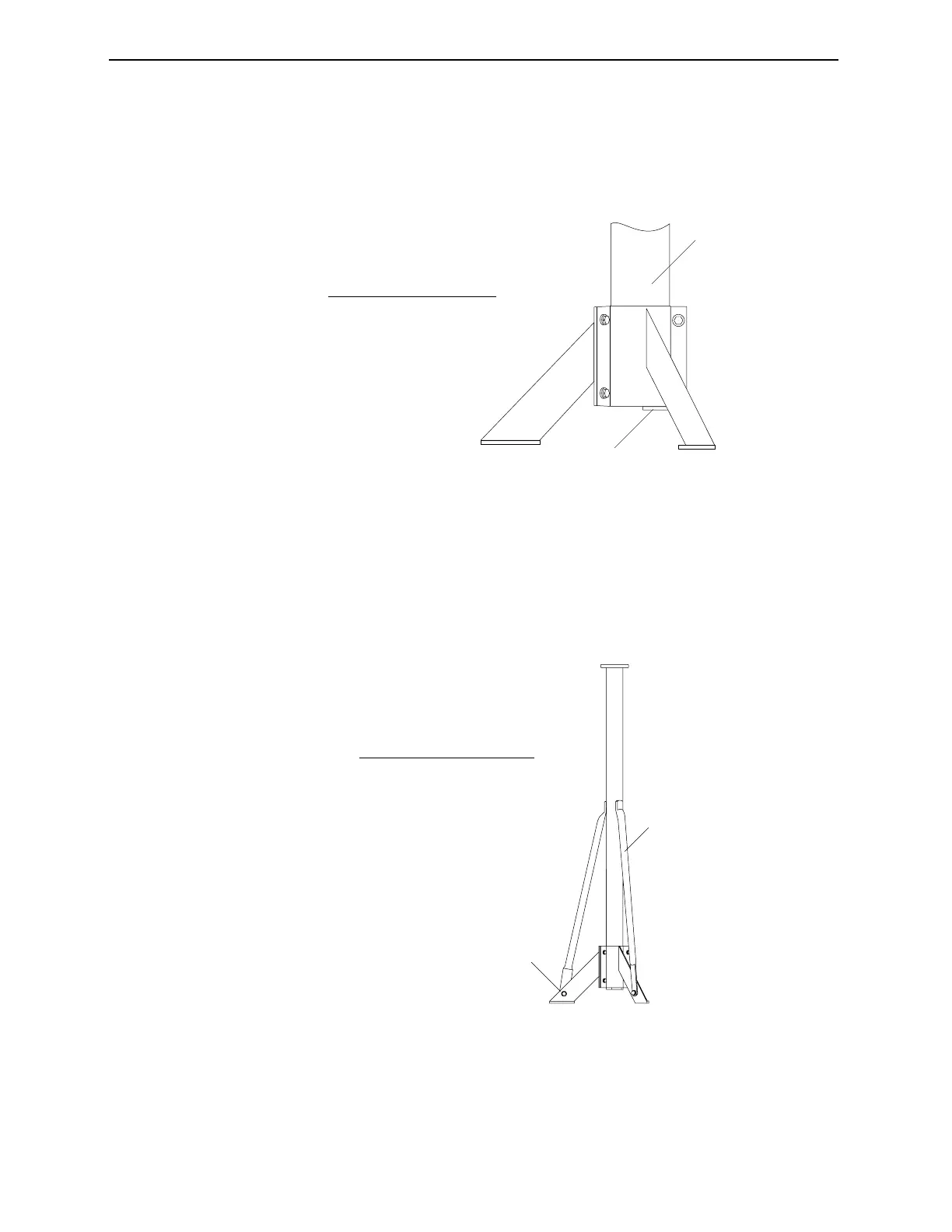

Figure 3-6. Inserting the vertical support pipe into the base tripod.
5. If you are using a standard or high mount, attach the support
braces to the tripod. Do not completely tighten the retaining
bolts, leave them loose enough so you can make alignment
adjustments later.
Figure 3-7. Attaching the support braces to the base tripod.
2
1
No. Description
1 Support Pipe
2 Stop Plate
1
2
No. Description
1 Support Brace
2 Retaining Bolts
Industrial Dynamics Company, Ltd. Document 40255-0600
