Chapter 3: Installing the FT-50
3-11
6. Attach the upper ends of the support braces to the vertical pipe
with the pipe clamp. The pipe clamp is only temporary. After
final positioning adjustments are made, you will spot weld the
supports into place and remove the clamp.

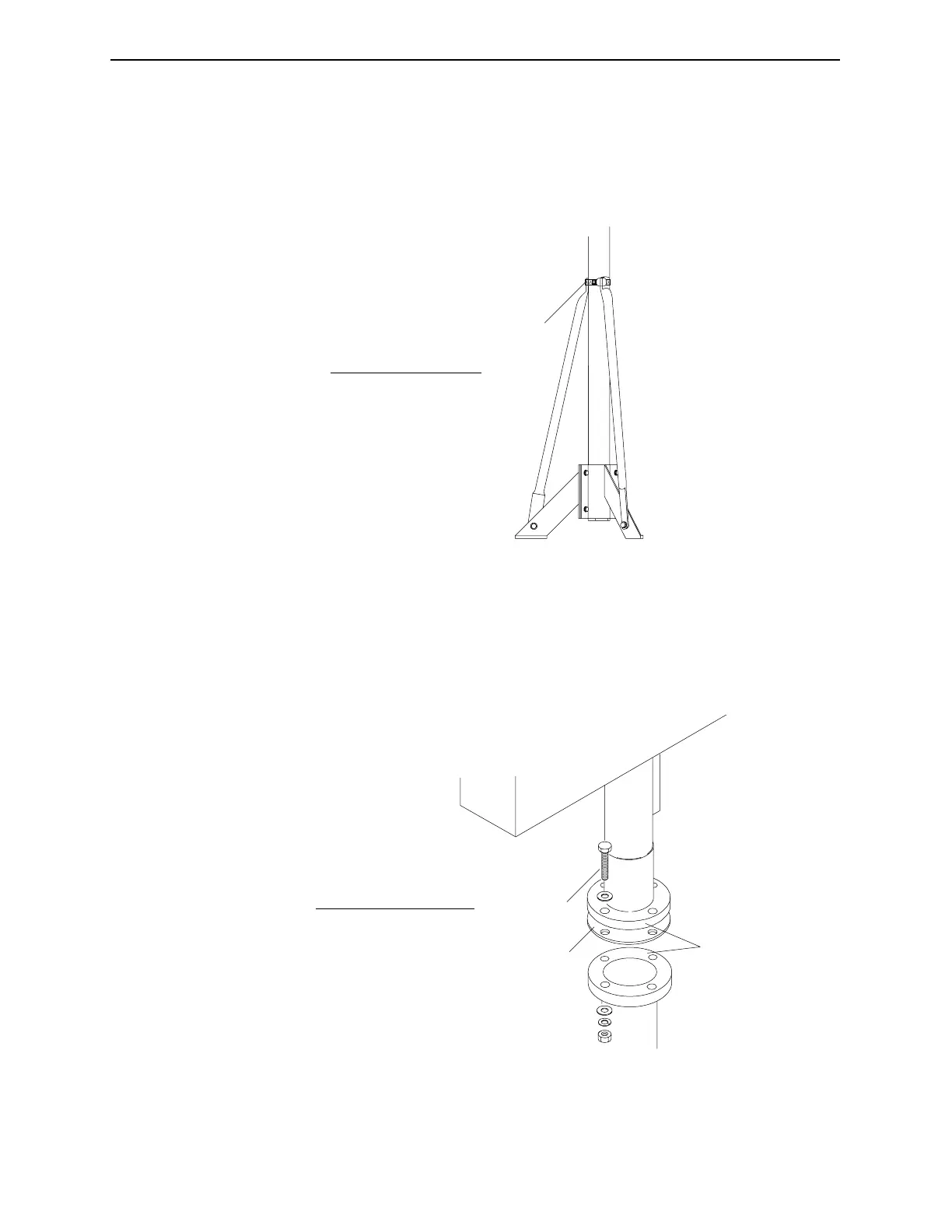

Figure 3-8. Attaching the upper ends of the support braces.
Mount and Position the Inspection Head
1. Mount the inspection head to the top of the support pipe by
connecting the flanges with the supplied hardware and tight-
ening securely.
Figure 3-9. Mounting the inspection head on the vertical support
pipe.
1
No. Description
1 Pipe Clamp
1
2
3
No. Description
1 Mounting Bolt
2 Gasket
3 Flanges
Industrial Dynamics Company, Ltd. Document 40255-0600
