FT-50 Fill Level Inspector Service Manual
4-12
Aligning the Bulged End Sensor Height
The Bulged End Sensor is mounted on a separate bracket that is
attached to Centerline Sensor Mount Bracket.

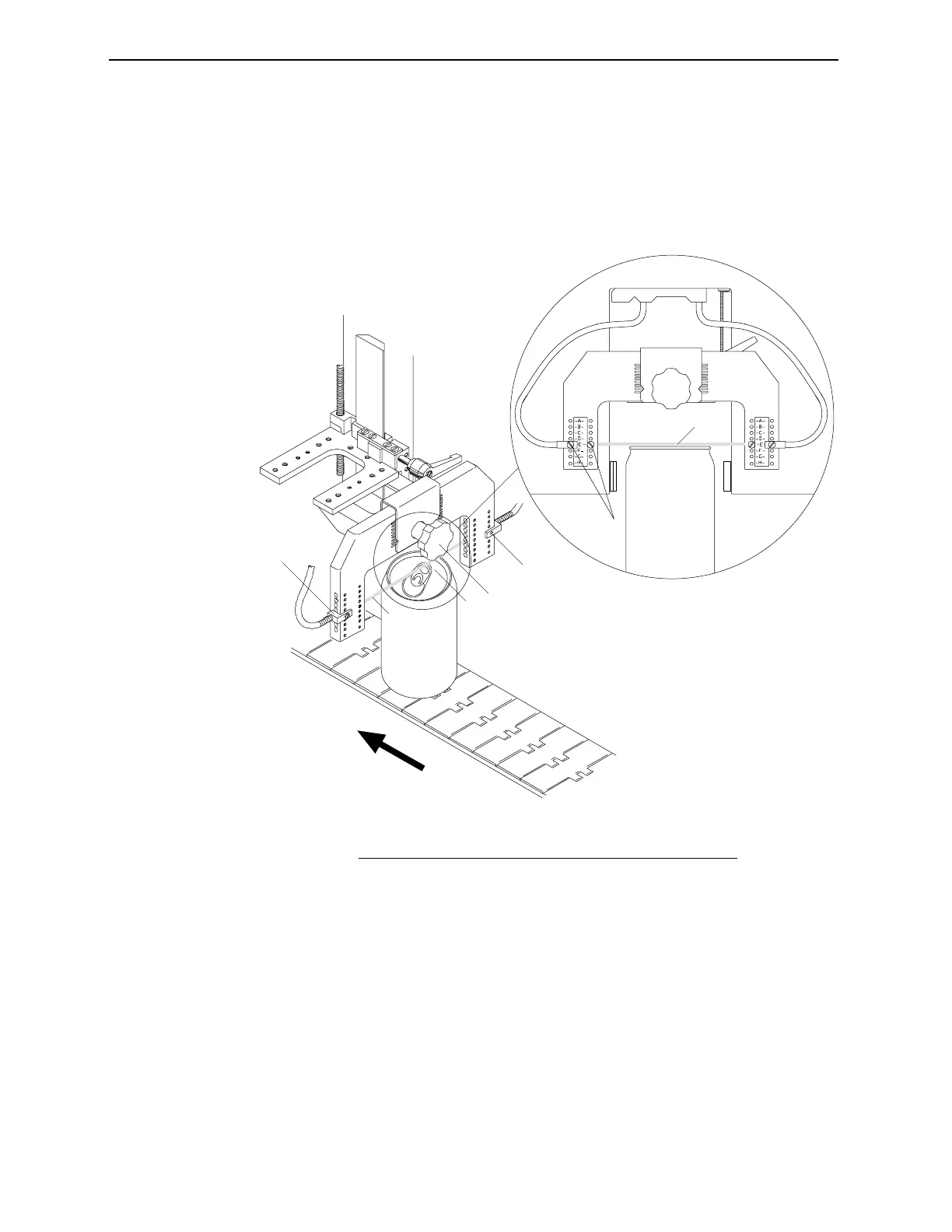

Figure 4-6. Aligning the Bulged End Sensor
6
1
2
3
4
5
No. Description
1 Sensor Emitter
2 Height Adjustment Lock
3 Container Lid
4 Sensor Beam
5 Sensor Receiver
6 Container Travel
7 Distance between Container Lid and Sensor Beam
8 Secondary Sensor Height Adjustment
Industrial Dynamics Company, Ltd. Document 40255-0600
