FT-50 Fill Level Inspector Service Manual
4-10
Aligning the Missing Lid Sensor Height
The Missing Lid Sensor is mounted on the Centerline Sensor
Bracket. Align the Missing Lid Sensor height after you align the
Inspection Trigger Sensor height.

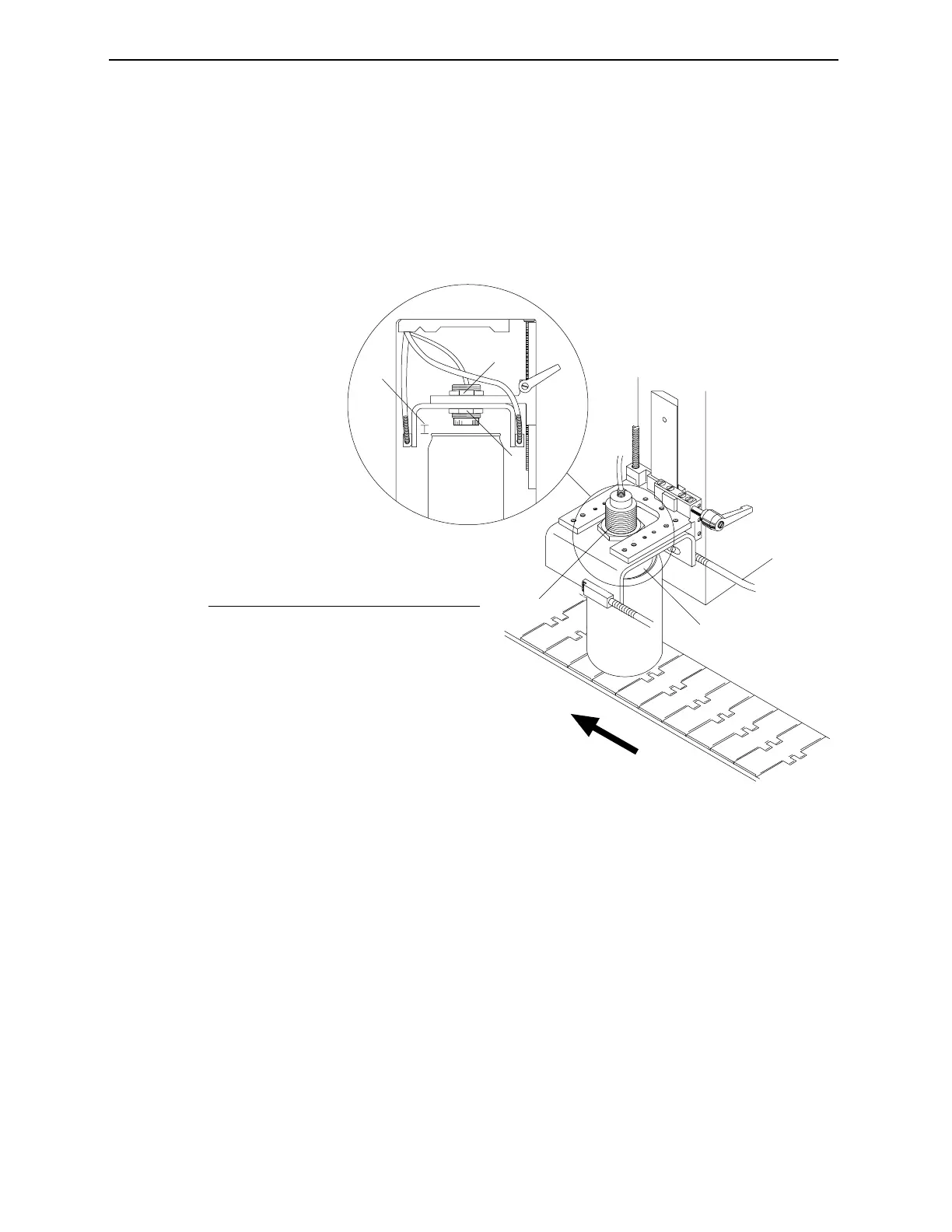

Figure 4-5. Aligning the Missing Lid Sensor height.
1. Loosen the bottom jam nut on the missing lid sensor.
2. Center a properly filled and sealed production container in the
inspection tunnel so that it is directly under the missing lid
sensor.
2
3
1
4
5
6
No. Description
1 Missing Lid Sensor
2 Container Lid
3 Container Travel
4 Distance between Lid and Sensor
5 Upper Locking Nut
6 Lower Locking Nut
Industrial Dynamics Company, Ltd. Document 40255-0600
