Filtec FT-50c - Aligning the Fill Level Inspection Beam

FT-50 Fill Level Inspector Service Manual
4-6
Aligning the Fill Level Inspection Beam
You must adjust the FT-50’s head height so the fill level inspection
beam contacts the container at the proper height. The FT-50 can
perform either underfill inspection or overfill inspection, it can not
perform both simultaneously.
1. Close the radiation source safety shutter by pushing the
actuating rod in until no red paint is visible.
2. Loosen the Head Height Locking Handle on the side of the
inspection head and using the Inspection Head Height Crank,
raise the head all the way.

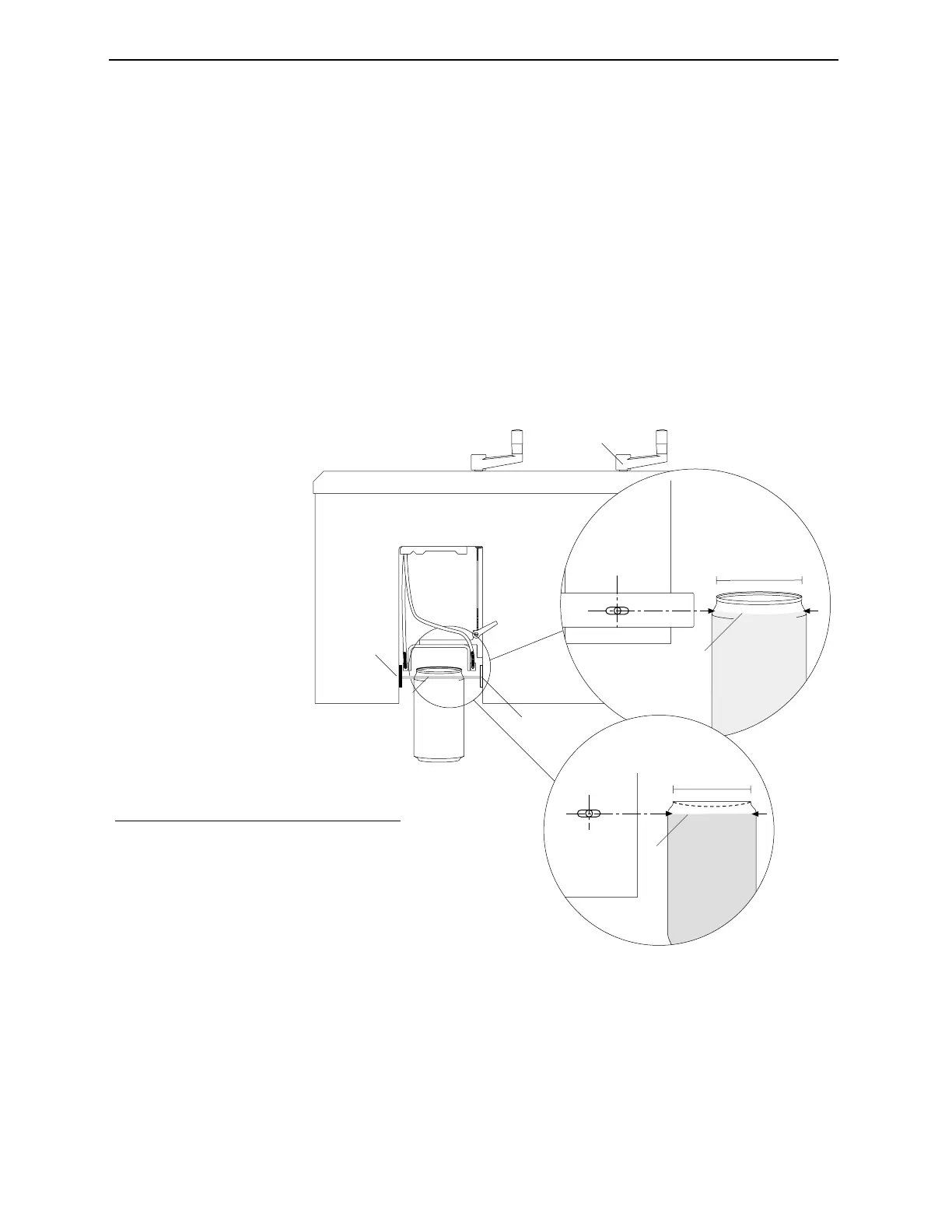

Figure 4-3. Setting the proper fill level inspection point.
1
2
4
3
7
6
5
8
7
6
9
8
No. Description
1 Head Height Adjustment Crank
2 Gamma Beam Source
3 Inspection Beam Centerline
4 Radiation Detector
5 Gamma Beam Horizontal Centerline
6 Gamma Beam Vertical Centerline
7 Time Width of Container (top up)
8 Container Fill level
9 Time Width of Container (bottom up)
Industrial Dynamics Company, Ltd. Document 40255-0600
