FT-50 Fill Level Inspector Service Manual
4-4
Mechanical Configuration
To mechanically configure the FT-50 you must complete the
following procedures:
• Adjust the Head Height for Fill Level Inspection.
• Adjust the Inspection Trigger height.
If your FT-50 contains the following options, you must also
complete these additional procedures:
• Adjust the Missing Lid Sensor height
• Adjust the Bulged End Sensor height
• Adjust the Down Can Sensor height
• Wire the External Reject Function
After you adjust all mechanical parameters, proceed to the
Software Configuration section in this chapter.

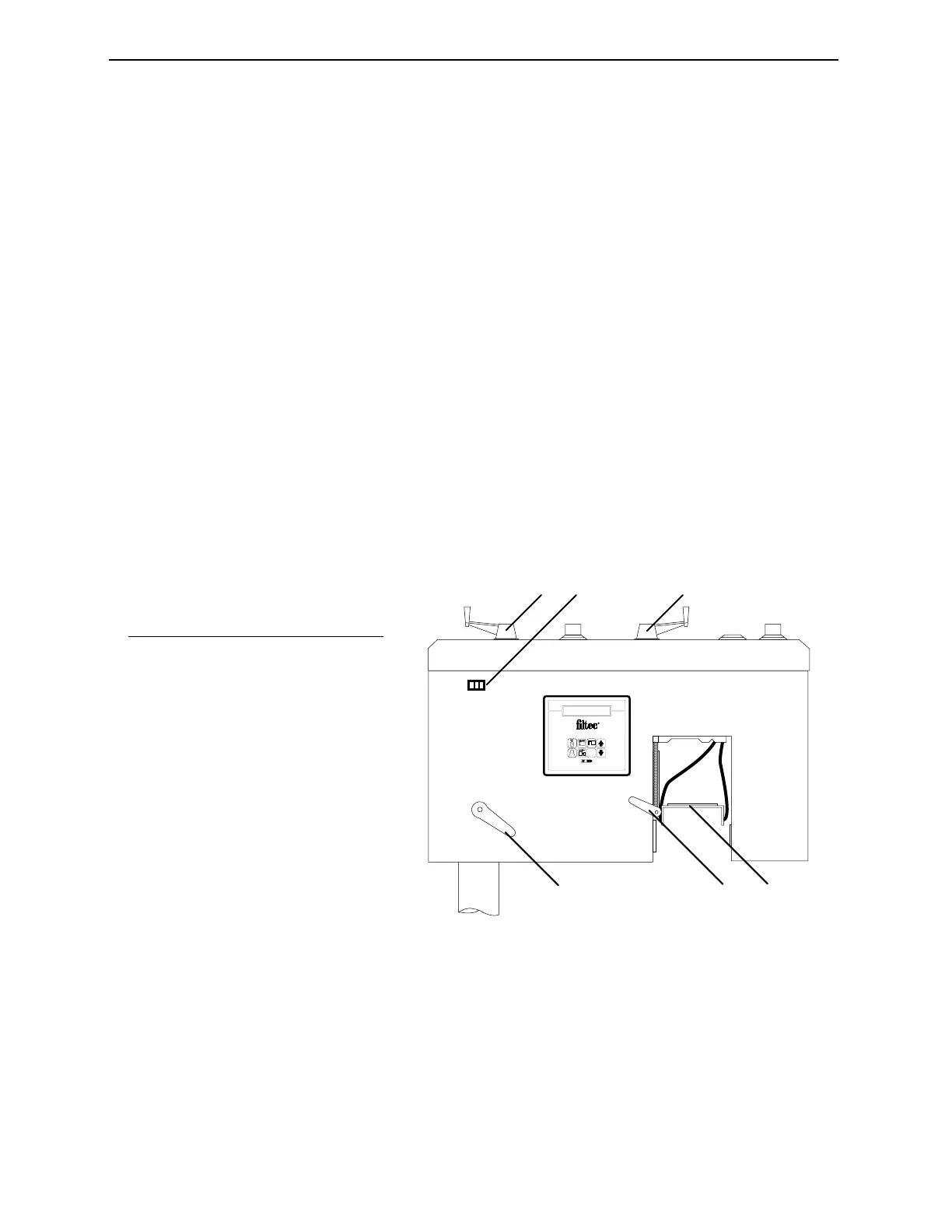

Figure 4-2. FT-50 mechanical adjustment mechanisms.
?
6
INDUSTRIAL DYNAMICS
Torrance, California USA
MODEL FT-50
FILL LEVEL INSPECTOR
4
3
5
1
2
5
1
3
46
6 6 6
2
No. Description
1 Head Height Adjustment Crank
2 Head Height Counter
3 Centerline Trigger Bracket
Height Adjustment Crank
4 Centerline Trigger Bracket
5 Centerline Trigger Bracket
Height Lock
6 Head Height Lock
Industrial Dynamics Company, Ltd. Document 40255-0600
