Chapter 3: Installing the FT-50
3-13
Secure the Floor Stand to the Floor
1. Mark the position of the three (3) mounting holes in the base
tripod on the floor.
2. Drill a mounting hole at each of the three (3) marks you made
on the floor. You must supply three (3) 1/2 inch x 4 inch lag
bolts and lead inserts.

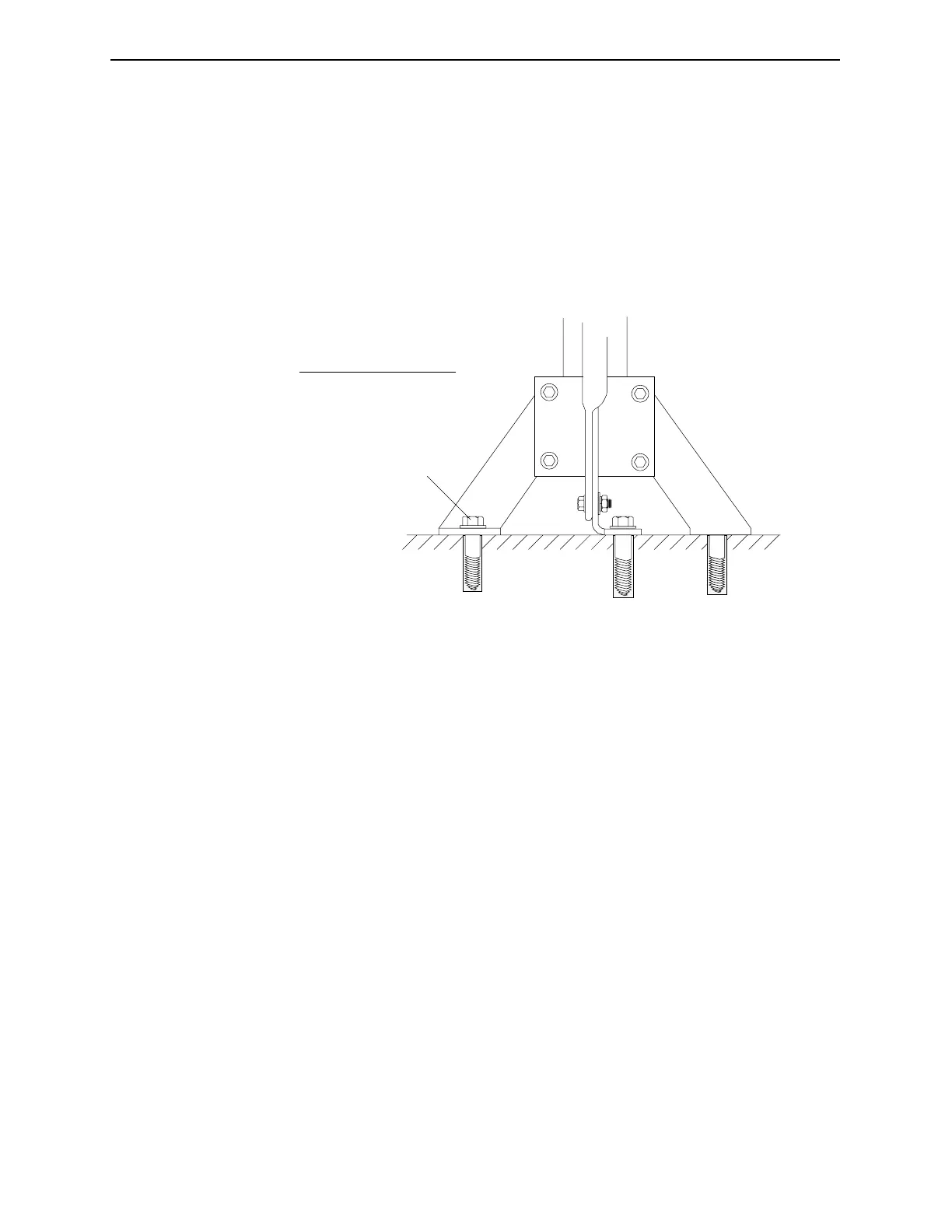

Figure 3-11. Anchoring the base tripod to the floor.
3. Bolt the tripod to the floor.
1
No. Description
1 Lag Bolt
