FT-50 Fill Level Inspector Service Manual
3-12
2. Move the assembled unit into position on the conveyor. To
achieve proper positioning you must do the following:
• Align the centerline of the FT-50 with the centerline mark
you made on the conveyor.
• Align the inspection tunnel so that it is centered over the
conveyor chain and the inspection head is perpendicular to
the conveyor.
• Place a small carpenter's level along the bottom of the FT-50
so that it spans the inspection tunnel. You may need to raise
the inspection head to allow room to fit the level between
the conveyor and bottm of the FT-50.
• Shift the vertical support pipe in its mounting as needed
until the inspection head is level.

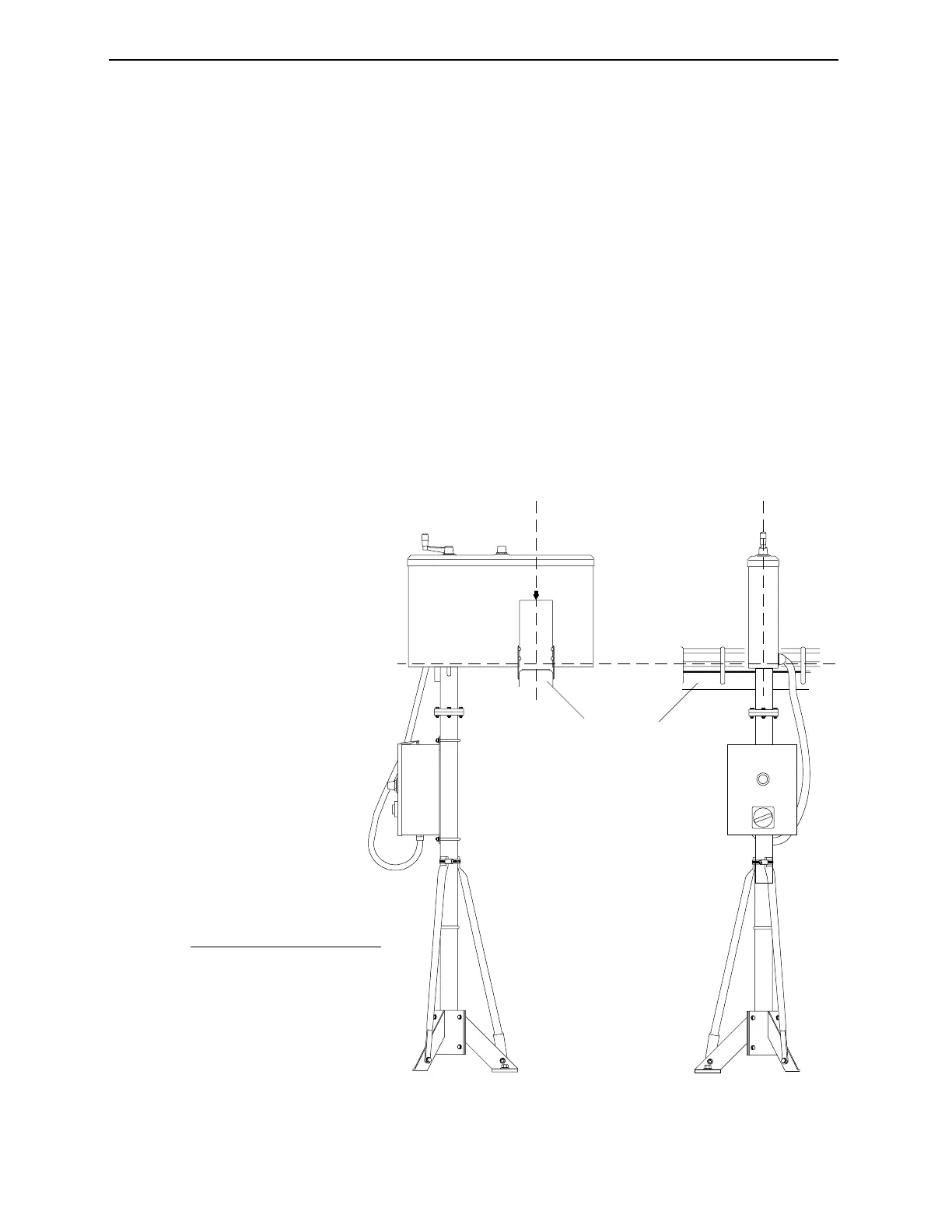

Figure 3-10. Aligning the FT-50 to the conveyor.
1
1
2
3
3
No. Description
1 Vertical Centerline
2 Horizontal Centerline
3 Conveyor
Industrial Dynamics Company, Ltd. Document 40255-0600
