FT-50 Fill Level Inspector Service Manual
4-14
Aligning the Down Can Sensor
The Down Can Sensor is mounted on separate brackets that are
attached on the bottom of the inspection head and aligned to the
head centerline.

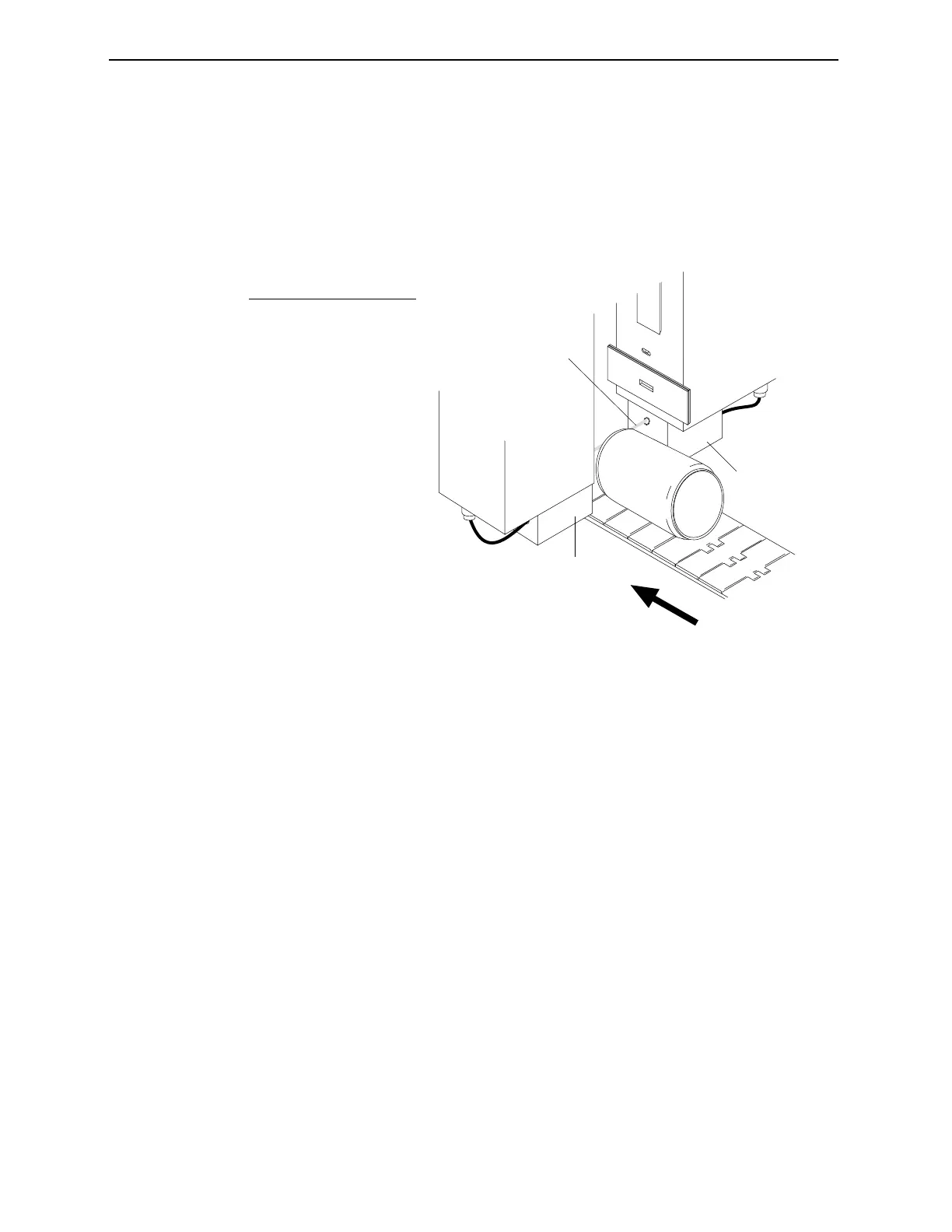

Figure 4-7. Aligning the Down Can Sensor.
1.The mounting brackets themselves are not adjustable, however
the sensor height can be adjusted by positioning it in the
proper mounting hole within the block.
2.To determine the proper sensor height, align fill level inpection
beam first (and perform Fill Level Optimization if needed) and
then refer to the Installation and Service Drawings Pack to
locate the drawing of your bracket. Use the information in the
drawing to determine the proper position for the sensor.
3. If you will not be performing further alignment procedures,
open the safety shutter by pulling the actuating rod out until it
stops.
Drawing Can Sizes
26796 8, 12, 16 oz.
32293 8 , 10,12, 16, 24 oz.
4
1
3
2
No. Description
1 Sensor beam
2 Sensor Emitter
3 Sensor Receiver
4 Container Travel
Industrial Dynamics Company, Ltd. Document 40255-0600
