Chapter 3: Installing the FT-50
3-19
Install the Air Purge System
1. Attach the air filter/regulator to the vertical support pipe using
the supplied UBolt. You can mount the air filter in an alternate
location providing the distance does not exceed the 40-inch
length of the air hose.

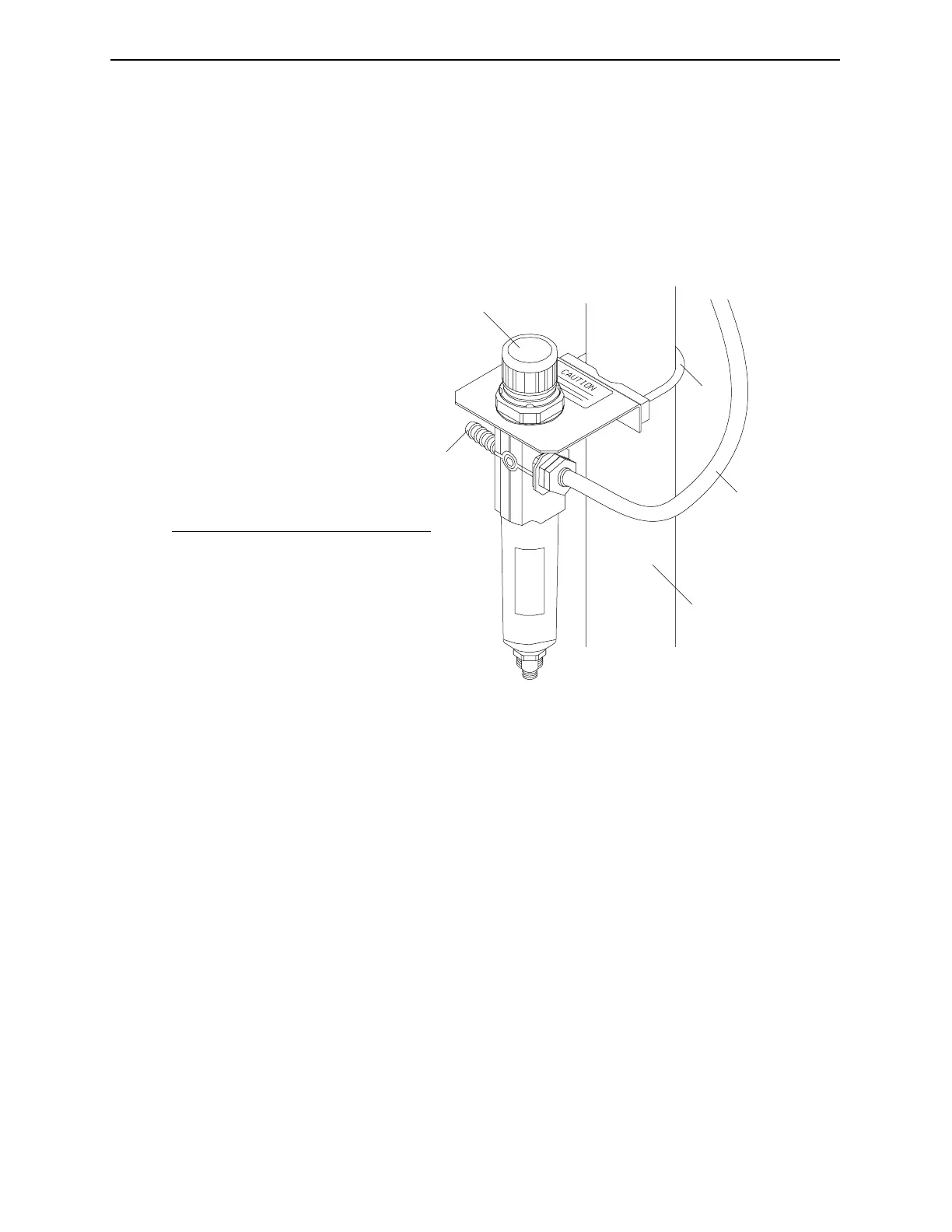

Figure 3-17. Installing the air purge system.
1
2
3
4
5
No. Description
1 Pressure Adjustment Knob
2 UBolt
3 Output Air Hose (to FT-50)
4 Vertical Support Pipe
5 Air input (attach input air hose)
Industrial Dynamics Company, Ltd. Document 40255-0600
