FT-50 Fill Level Inspector Service Manual
3-20
2. Connect the air line from the filter/regulator to the air input of
the FT-50.

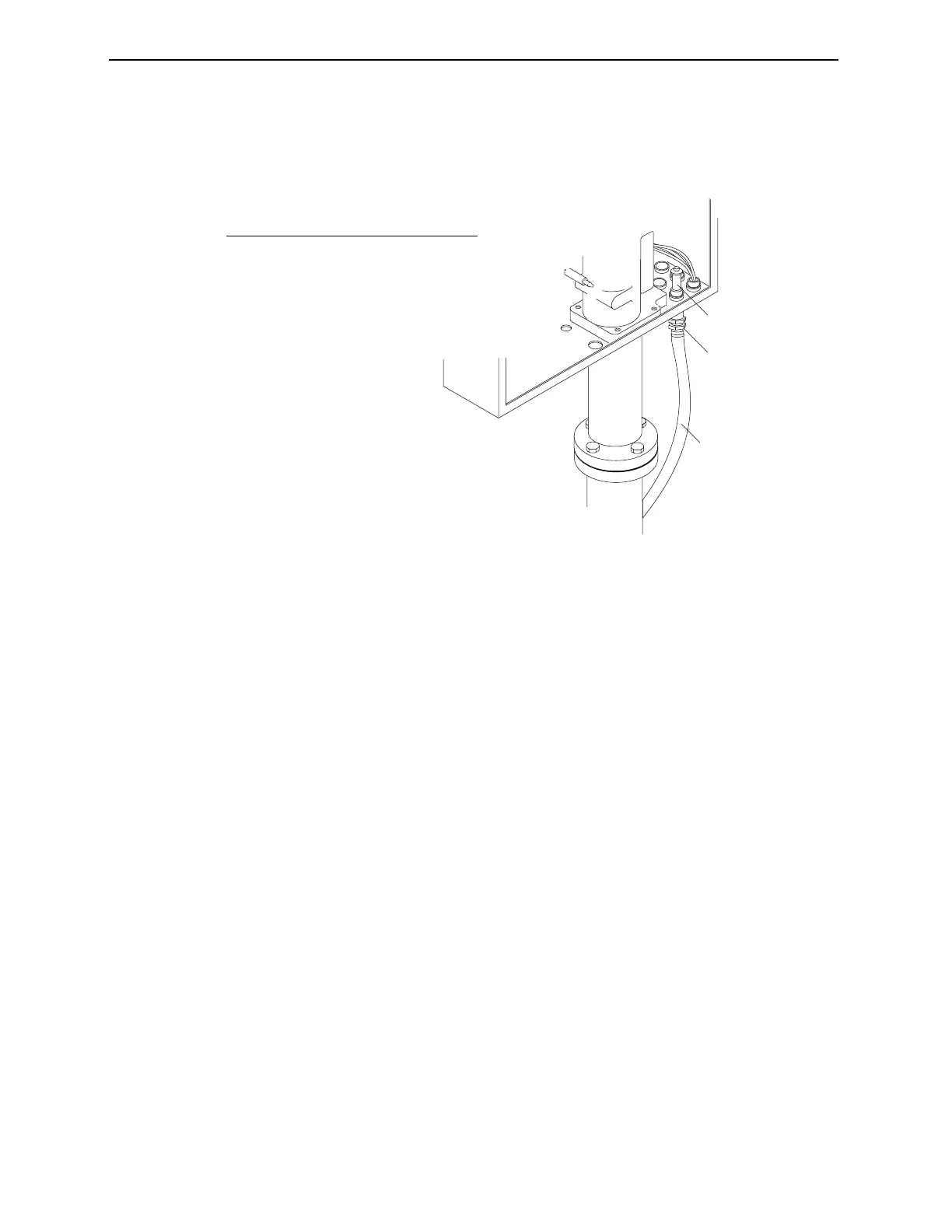

Figure 3-18. Connecting the air line to the FT-50.
3. Connect the input air source line to the input of the
filter/regulator. The input air pressure should be approxi-
mately 80-120 psi at 1.5 cfm.
1
2
3
No. Description
1 Air Regulator/Disperser
2 Air Input
3 Air Hose (from filter/regulator)
Industrial Dynamics Company, Ltd. Document 40255-0600
