FT-50 Fill Level Inspector Service Manual
3-14
Install the Slant Support Braces
If you are performing a high mount or low mount, install the slant
braces. You can install the braces on either side of the vertical
support pipe, depending upon available clearance from the
conveyor and other objects. Refer to drawing I-00401 and I-00415
in the Installation and Service Drawing Pack for more information.
1. Attach the slant brace upper mounting brackets to the vertical
support pipe using the supplied pipe clamps. Leave the clamps
loose enough so that you can slide the brackets to make adjust-
ments.

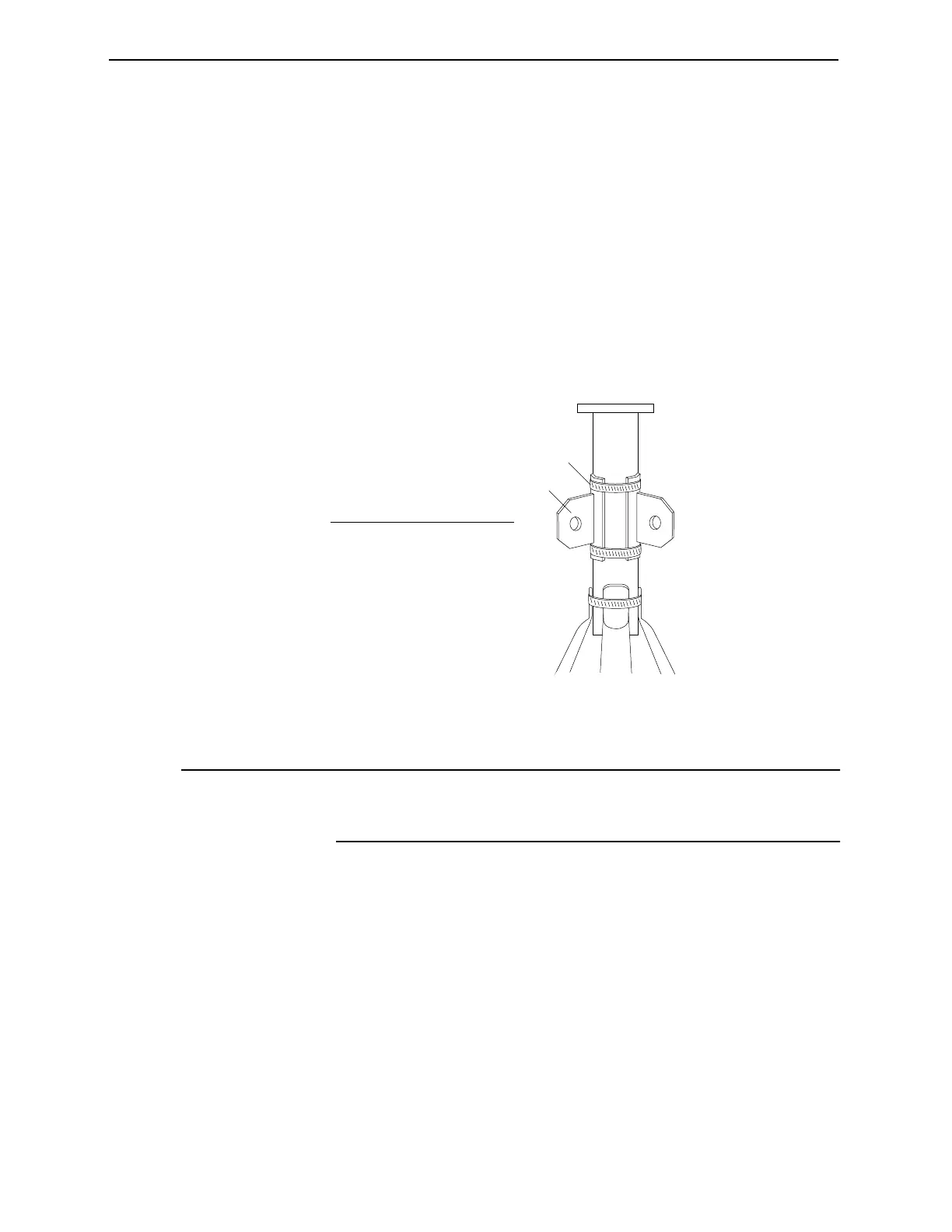

Figure 3-12. Attaching the slant brace vertical mounting brackets.
Note
The pipe clamp is only temporary. After final positioning
adjustments are made, you will spot weld the supports into place
and remove the clamp.
1
2
No. Description
1 Pipe Clamp
2 Upper Slant Brace
Support Brackets
Industrial Dynamics Company, Ltd. Document 40255-0600
