Chapter 3: Installing the FT-50
3-15
2. Determine the angle and length of the slant brace by stringing
a measuring tape from the support bracket to the floor. Move
the slant brace support bracket up or down to achieve the
proper angle.

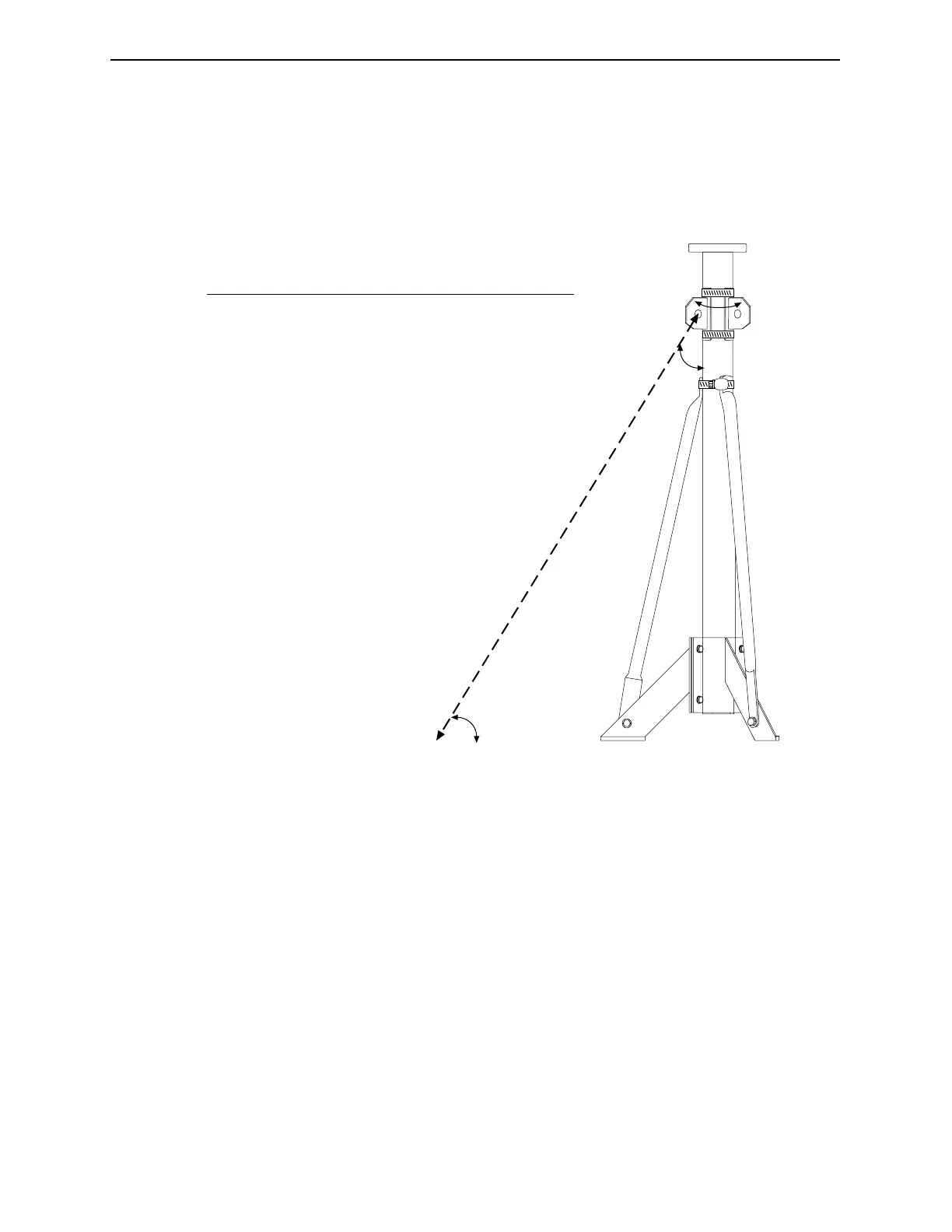

Figure 3-13. Determining the length and position of the slant
braces.
3. Calculate the length of the brace by subtracting 6 inches from
the measurement you made in the previous step.
4. Measure and cut the slant brace to the determined length,
removing the excess from the open end.
5. Attach a slant brace to each bracket, check the brace angles as
explained in step 2, and then tighten the pipe clamps securely.
35°
35°
1
2
No. Description
1 Measure from the hole to the floor while
maintaining an angle of approximately 35°.
2 The mount brackets should be angled from 60° to
90° to each other.
Industrial Dynamics Company, Ltd. Document 40255-0600
