FT-50 Fill Level Inspector Service Manual
3-22
Mounting the Encoder Offset
If you are using the offset mounting procedure, you will need:
• Two sprockets or flywheels providing a 1:1 ratio.
• A timing chain or timing belt.
• An adapter bracket to mount the encoder over the sprocket or
flywheel.
1. Because offsetting the encoder mount is a unique situation we
can only provide you with guidelines for the procedure. If you
are unsure contact an IDC Service Representative who will
assess the situation and help you devise a solution.

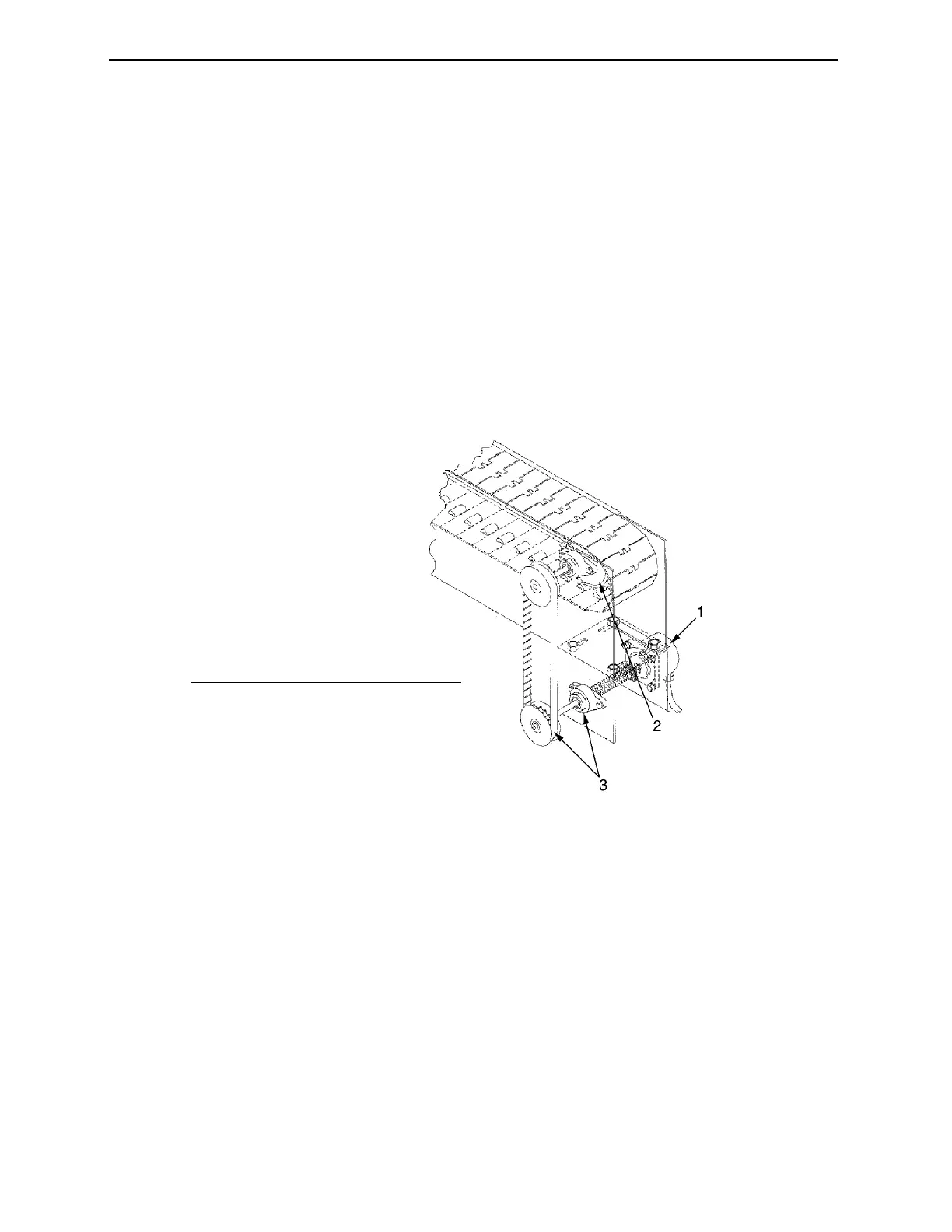

Figure 3-19. Possible offset encoder mount.
2. To wire the encoder, refer to the directions provided for the
inline mounting method.
Install the Rejector
Refer to the rejector installation manual that is included with your
inspection system for instructions on installing the rejector. When
you complete the rejector installation proceed to the next step to
wire the main power source to the FT-50.
No. Description
1 Encoder
2 Conveyor Drive Sprocket
3 Transfer Pulley, Shaft, and Mount
Industrial Dynamics Company, Ltd. Document 40255-0600
