2. Route the AC power cable into the FT-50 through one of the
watertight cable ports located in the bottom of the FT-50.

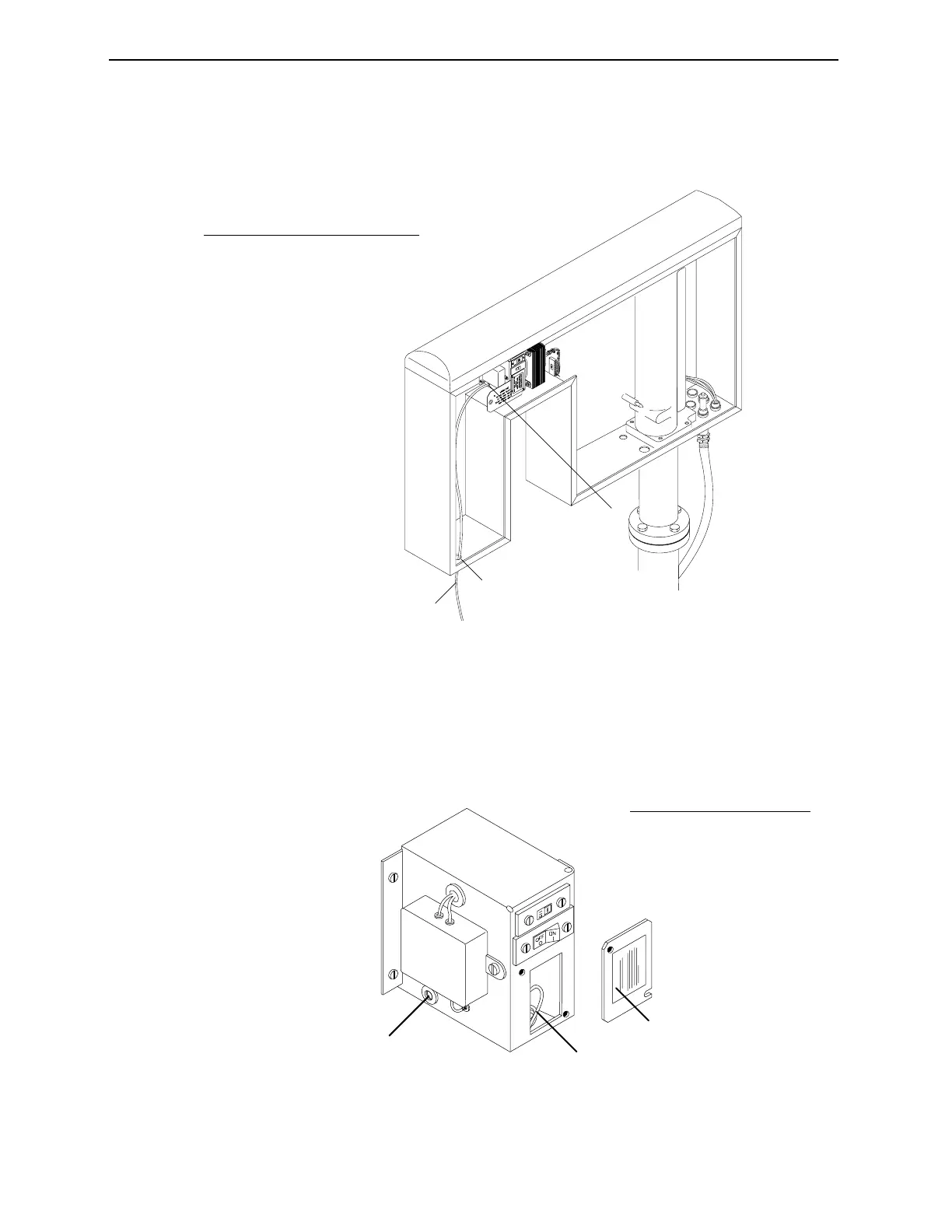

Figure 3-21. Route the Power Cable into the FT-50.
3. Remove the cover from the power filter and route the power
cable into the filter through the rubber grommet in the side.
Figure 3-22. Route the Power Cable into the Power Filter.
1
3
2
No. Description
1 Power cable
2 Watertight Cable Ports
3 Entrance to Power Filter
1
2
3
No. Description
1 Rubber Grommet
2 Power Wires
3 Filter Cover
