01-ECMSI-NT002.Rev B40

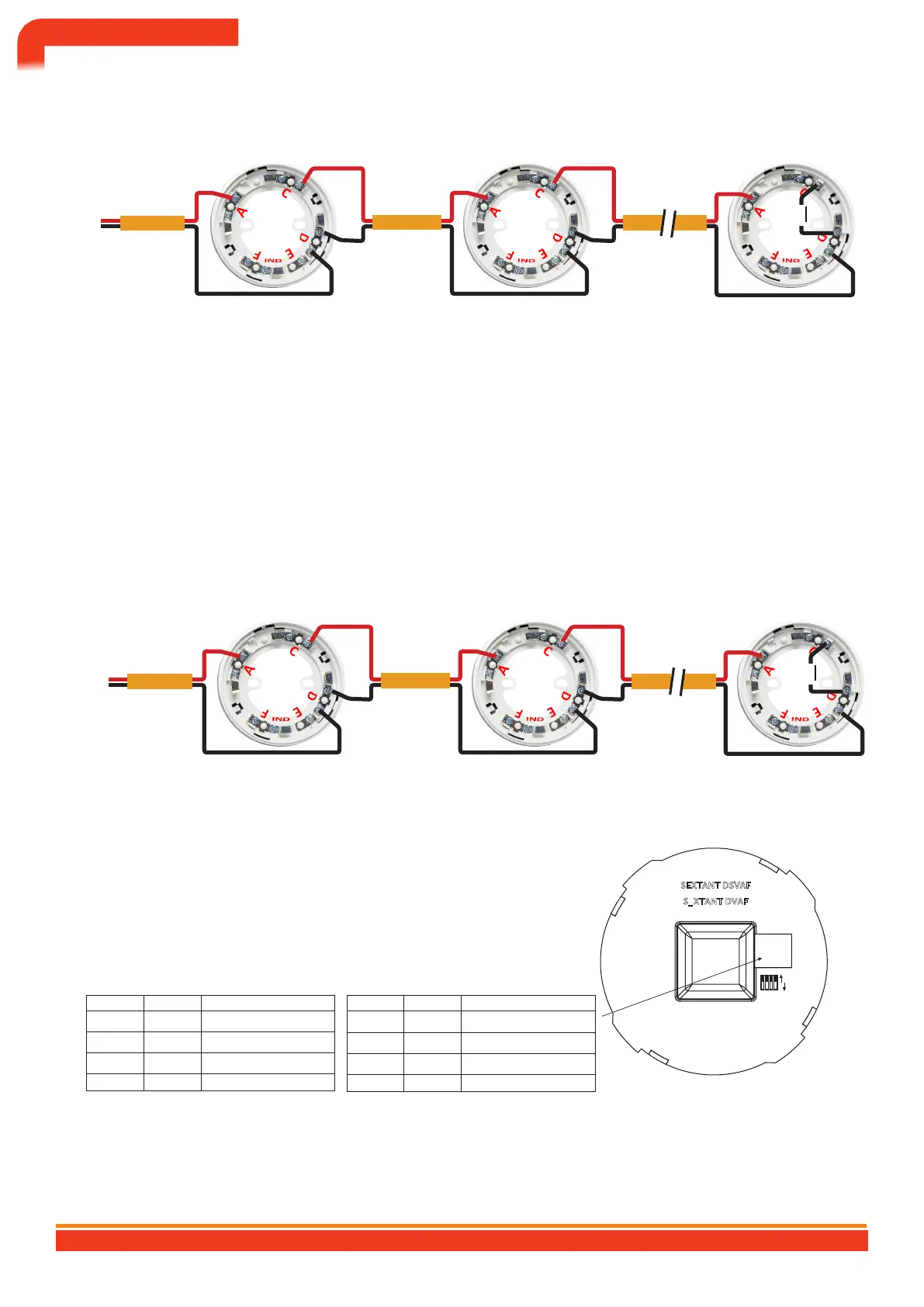

Sextant-DAGS wiring
* depending on configuration,
FIRST
SEXTANT DAGS
SECOND
SEXTANT DAGS
LAST
SEXTANT DAGS
insert E/IP or E/I2P interface
ECS/CMSI
OUTPUT OF SOUND
DIFFUSER LINES
+
-
1.5mm² cable
Maximum distance between the control panel and the DAGS:
500m Maximum number - internal AES: 7 to 500 m (1.5mm²)
Maximum number - internal AES: 16 to 100 m (1.5mm²)
Maximum number - External AES: 32 at 100/500m (1.5mm²)
EFL (end of line element): Resistance 10 KΩ s,
EFL to be connected between terminals C and D
Wiring Sextant-DVSAF / DVSAF-R / DVAF / DVAF-R / DVAF-C / DVAF-CR / DSAF
ICAUTION, Please check the configuration of the audible signal and/or the visual signal before installation.
FIRST
SEXTANT DVAF
SECOND
SEXTANT DVAF
LAST
SEXTANT DVAF
ECS/CMSI
OUTPUT OF SOUND
DIFFUSER LINES
+
-
* depending on configuration,
insert E/IP or E/I2P interface
1.5mm² cable
Maximum distance between the control unit and the DVAF/DSAF/DSVAF:
500m Maximum number: see table on next page
EFL (end of line element): 10 KΩ s resistor, EFL to be
connected between terminals C and D
SEXTANT DSVAF
SE XTAN DVAFT
Adding an EI/P or an EI2/P may be necessary
depending on the installation (see table below).
WE
OFF
DIP 1 DIP 2
Sound/Sound
DIP 3 DIP 4
Flash
1 2 3 4
WE
WE
NF S32-001
WE WE
LP 1Hz
WE OFF
NEN 2575
WE OFF
LP 0.5Hz
OFF WE
BS 5839-A
OFF WE
HP 1Hz
OFF OFF
DIN 33404-3
OFF OFF
HP 0.5Hz
Factory setting: NF S32-001 + LP 1Hz
†
Only the NF S32-001 configuration is authorized for use in France (see
configuration above)
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
53
EFL
EFL
To Next Page
