Connecting/replacing probe DMP30 / DMP40
Before you start
 The gauge is switched off ([ ]).

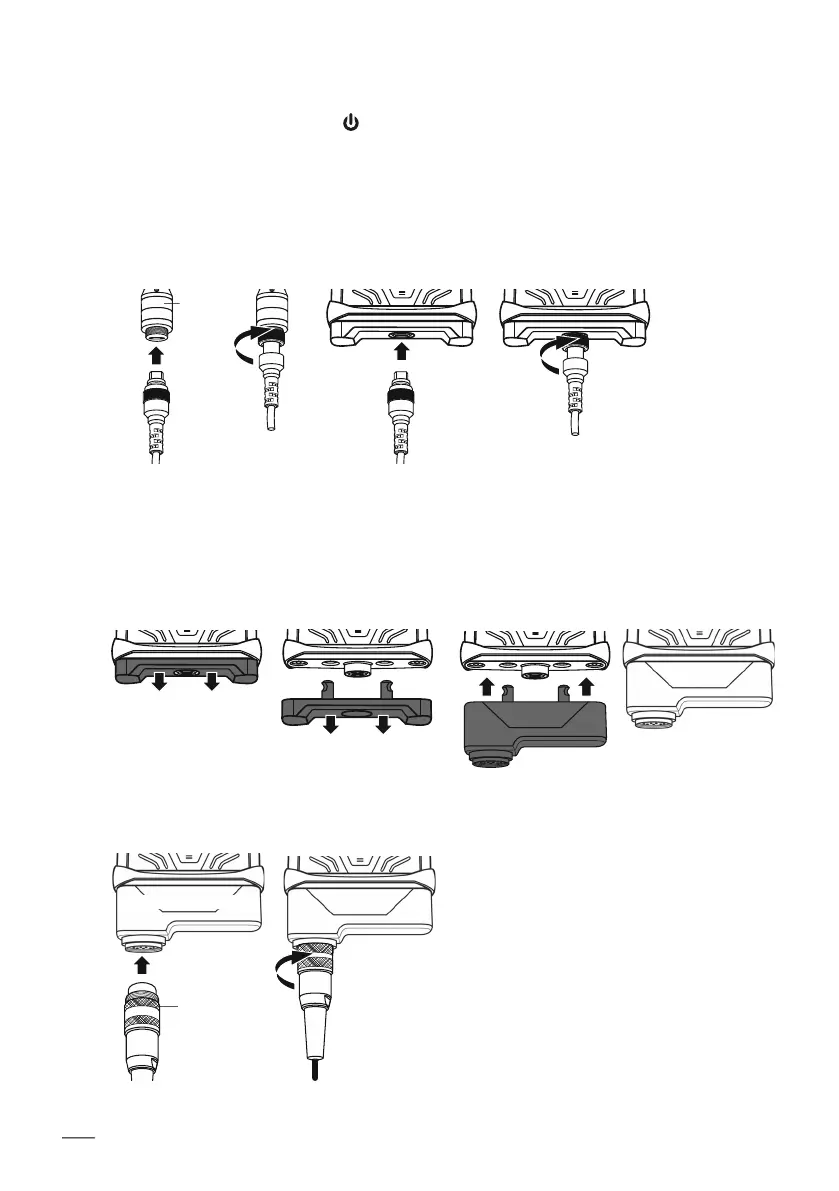

To connect the probe to the gauge
 Digital probes (D…) with USB-C connecting socket, USB-C connection cable in-
cluded in the scope of supply
 Analog probes (F…) with 12-pin connecting plug via DMP-F probe adapter
(1007336, available from Fischer as an accessory)
• To attach the DMP-F probe adapter to the gauge.
• To connect the probe to the DMP-F probe adapter..
Probe
2.
1.
3. 4.
1.
2.
3.
4.
DMP-F probe adapter
Probe
connector
DMP-F probe adapter
1.
2.
