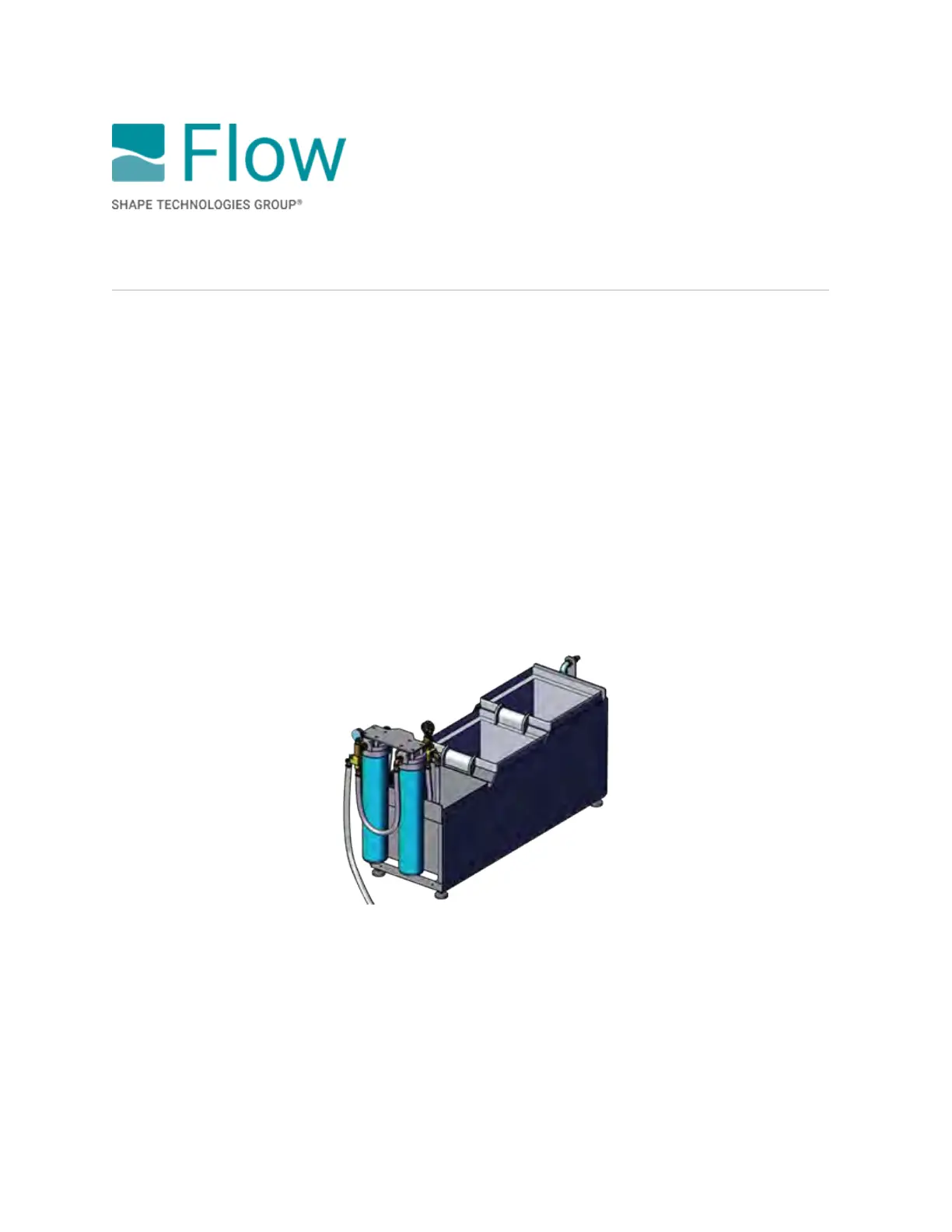

Final Filter System
The Final Filter System is designed to reduce the level of spent garnet and swarf in the overflow water
stream to a level that can be safely discharged into sewers or septic systems. The system consists of
the following components:
• three stepped weir tanks
• two 50 micron filters
• a sump pump
• a steel frame
The overflow water from the catcher tank flows through the weir tanks, then is pumped through the
filters. As the water passes through the tanks, the larger particles settle out. Any suspended particles
larger than 50 microns are trapped by the filters. Operation of the Final Filter System is automatic. Make
sure power is supplied to the sump pump.
Specification
Capacity …………… 53 L/min (14 gpm)
Interface type …………… ½ in. JIC
© 2021 Flow International Corp.
Retrieved from Flow KB on April 14, 2021 PST
Ancillary option: Final Filter System
