Dynamic Waterjet straightness adjustment
Where used
Mach 500 ……………… Dynamic Waterjet
Mach 300 ……………… Dynamic Waterjet
Recommended interval
Weekly
Summary
Dynamic Waterjet is designed to compensate for taper and trailback throughout the cutting process.
However, if the mixing tube is not perpendicular to the part, the edge quality will reflect as a poor cut.
To help avoid this, do an adjustment weekly so that you don't inadvertently damage expensive
material.
Tools
• Dial indicator
• Indicator attachments: flat or chisel tip
• Magnetic base
Supplies
• Piece of stable, ferrous metal
• Cardboard or sheet of plywood so objects don't fall in catcher tank

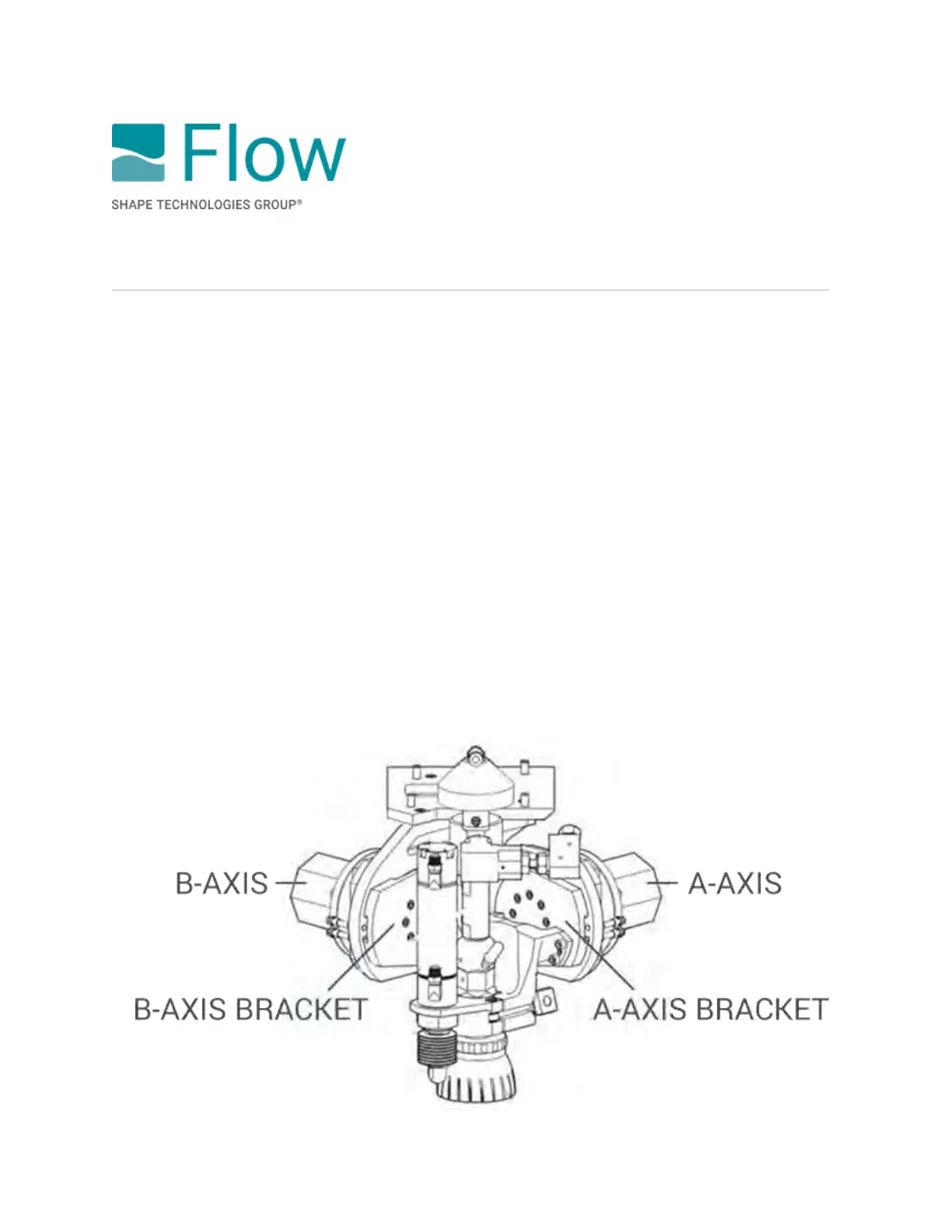

View 1
