Flow MACH 300 - Cutting head assembly · 041136-1

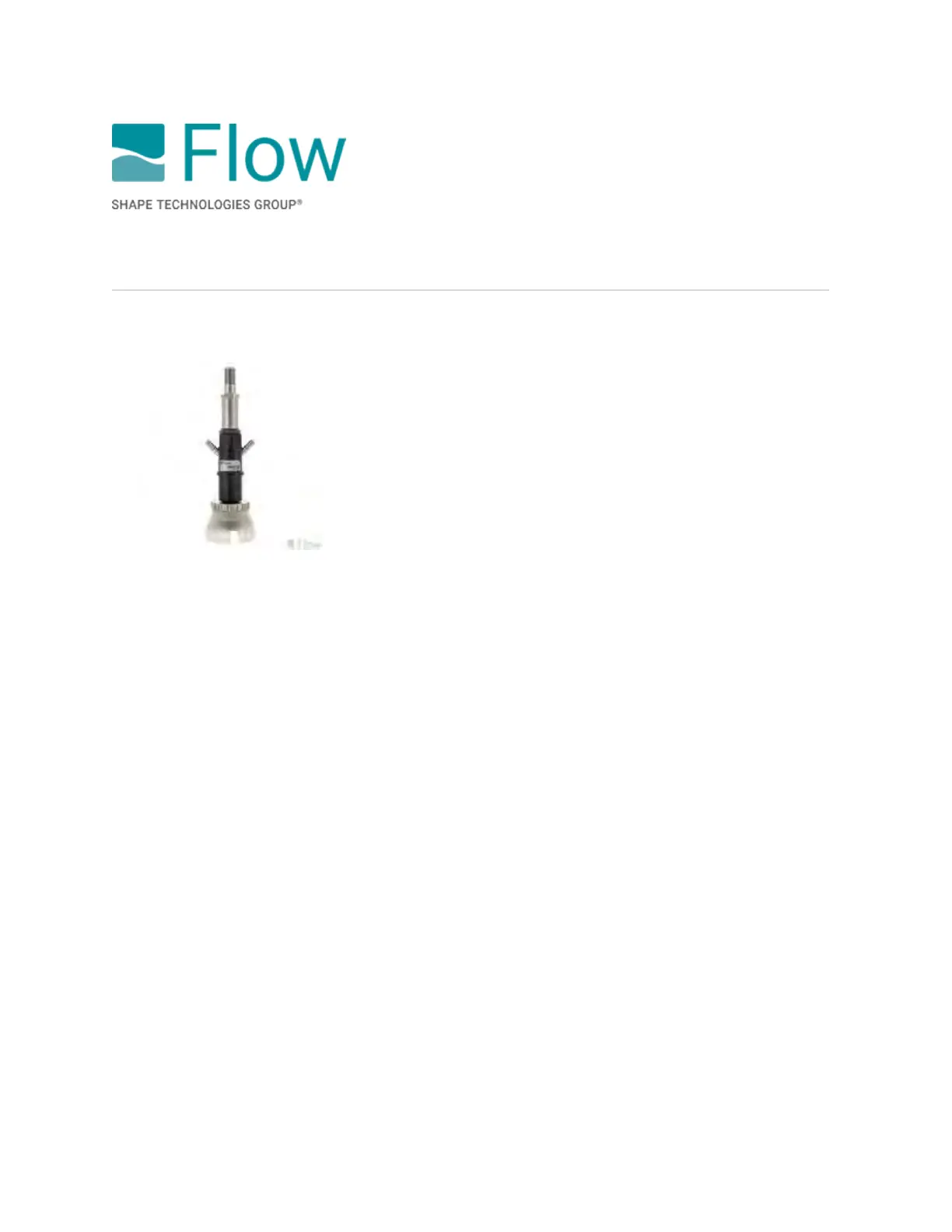

Cutting head assembly · 041136-1
Description
Abrasive cutting head assembly. Does not include mixing tube or orifice.
Maximum operating pressure
6000 bar (87,000 psi)
Where used
Mach 500 …………… Standard or Dynamic Waterjet
Mach 300 …………… Standard or Dynamic Waterjet
Mach 200 …………… Standard Waterjet
Mach 100 …………… Standard Waterjet
Flow Parts for cutting head
A–M
Blast disk …………… 711933-1
Collet …………… 710806-1
Mixing chamber …………… 041138-1
Mixing chamber cap …………… A-11080
Mixing tube · DELTA NXT Premium …………… 1000003-XX-40
Mixing tube · DELTA Standard …………… 1000001-XX-40
Mixing tube spacer …………… 712265-1
N–Z
Nozzle body …………… 041137-1
Nozzle nut …………… 711589-1
O-ring …………… A-15034-1
Orifice · Diamond …………… 015849-XX
Orifice · Ruby (60K pumps only) ……………041759-XX
Spray shield …………… 040411-1
V-ring seal …………… A-22752-11
