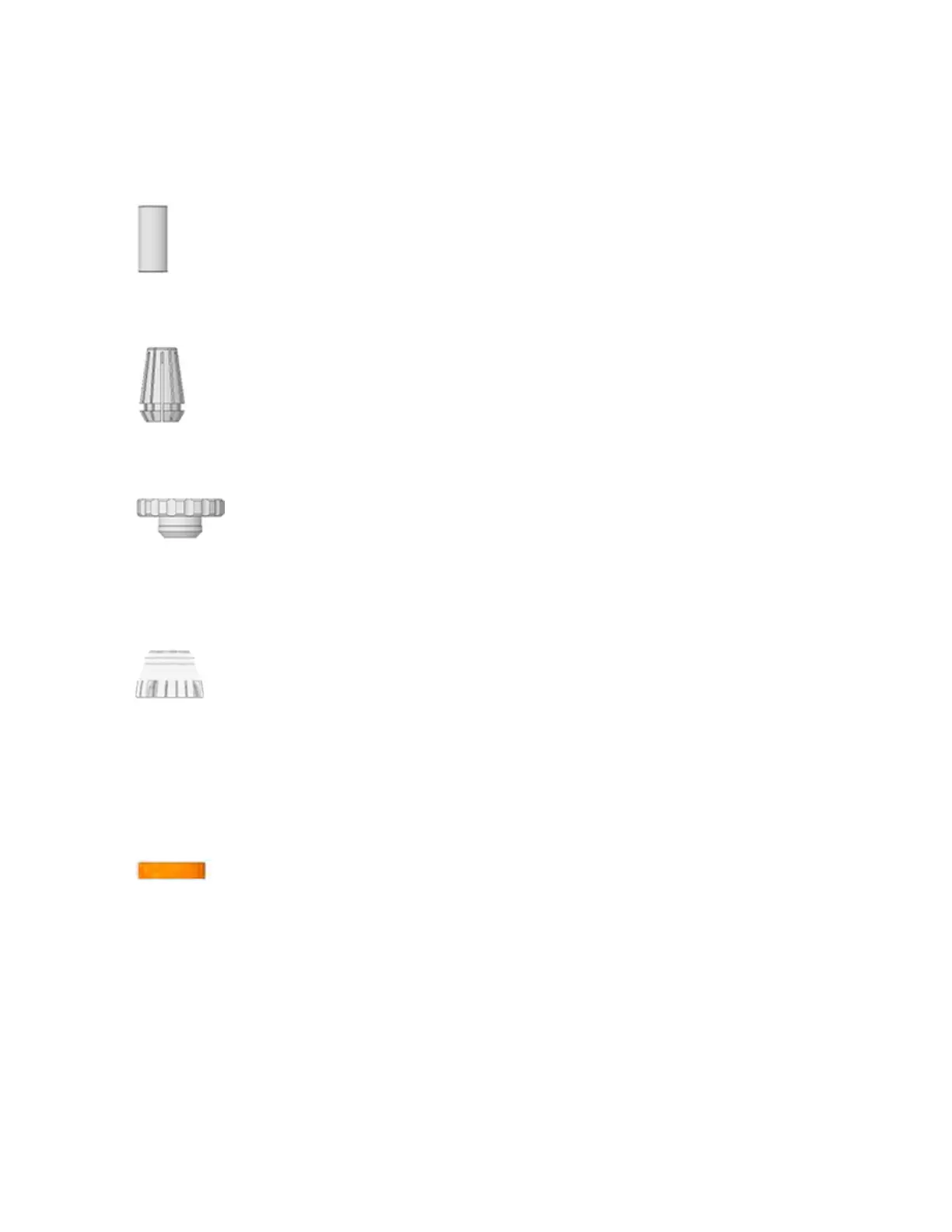

Mixing tube spacer
The mixing tube spacer maintains tool length by setting the proper distance of the mixing tube inside
the mixing chamber.
Collet
The collet aligns the mixing tube with the orifice and locks the mixing tube in place.
Nozzle nut
The nozzle nut holds the mixing tube, collet, and mixing tube spacer inside the mixing chamber.
Spray shield
The flexible spray shield snaps into the nozzle nut, and surrounds the mixing tube to help contain jet
spray during piercing. The cutting head is designed to be used with a spray shield—do not operate
without the spray shield in place.
To replace the spray shield, slip it over the slight step on the nozzle nut and then slide the spray
shield over the mixing tube. Slide the blast disk over the mixing tube; press into the center of the
spray shield.
Blast disk
A wear-resistant polyurethane blast disk in the center of the spray shield absorbs most of the jet's
energy, and helps to extend the life of the spray shield.
