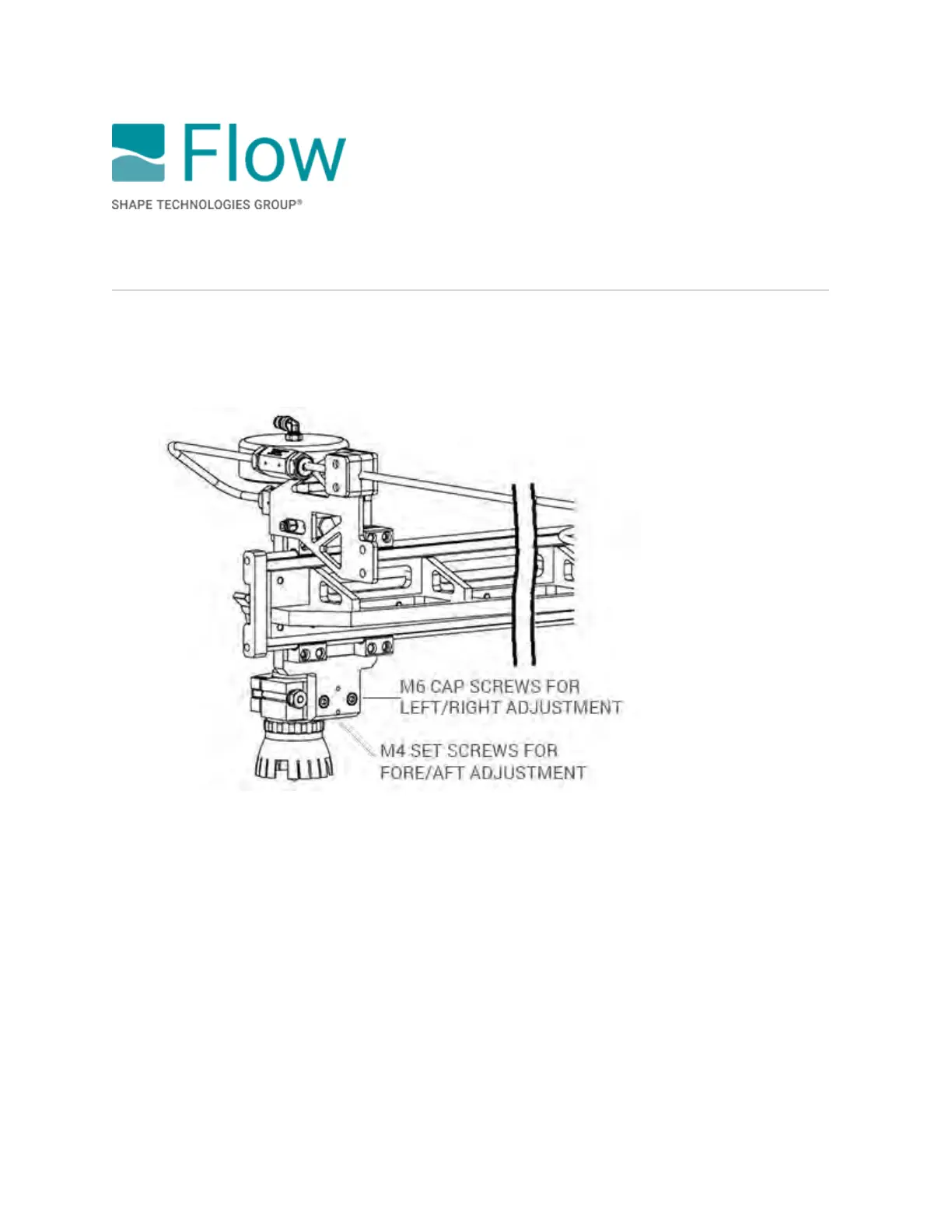

Cutting head vertical adjustment
Periodically, you may have to adjust the cutting head so that it—and the waterjet stream—are exactly
vertical. Use the four screws that hold the cutting head clamp to the bracket on the back – two M6 cap
screws have clearance for adjusting the angle left/right and two M4 set screws adjust the angle fore/aft.
