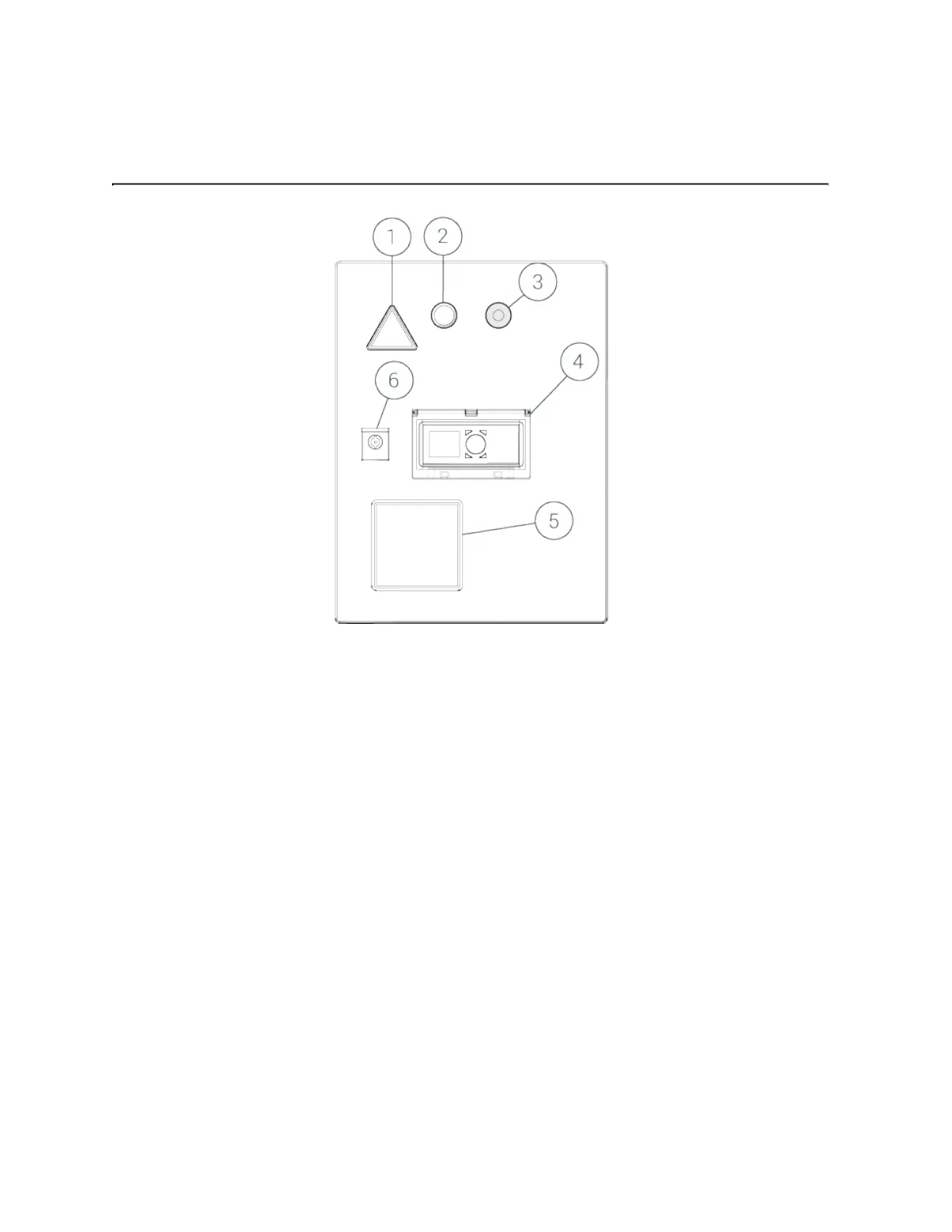

Control cabinet
1 Electrical hazard warning label
Indicates there is a risk of electrical shock.
2 Yellow warning indicator
Identifies specific conditions pertinent to operation. See Understand the warning indicators/audible
signal article.
3 Audible signal
Identifies specific conditions pertinent to operation. See Understand the warning indicators/audible
signal article.
4 Display panel
See Using the display panel during operation article.
5 CE label
6 Panel lock
The PLC and terminal strip are located behind the panel lock. Keep this panel closed and locked at
all times.
7 Power switch (not shown)
When the power switch is disengaged, no pressure is supplied to the vessel and PV1 stays closed.
