11. Move the vessel and the wooden blocking away from the pinch valve.
12. Remove the gasket from between the vessel and the pinch valve housing. Clean the gasket
with a lint-free rag, and then set it aside.

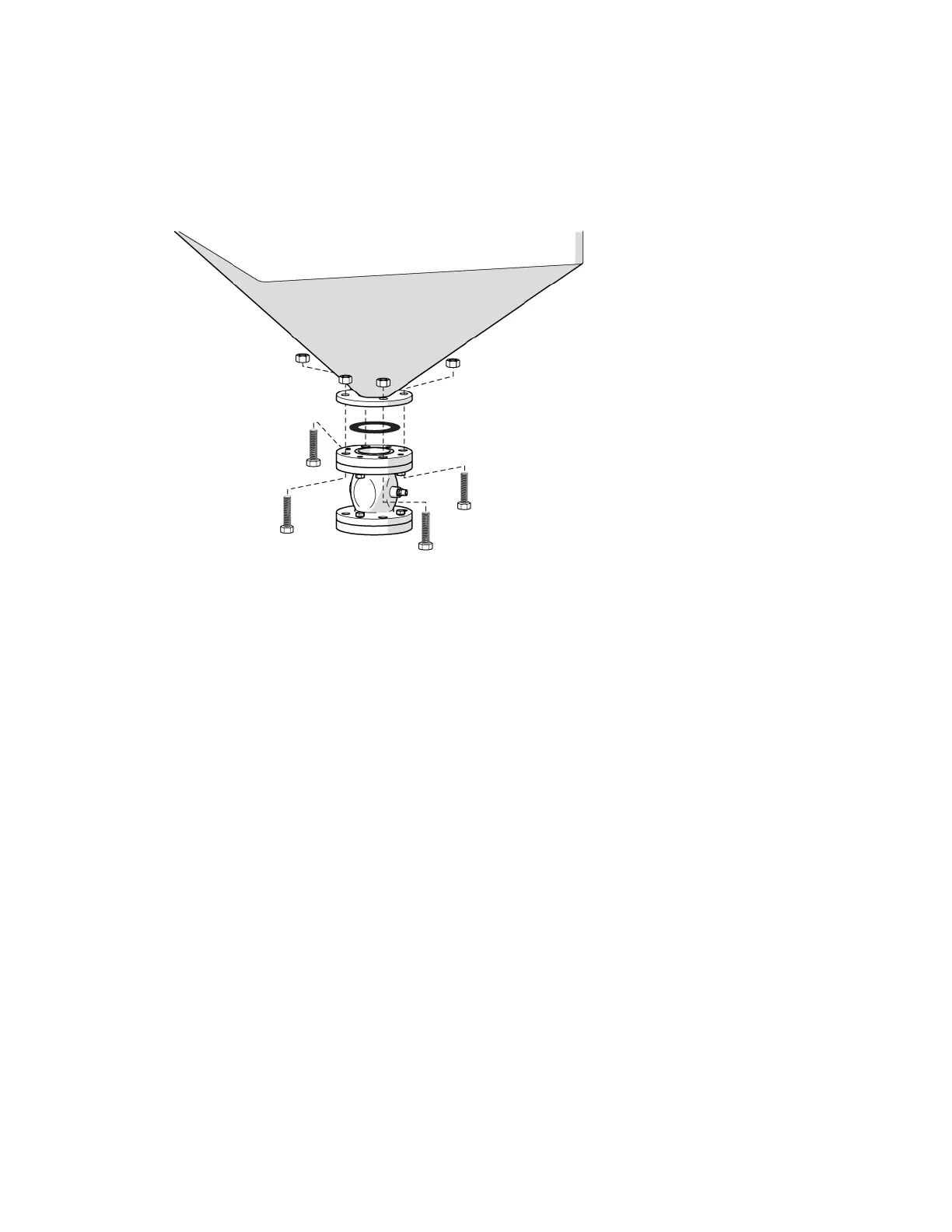

13. Remove the M16 hex screws and nuts, and then remove the pinch valve.
14. Remove the gasket. Clean the gasket with a lint-free rag, and then set the gasket aside.
© 2021 Flow International Corp.
Retrieved from Flow KB on April 14, 2021 PST
Ancillary option: PASER CF900 Abrasive Delivery System
