27
Connections, switches and system add-ons

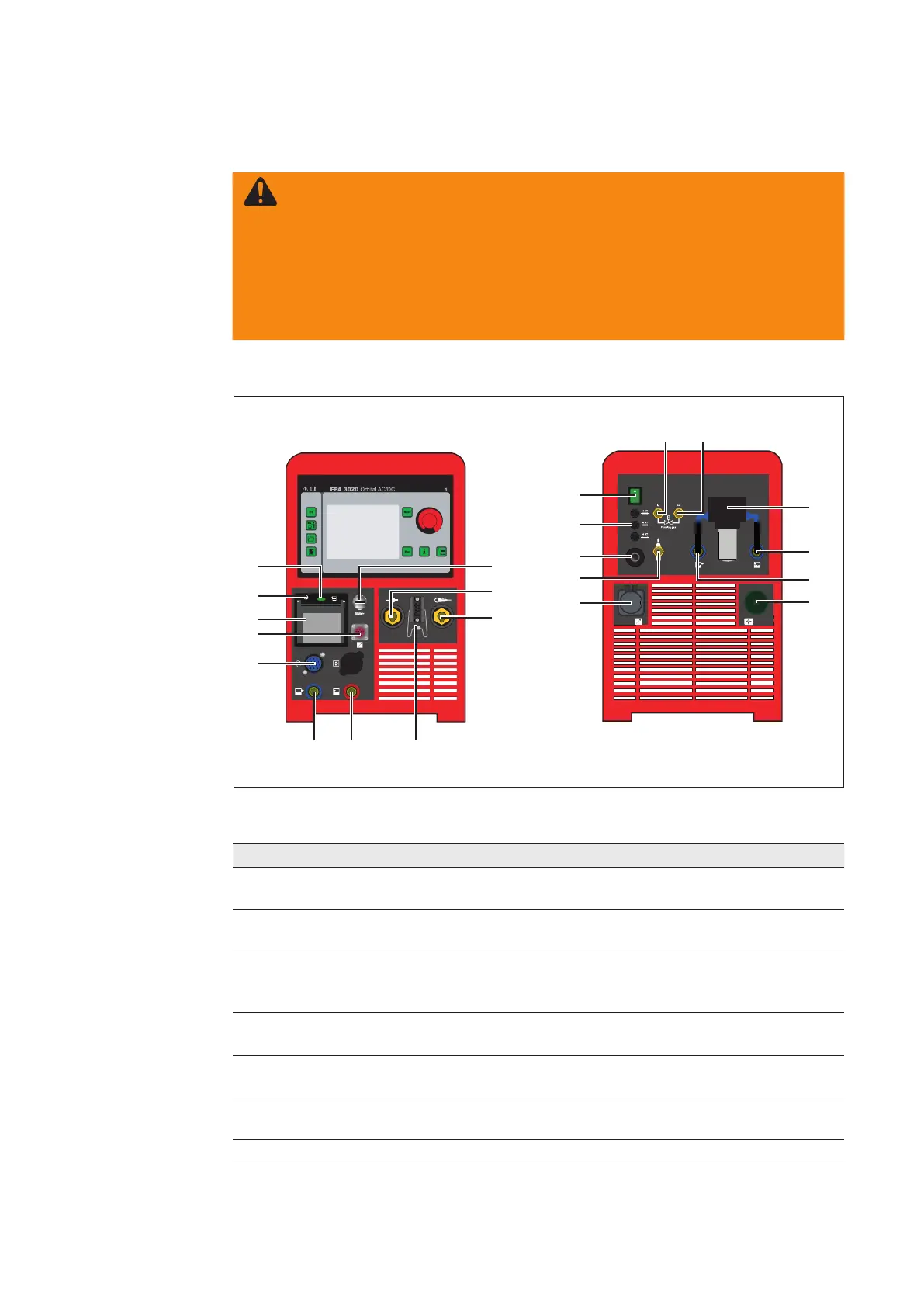

Connections and switches on the FPA 3020 power source
WARNING!
Operating the equipment incorrectly can cause serious injury and
damage
Do not use the functions described here until you have read and completely
understood all of the following documents:
- These operating instructions
- all operating instructions for the system components, especially the
“Safety rules”
Safety
Power source
FPA 3020
Nr. Function
(1) Orbital welding gun connection socket
(-) current socket with bayonet latch, also for a standard TIG welding torch
(2) Earthing (grounding) cable connection
(+) current socket with bayonet latch
(3) USB port
for saving and loading individual welding programs or all power source data to or
from a USB stick
(4) Paper feed key
for the integral printer
(5) “Printer ready” indicator
indicates when the printer is ready.
(6) Printer
for documenting relevant process parameters and processes
(7) Remote control connection
Rear view
Front view
(1)
(2)
(3)
(6)
(5)
(4)
(7)
(8)
(9) (10) (11)
(14)
(12)
(18)
(16)
(20)
(22)
(21)
(13)
(15)
(19)
(17)
