Fronius TPS/i Push - System Configurations; Conventional Robot Configurations

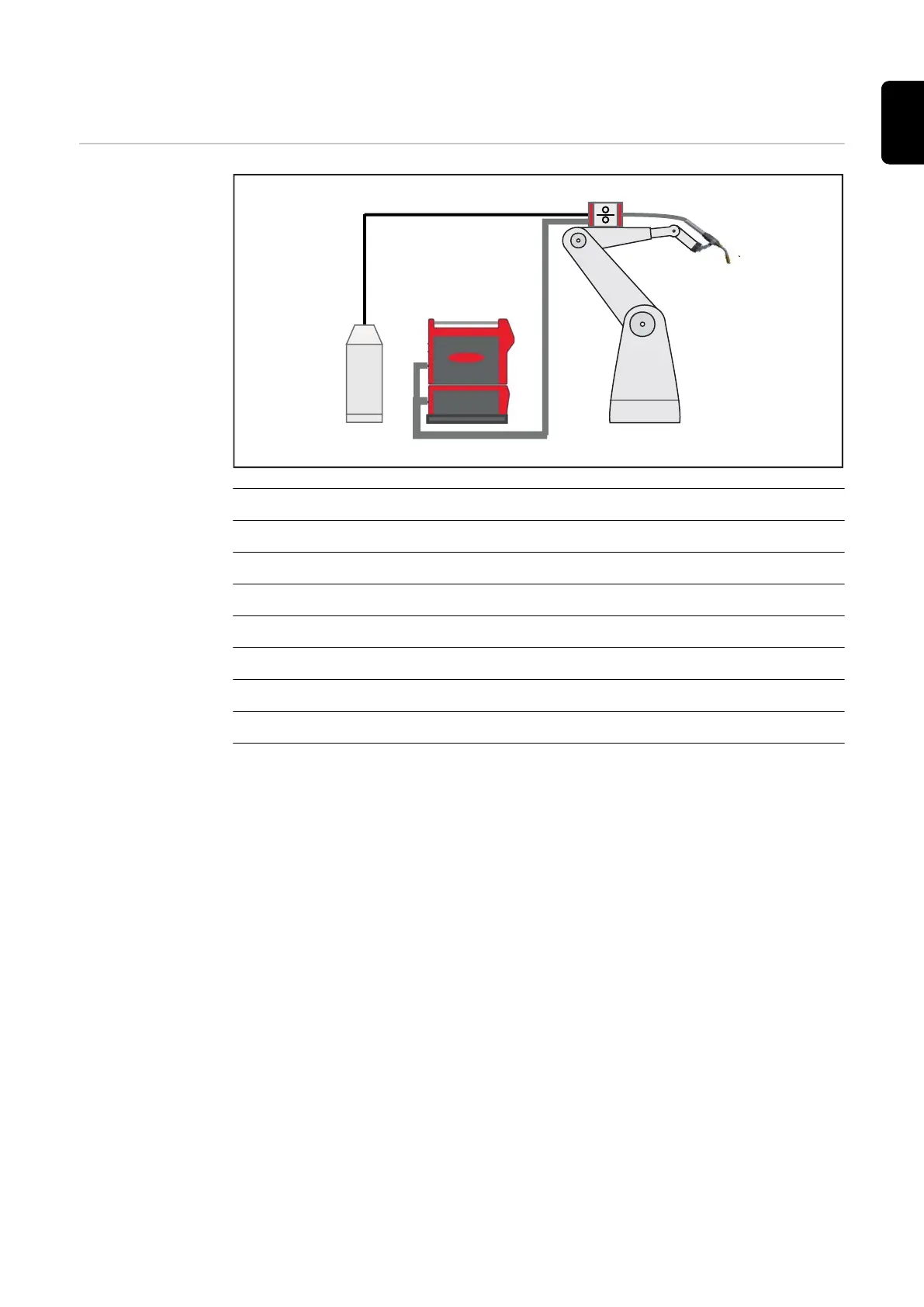

System configurations - conventional robot
Push with wire
drum
(1) *
(2)
(3)
(4)
(5)
(6)
(7) **
(8)
(8
(1) Wirefeeding hose with inner liner
(2) TPSi power source
(3) CU cooling unit
(4) Upright console
(5) HP interconnecting hosepack
(6) Wirefeeder WF 15i R / WF 25i R / WF 30i R
(7) MHP /i R torch hosepack
(8) MTB /i R robot welding torch
Maximum wirefeed length:
max. 8 m between wire drum and wirefeeder
(max. 10 m with PowerLiner)
Possible wire diameters:
0.8 - 2.0 mm
Welding process:
Standard, Pulse, LSC, PMC
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
