CrashBox /i
General remarks

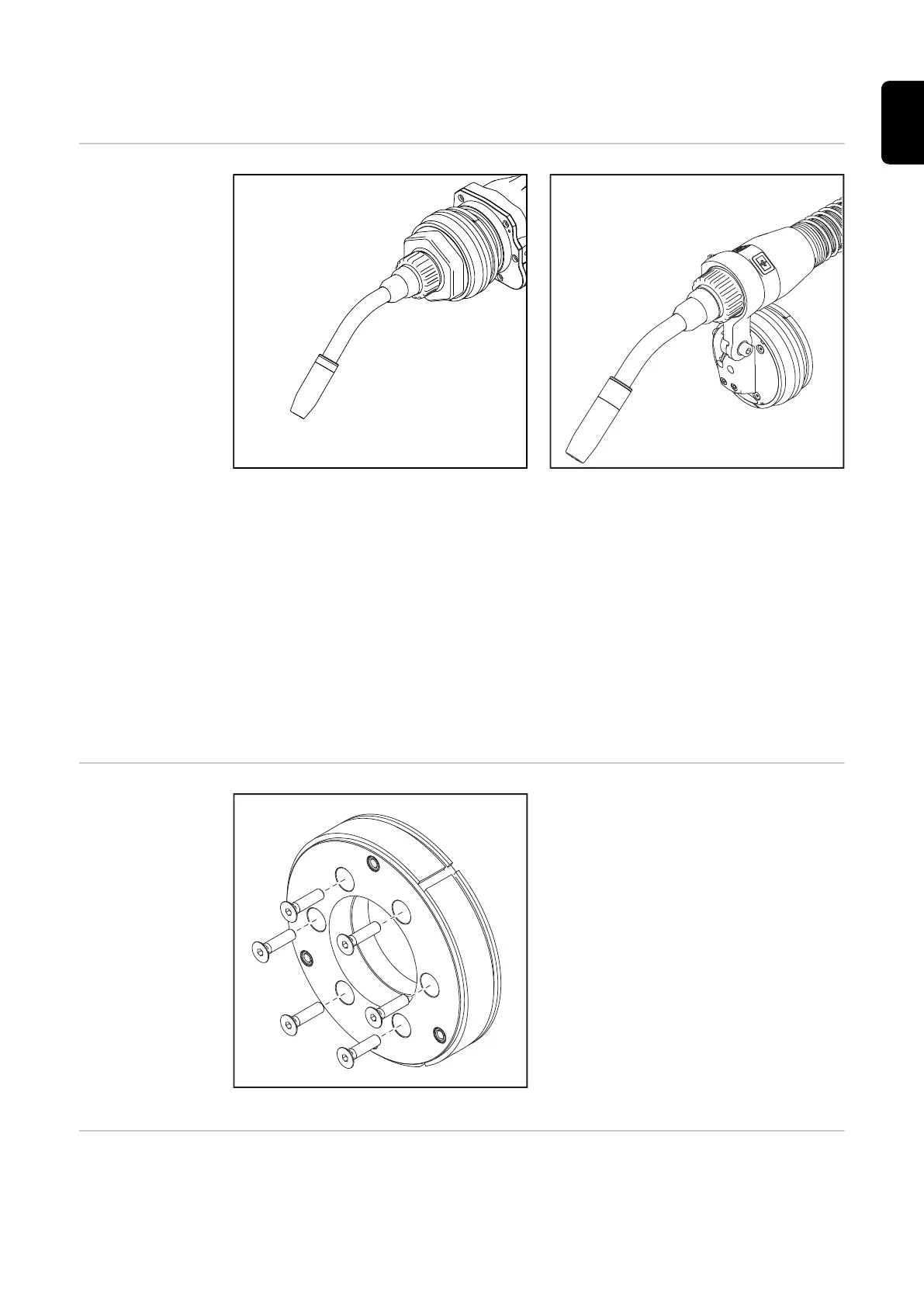

CrashBox /i PAP fitted to robot arm CrashBox /i fitted to robot arm with clamp system
The CrashBox /i is a protection device for the torch body, the drive unit, the wire brake
and the torch body coupling. In the event of a collision, the CrashBox sends a signal to
the robot control, which stops the robot immediately. The torch holder on the CrashBox
protects the welding torch and the system components fitted from damage should a colli-
sion occur.
The clamp system is used for holding gas-cooled and water-cooled robot welding
torches. With torch body curvatures of 22°, 36° and 45°, the clamp system positions the
welding torch in such a way that the TCP is in the 6th axis or at a 45° angle to the 6th
axis, depending on the torque angle gauge.
A robot-specific, isolated robot flange is required for fitting the CrashBox /i.
Also required for
installation
Depending on the particular robot:
- 1 x robot flange with screws
Robot flange as per price list
Observe torques:
Max. tightening torque for screws of
strength class 8.8
M4 3.3 Nm / 2.43 lb-ft
M5 5.0 Nm / 3.69 lb-ft
M6 6.0 Nm / 4.43 lb-ft
M8 27.3 Nm / 20.14 lb-ft
M10 54 Nm / 39.83 lb-ft
M12 93 Nm / 68.60 lb-ft
Device concept The CrashBox /i is designed specifically for fitting to the robot arm and for holding gas-
cooled and water-cooled robot hosepacks and robot drive units. For PAP systems, the
torch hosepack runs through the CrashBox and then through the robot arm. In conven-
39
EN
