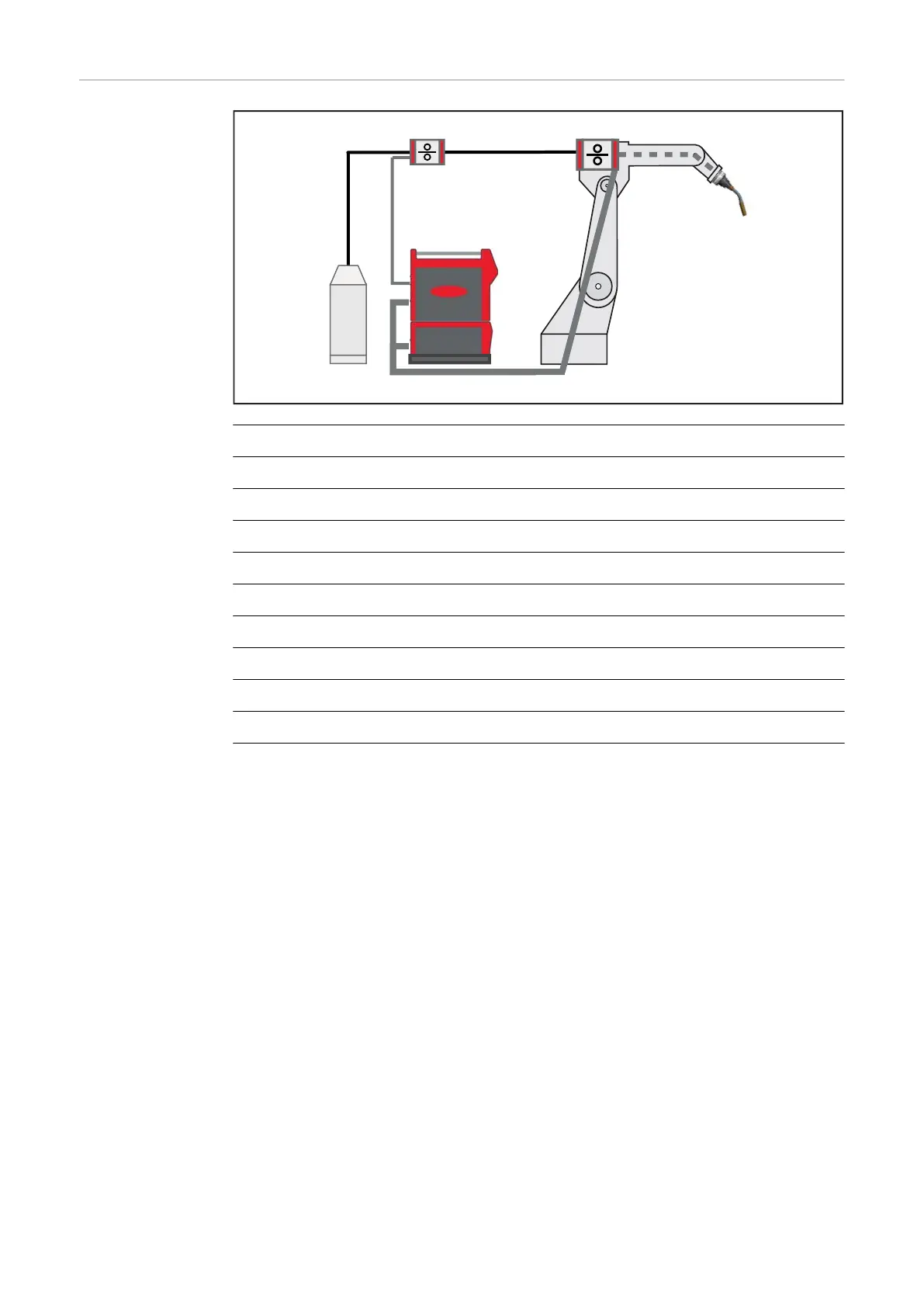

Push with 4-roller
unreeling
wirefeeder and
wire drum
(1) * (2)
(3)
(7)
(8)
(1) *
(9) **
(4)
(5)
(6)
(10)
(1) Wirefeeding hose with inner liner
(2) SpeedNet cable COM
(3) Unreeling wirefeeder WV 25i Reel 4R
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) Wirefeeder WF 15i R / WF 25i R / WF 30i R
(9) MHP /i R torch hosepack
(10) MTB /i R robot welding torch
Maximum wirefeed length:
- max. 20 m between wirefeeder and unreeling wirefeeder
(max. 30 m with PowerLiner)
- max. 8 m between wire drum and unreeling wirefeeder
(max. 10 m with PowerLiner)
Possible wire diameters:
0.8 - 2.0 mm
Welding process:
Standard, Pulse, LSC, PMC
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
