Fronius TPS/i Push User Manual

WF 15i / 25i / 30i R PAP
WF 15i R PAP,
WF 30i R PAP

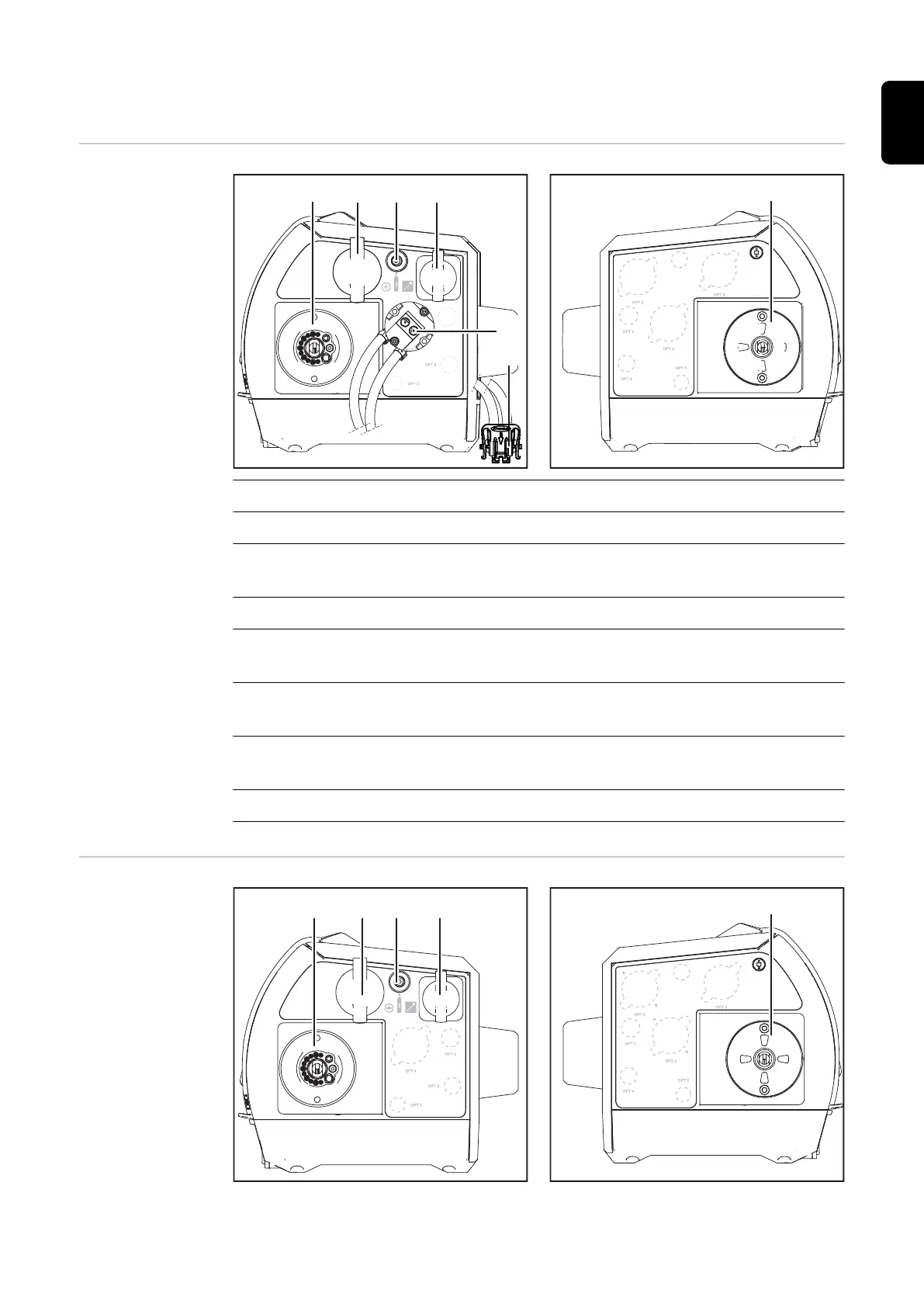

connections
(4)
(3)
(2)
(1)
(5)
(6)
(7)
No. Function
(1) Welding torch connection
(2) (+) current socket
For connecting the power cable from the interconnecting hosepack
(3) Shielding gas connection
(4) SpeedNet connection
For connecting the SpeedNet cable from the interconnecting hosepack
(5) Coolant connection
For connecting the coolant connection socket from the interconnecting hosepack
(6) Coolant connection socket
For connecting to the torch hosepack
(7) Wire infeed
WF 25i R PAP
connections
(3) (4)
(2)(1)
(5)
