tional robot systems the torch hosepack runs along the robot arm and is attached to the
clamp. In the event of a crash, the magnetic coupling smoothly deflects the forces along
a large deflection path.
Application areas The clamp system can be used for the following push robot hosepacks:
- MHP i G / MHP i W TPS /i hosepacks
- MTG/MTW TransSteel hosepacks
Information on
repairing Crash-
Boxes
NOTE!
Only send complete CrashBoxes for repair!
Incomplete CrashBoxes (e.g. without a magnetic ring) cannot be checked in the course
of a repair.

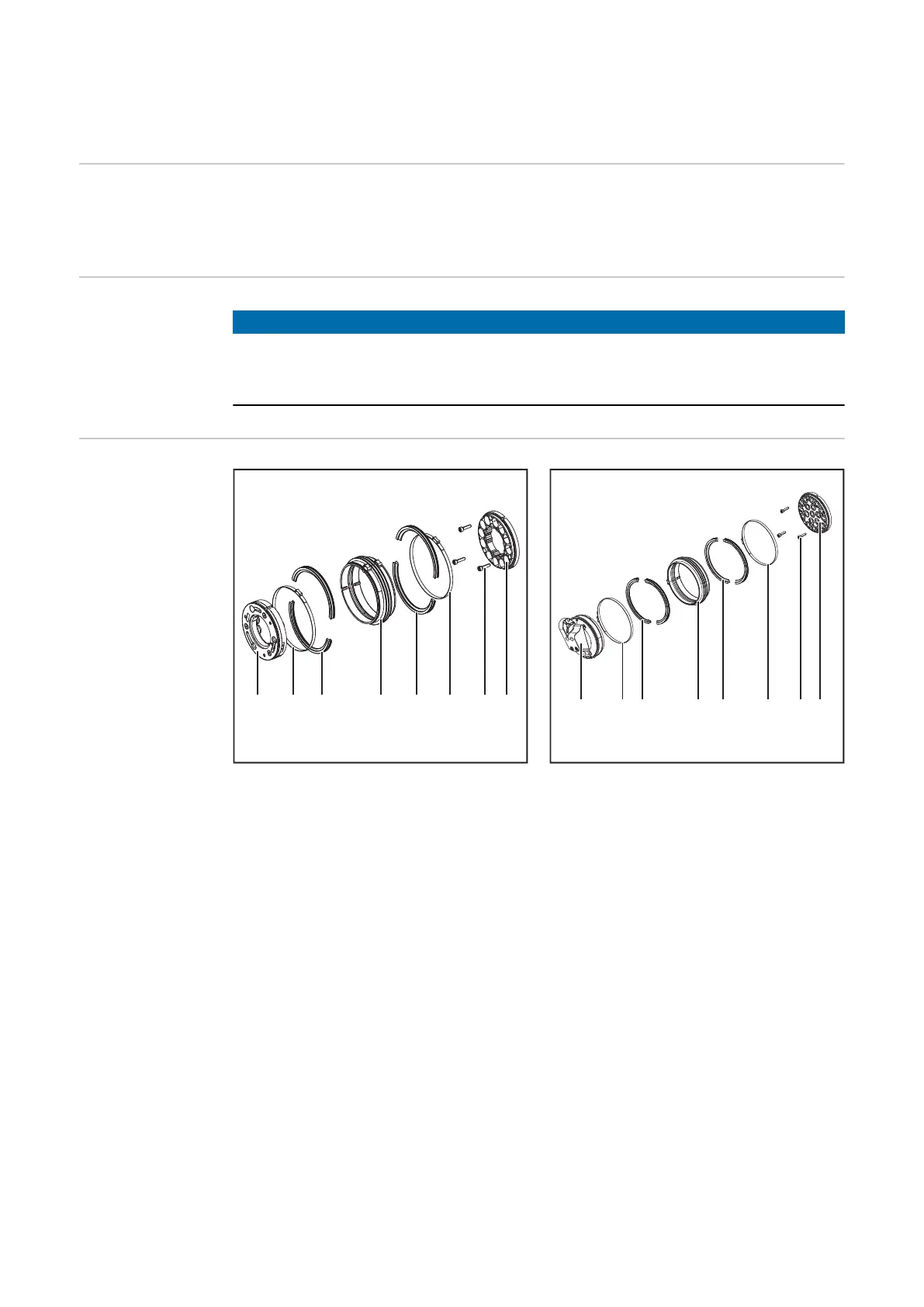

Scope of supply
(1)
(2)
(2)(3) (3)
(4) (5) (6)
CrashBox /i PAP scope of supply
(1) (2)(3) (4) (5)(6)(2)(3)
CrashBox /i Standard scope of supply
(1) CrashBox /i holder
(2) 1-ear clamp *
(3) Locking ring, 2-part *
(4) Bellows
(5) Cheese-head screws, M4 x 16 mm
(6) Magnetic ring
* Delivered fitted to bellows (4)
Do not fit the CrashBox /i holder (1) and magnetic ring (4) together before fitting to the
robot. The components become even more difficult to release due to the strong magnet-
ism.
