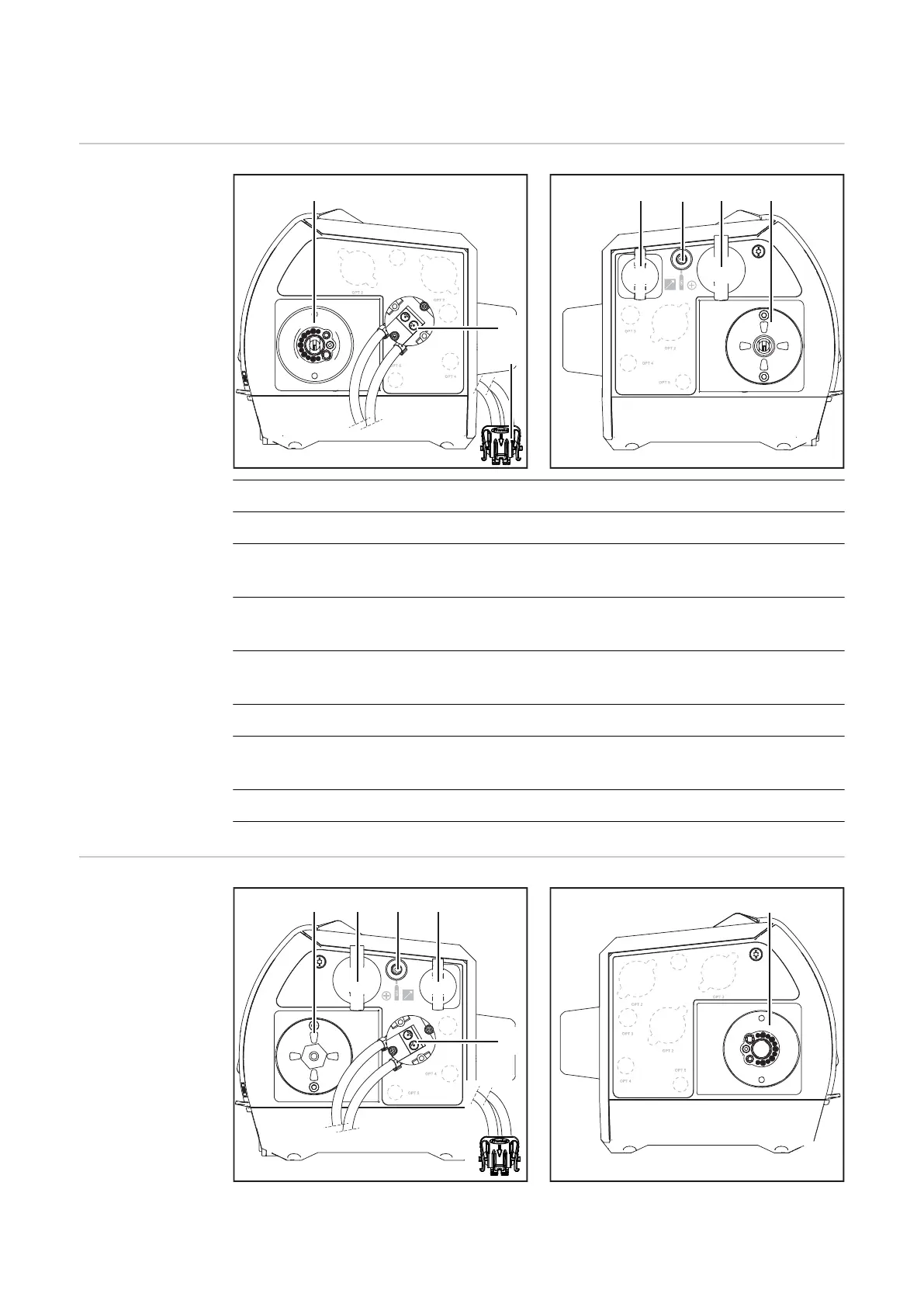

Fronius TPS/i Push User Manual

WF 15i / 25i / 30i R
WF 15i R,
WF 30i R connec-
tions
(1)
(2)
(3)
(7)
(6)
(4)
(5)
No. Function
(1) Welding torch connection
(2) Coolant connection
For connecting the coolant connection socket from the interconnecting hosepack
(3) Coolant connection socket
For connecting to the torch hosepack
(4) SpeedNet connection
For connecting the SpeedNet cable from the interconnecting hosepack
(5) Shielding gas connection
(6) (+) current socket
For connecting the power cable from the interconnecting hosepack
(7) Wire infeed
WF 30i R / L con-
nections
(4)
(3)
(2)(1)
(5)
(6)
(7)
