Fitting the unreeling wirefeeder
Fitting the unreel-
ing wirefeeder
WARNING!
An electric shock can be fatal.
If the power source is connected to the mains supply while the work described below is
being carried out, there is a risk of serious injury and damage.
▶
Only carry out the work described below when the power source mains switch is in
the "O" position and when the power source is disconnected from the mains.

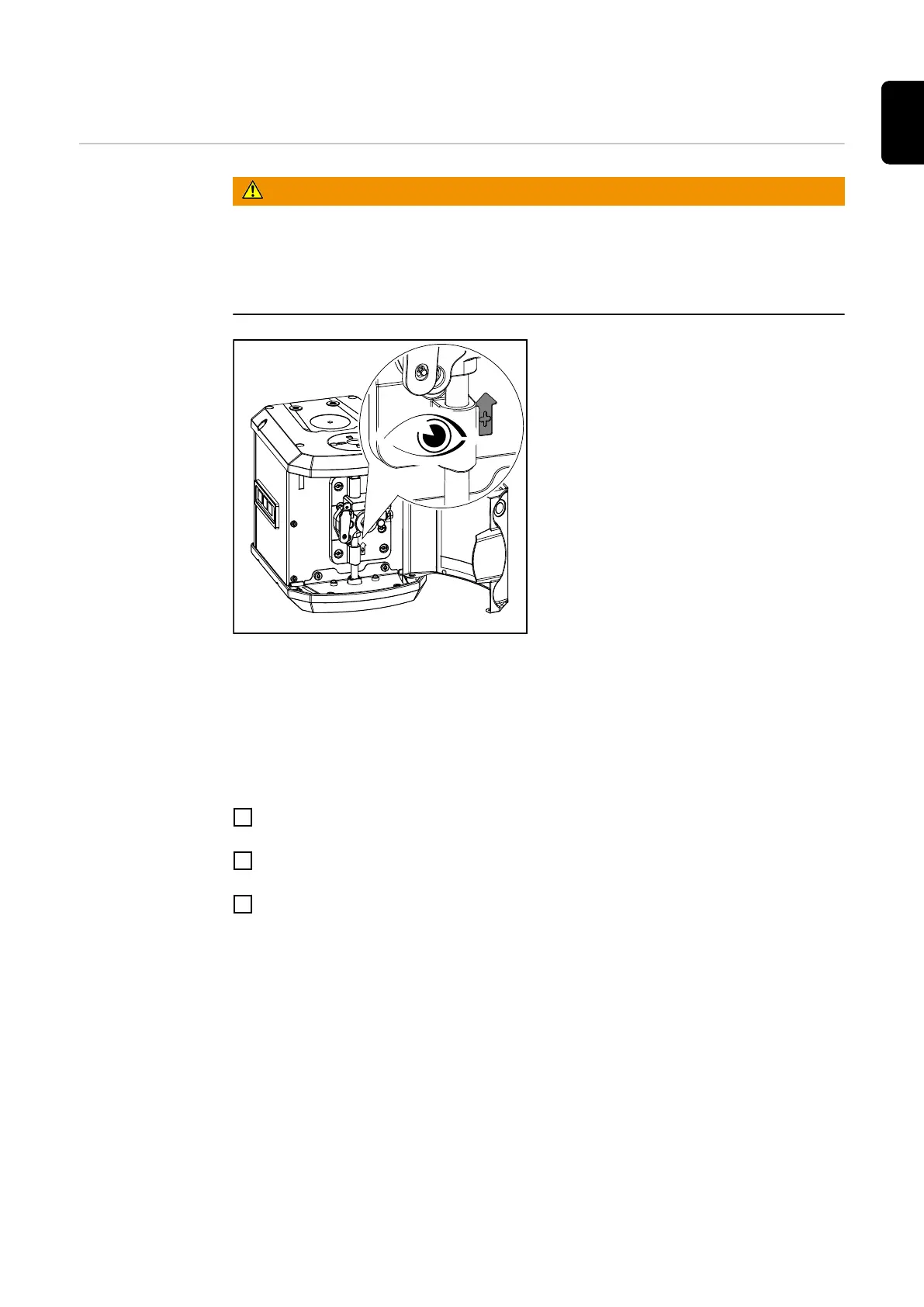

Ensure that the unreeling wirefeeder is fit-
ted in the correct direction. The threading
direction of the wire electrode is marked
with an arrow.
The unreeling wirefeeder is designed exclusively for vertical installation on the following
mounts:
- WF Mounting WALL 4,100,846
- WF Mounting Drum 4,100,845
Operating a 2-roller WF30i REEL R /2R unreeling wirefeeder with a basket-type spool is
not permitted.
1
In accordance with the Installation Instructions, mount the unreeling wirefeeder onto
the wall bracket or the wire drum mount
2
Use the QuickConnect option to connect the wirefeeding hose to the unreeling
wirefeeder
3
Use Fronius SpeedNet to connect the unreeling wirefeeder to the power source in
the welding system
85
EN
