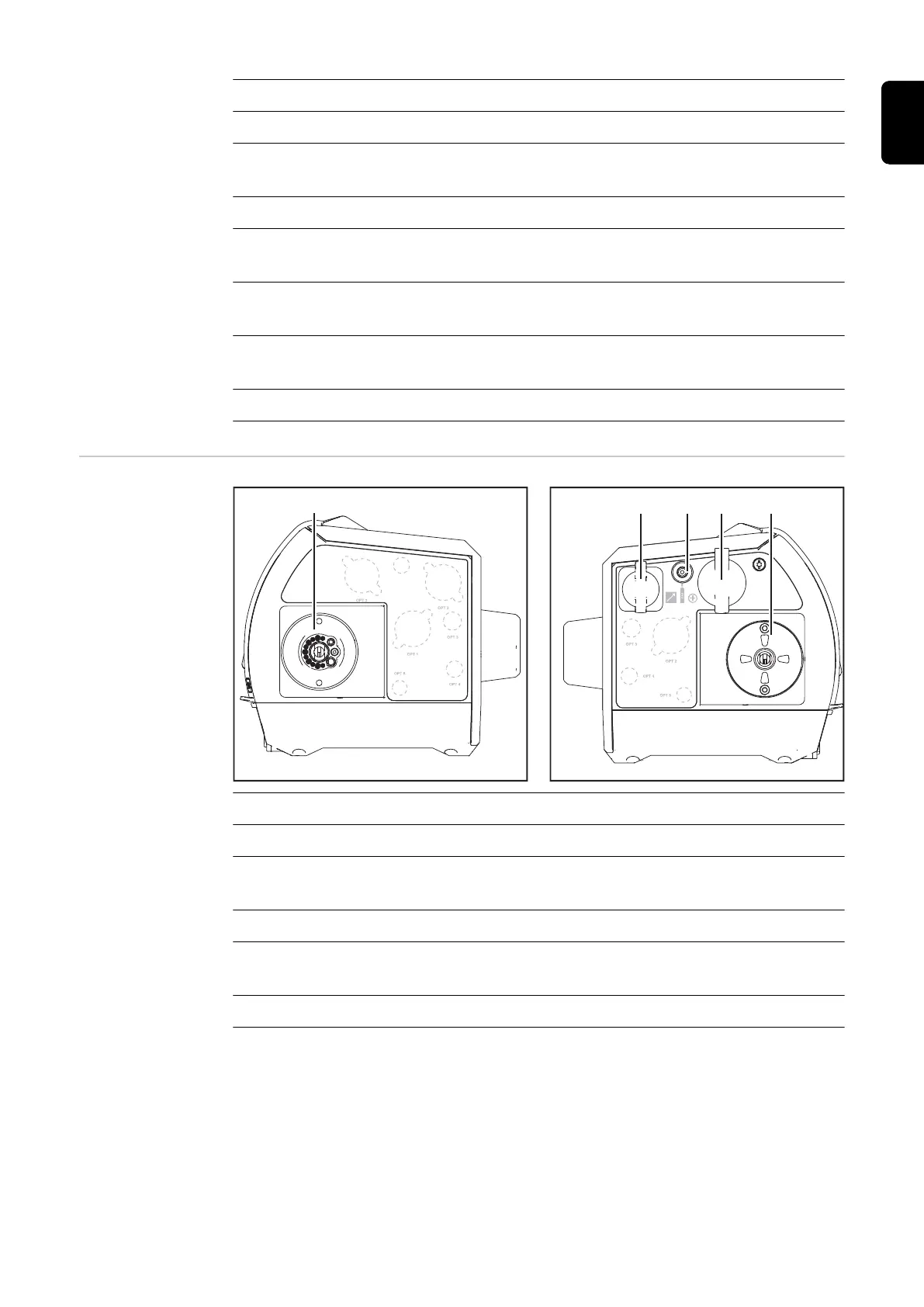

Fronius TPS/i Push User Manual

No. Function
(1) Wire infeed
(2) (+) current socket
For connecting the power cable from the interconnecting hosepack
(3) Shielding gas connection
(4) SpeedNet connection
For connecting the SpeedNet cable from the interconnecting hosepack
(5) Coolant connection socket
For connecting to the torch hosepack
(6) Coolant connection
For connecting the coolant connection socket from the interconnecting hosepack
(7) Welding torch connection
WF 25i R connec-
tions
(1)
(5)
(4)
(2) (3)
No. Function
(1) Welding torch connection
(2) SpeedNet connection
For connecting the SpeedNet cable from the interconnecting hosepack
(3) Shielding gas connection
(4) (+) current socket
For connecting the power cable from the interconnecting hosepack
(5) Wire infeed
