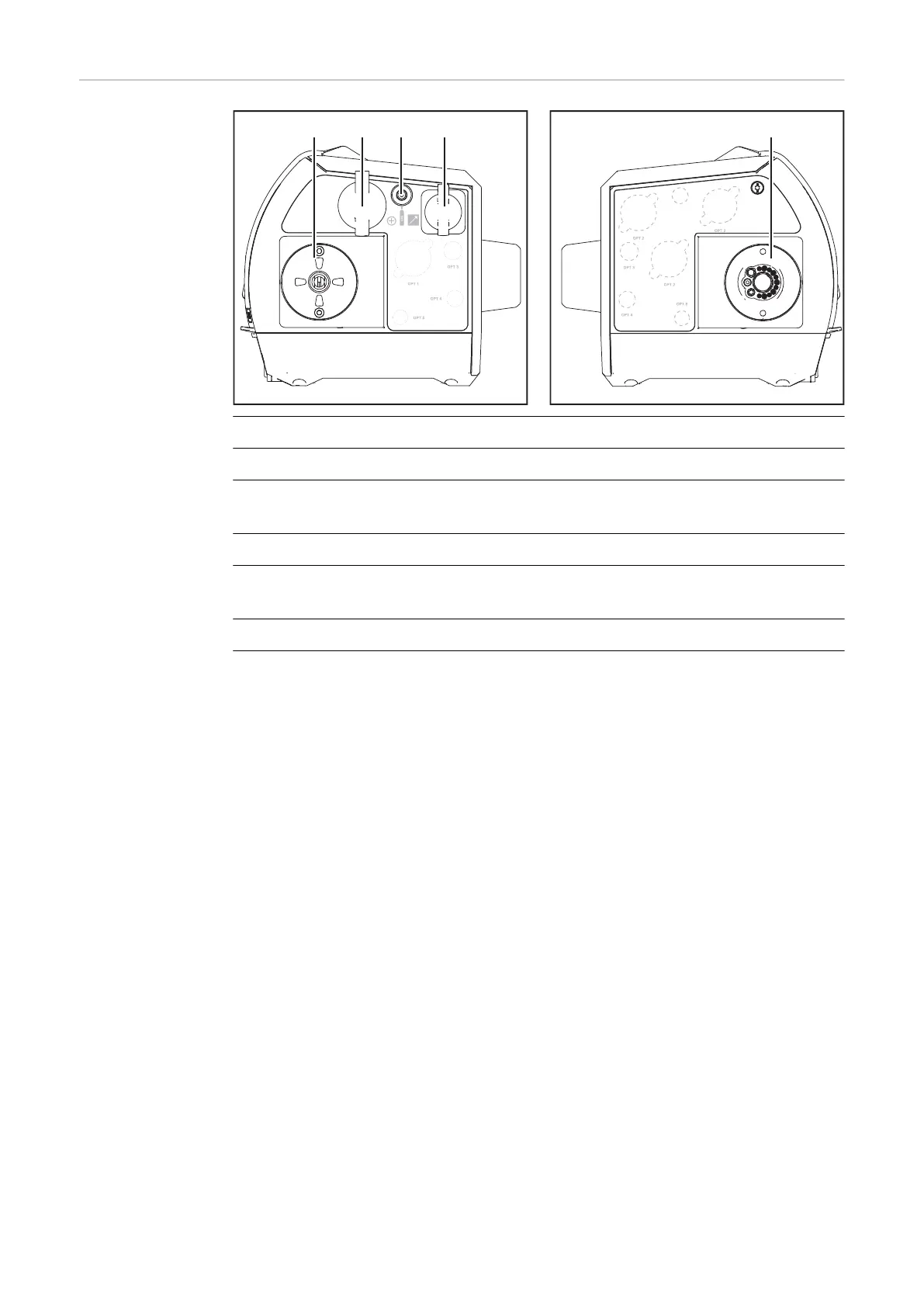

WF 25i R / L con-
nections
(4)
(3)
(2)(1)
(5)
No. Function
(1) Wire infeed
(2) (+) current socket
For connecting the power cable from the interconnecting hosepack
(3) Shielding gas connection
(4) SpeedNet connection
For connecting the SpeedNet cable from the interconnecting hosepack
(5) Welding torch connection
