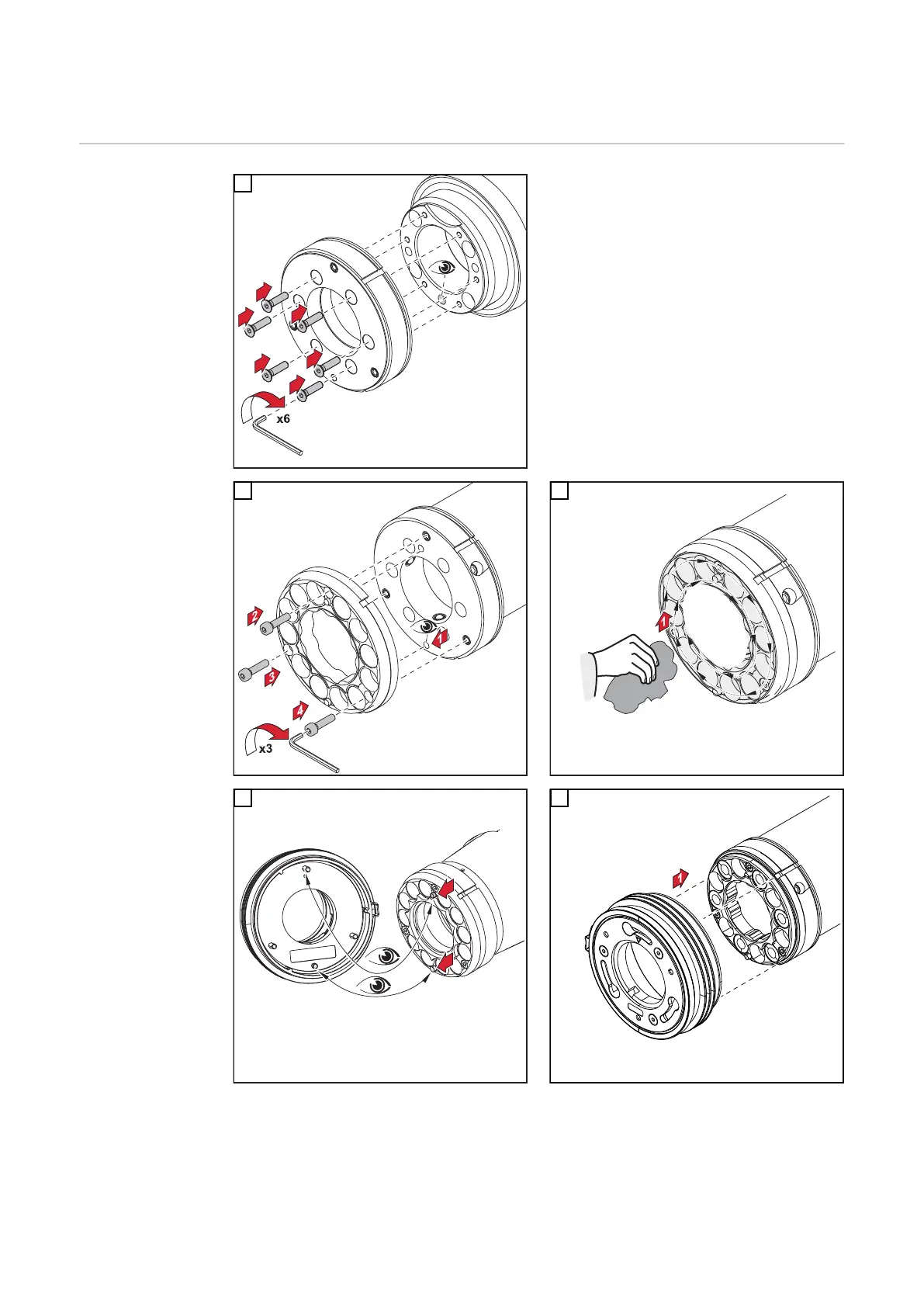

Installing the CrashBox /i PAP on the robot
Installing the
CrashBox /i PAP
on the robot
1
Observe the torques when fitting the robot
flange:
Max. tightening torque for screws of
strength class 8.8
M4 3.3 Nm / 2.43 lb-ft
M5 5.0 Nm / 3.69 lb-ft
M6 6.0 Nm / 4.43 lb-ft
M8 27.3 Nm / 20.14 lb-ft
M10 54 Nm / 39.83 lb-ft
M12 93 Nm / 68.60 lb-ft
3,3 Nm / 2.43 lb-ft
