Fronius TPS/i Push User Manual

CrashBox /i
Technical data,
triggering
torques and
weight/distance
diagram
Item numbers
CrashBox /i 44,0350,3589
CrashBox /i XL 44,0350,3760
CrashBox /i XXL 44,0350,3380
CrashBox /i PAP 44,0350,3663
CrashBox /i PAP XL 44,0350,3759
CrashBox /i PAP XXL 44,0350,0202

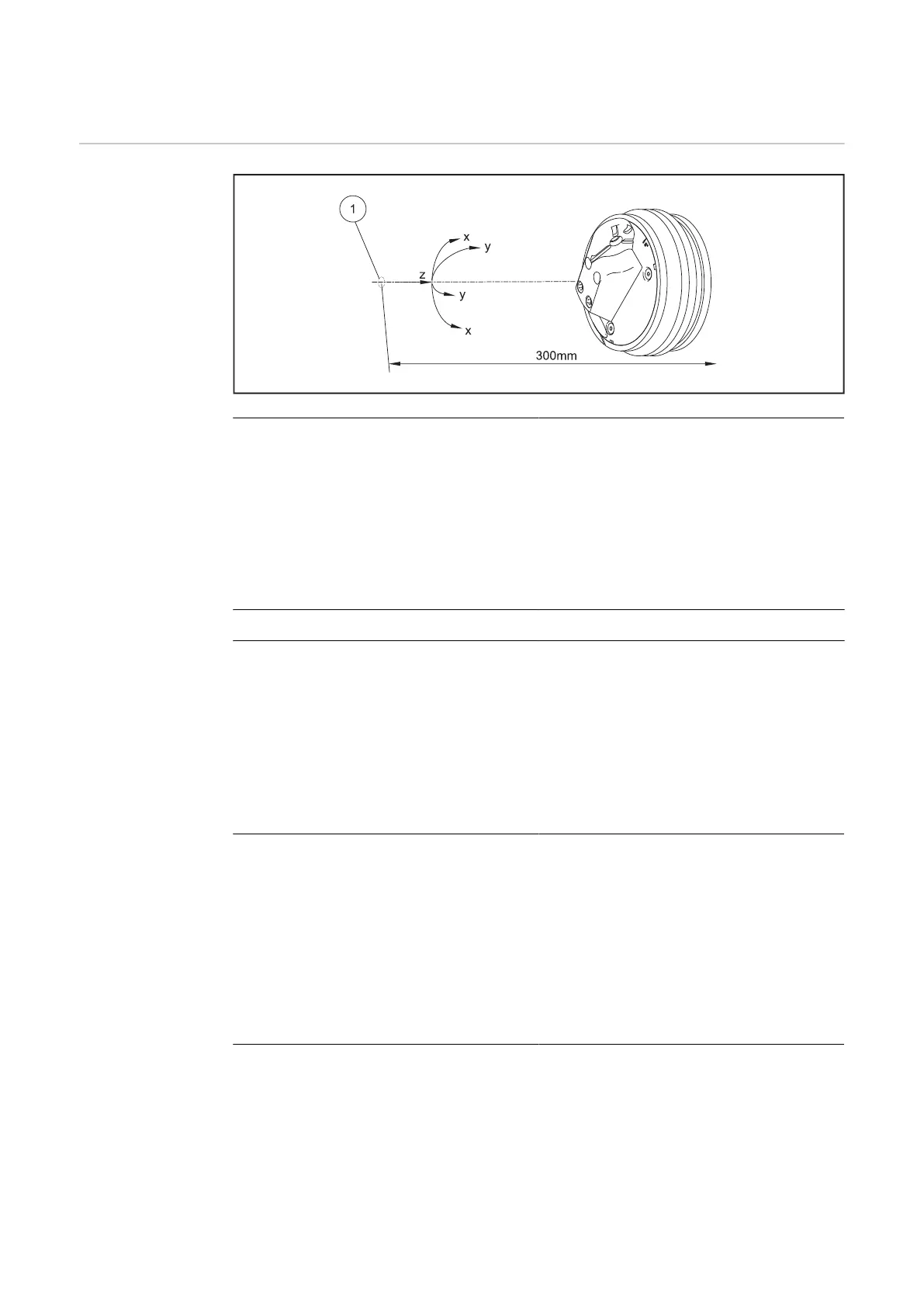

Reset accuracy (1)
± 0.05 mm
a)
Maximum deflection in x/y direction
CrashBox /i ~ 45°
CrashBox /i XL ~ 45°
CrashBox /i XXL ~ 45°
CrashBox /i PAP ~ 30°
CrashBox /i PAP XL ~ 30°
CrashBox /i PAP XXL ~ 30°
Triggering torques in x/y direction
(+/- 10%)
CrashBox /i 21 Nm / 15.49 lb-ft
CrashBox /i XL 42 Nm / 30.98 lb-ft
CrashBox /i XXL 63.1 Nm / 46.54 lb-ft
CrashBox /i PAP 21 Nm / 15.49 lb-ft
CrashBox /i PAP XL 31.5 Nm / 23.23 lb-ft
CrashBox /i PAP XXL 41 Nm / 30.24 lb-ft
Weight
CrashBox /i 1200 g
CrashBox /i XL 1200 g
CrashBox /i XXL 1250 g
CrashBox /i PAP 700 g
CrashBox /i PAP XL 700 g
