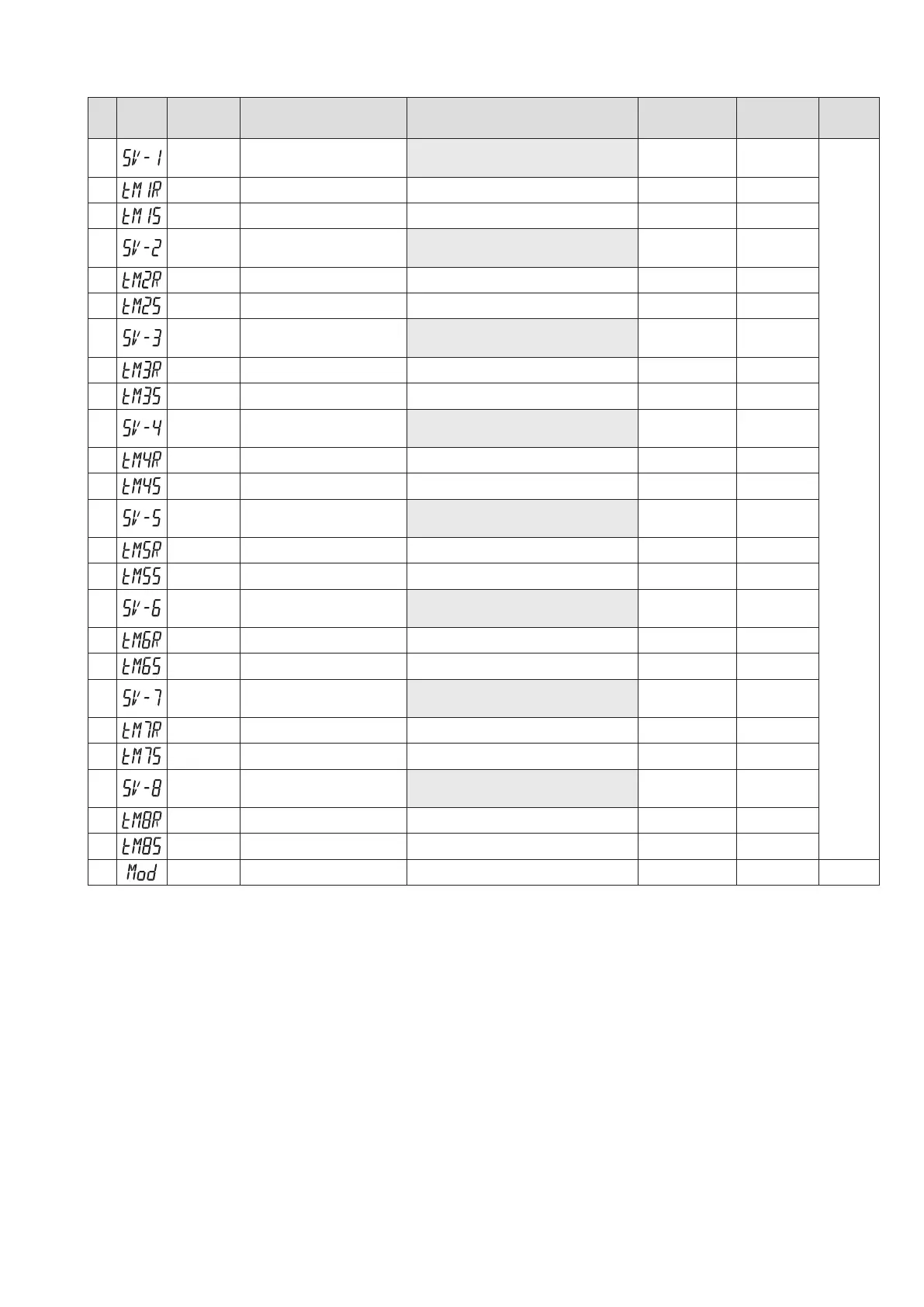

Parameters List
No Display
Parameter
symbol
Parameter name Setting range
Factory
default setting
Parameter
mask DSP
Reference
page
56 SV-1 1st target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP6-8
53
57 tM1R 1st ramp time 0.00 to 99.59 0:00 DSP6-16
58 tM1S 1st soak time 0.00 to 99.59 0:00 DSP6-32
59 SV-2 2nd target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP6-64
60 tM2R 2nd ramp time 0.00 to 99.59 0:00 DSP6-128
61 tM2S 2nd soak time 0.00 to 99.59 0:00 DSP7-1
62 SV-3 3rd target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP7-2
63 tM3R 3rd ramp time 0.00 to 99.59 0:00 DSP7-4
64 tM3S 3rd soak time 0.00 to 99.59 0:00 DSP7-8
65 SV-4 4th target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP7-16
66 tM4R 4th ramp time 0.00 to 99.59 0:00 DSP7-32
67 tM4S 4th soak time 0.00 to 99.59 0:00 DSP7-64
68 SV-5 5th target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP7-128
69 tM5R 5th ramp time 0.00 to 99.59 0:00 DSP8-1
70 tM5S 5th soak time 0.00 to 99.59 0:00 DSP8-2
71 SV-6 6th target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP8-4
72 tM6R 6th ramp time 0.00 to 99.59 0:00 DSP8-8
73 tM6S 6th soak time 0.00 to 99.59 0:00 DSP8-16
74 SV-7 7th target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP8-32
75 tM7R 7th ramp time 0.00 to 99.59 0:00 DSP8-64
76 tM7S 7th soak time 0.00 to 99.59 0:00 DSP8-128
77 SV-8 8th target SV
SV lower limit (SV-L) to
SV upper limit (SV-H) %FS
0 (°C) DSP9-1
78 tM8R 8th ramp time 0.00 to 99.59 0:00 DSP9-2
79 tM8S 8th soak time 0.00 to 99.59 0:00 DSP9-4
80 Mod Ramp soak mode 0 to 15 0 DSP9-8 55
