Fuji Electric Micro-Controller X Socket type User Manual

35

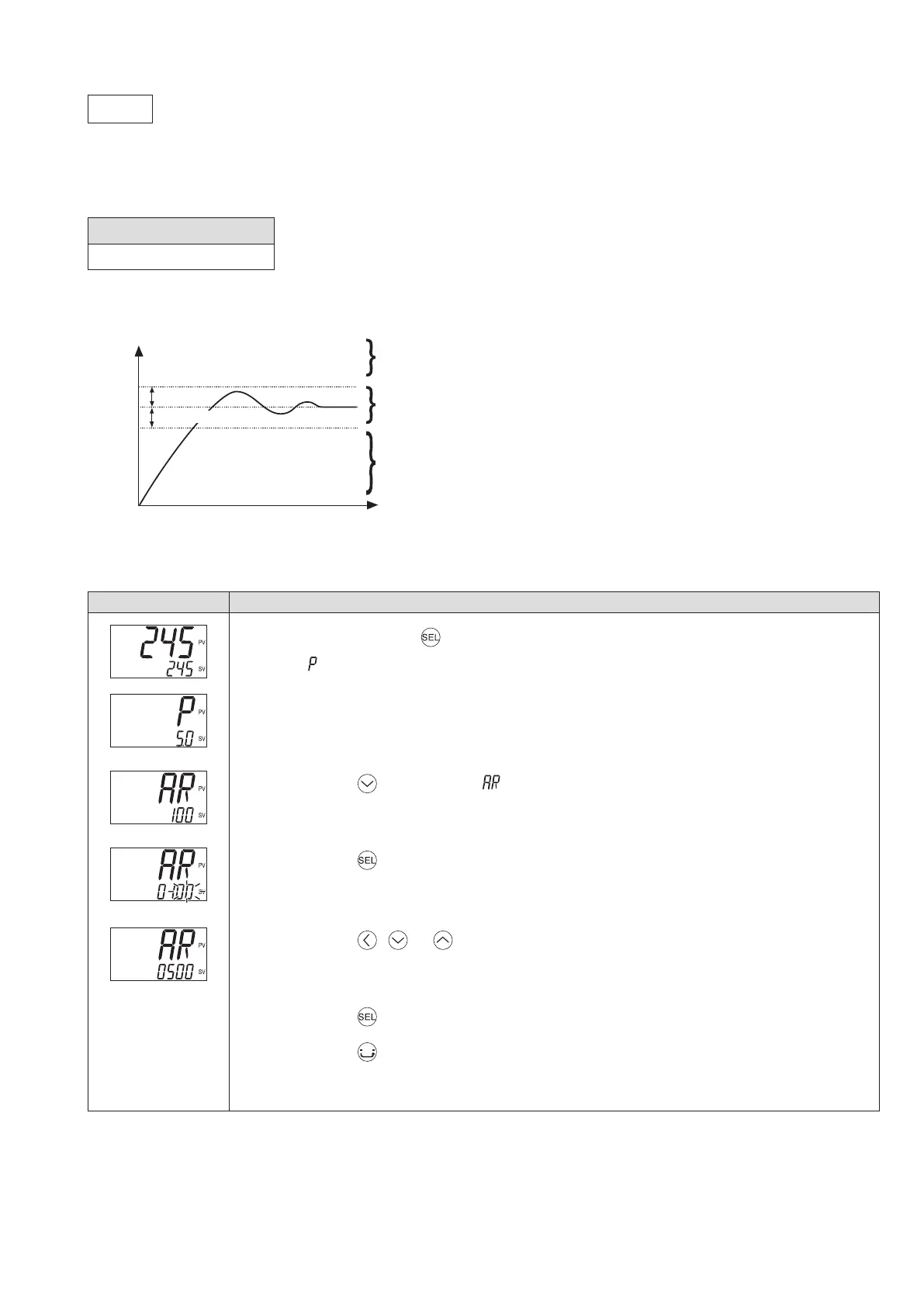

2nd block parameter
AR
Anti-reset windup (037)
[Description] –––––––––––––––––––––––––––––––––––––––––––––––––––––––
Anti-reset windup is a function that limits the range of valid integration to control overshooting.
Setting range
0 to 100%FS

The anti-reset windup function ([AR]) disables the integration when the PV falls outside of the Ar set range that
is centered around SV. It is automatically set to the optimum value when auto-tuning is activated.
PV
SV
AR value
In this zone, the integration
is disabled.
In this zone, the integration
is disabled.
In this zone, the integration
is carried out.
t
AR value
[Setting example] Changing the anti-reset windup to 500°C –––––––––––––––––
Display Operating procedure
1.
Press and hold the key for about three seconds during the SV/PV display.

appears.
2.
Press the key to display .
3.
Press the key.

The setpoint starts blinking.
4.
Press the , or keys to change “ 100 ” to “ 500 .”
5.
Press the key or wait for three seconds to save the change.
6.
Press the key.

The screen returns to the SV/PV display.
