Fuji Electric Micro-Controller X Socket type - [Tm1] [Tm2] Timer 1 Display (007), Timer 2 Display (008)

27
1st block parameter
tM1 tM2
Timer 1 display (007), Timer 2 display (008)
[Description] –––––––––––––––––––––––––––––––––––––––––––––––––––––––
Displays the remaining time of the timer 1 and the timer 2.

The remaining time of the ON/OFF-delay timer is counted down. When the counter shows “ 0 ,” the alarm relay
is closed.

During count-down, if the PV changes to the value of the temperature at which the alarm is set to OFF, the
counter is reset, and the alarm relay is opened.
Related parameters:
• Alarm 1, 2 hysteresis [A1Hy], [A2Hy] (see page 59)
• Delay time 1, 2 [dLy1], [dLy2] (see page 59)
[Setting example] Checking the remaining time on the timer 1 –––––––––––––––

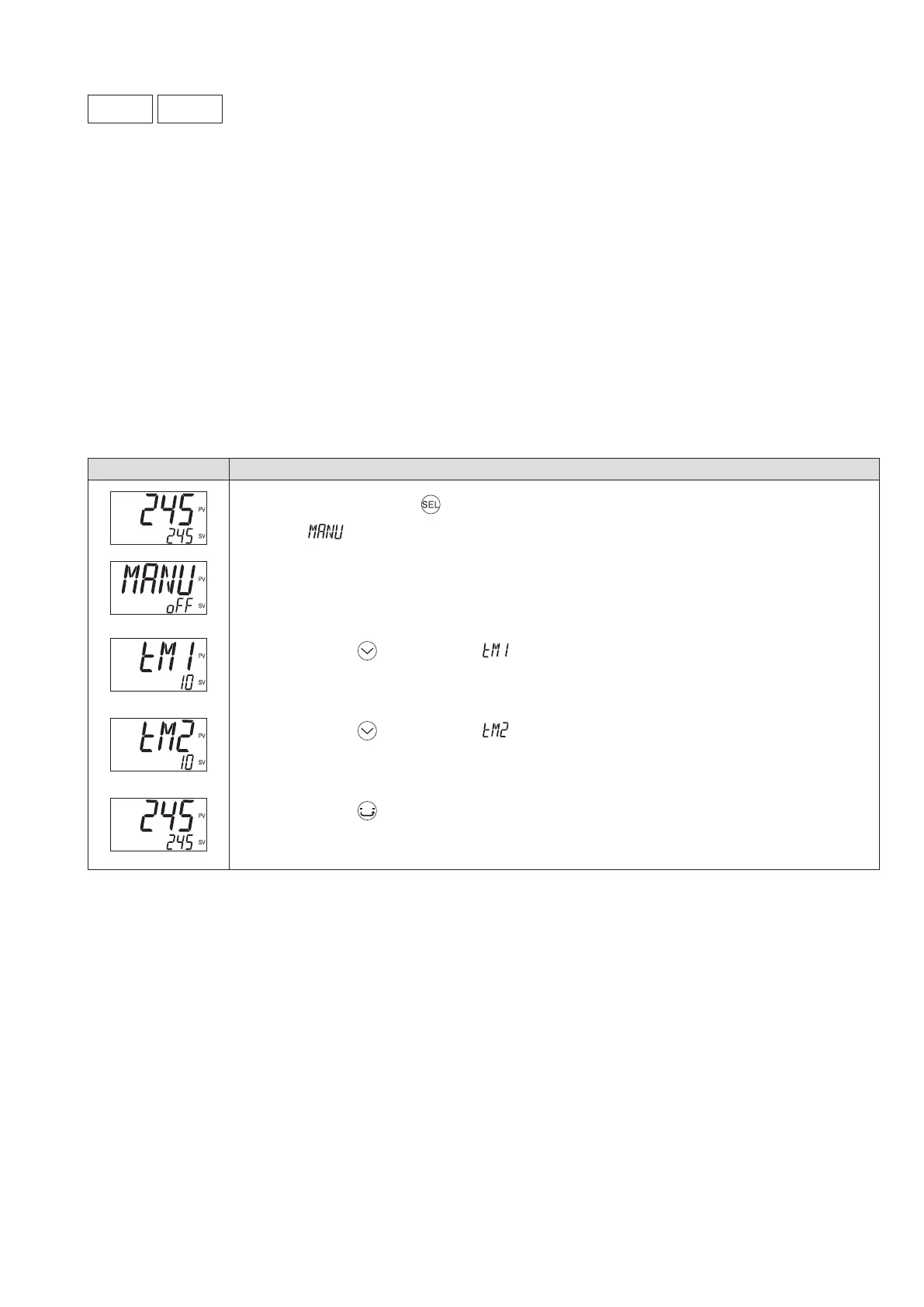

Display Operating procedure
1.
Press and hold the key for about one second during the SV/PV display.

appears.
2.
Press the key to display .

The remaining time on the timer 1 appears.
3.
Press the key to display .

The remaining time on the timer 2 appears.
4.
Press the key.

The screen returns to the SV/PV display.
