Fuji Electric Micro-Controller X Socket type User Manual

53
2nd block parameter
SV-1
to
SV-8
1st target SV to 8th target SV (056 to 077)
tM1R
to
tM8R
1st ramp time to 8th ramp time (057 to 078)
tM1S
to
tM8S
1st soak time to 8th soak time (058 to 079)

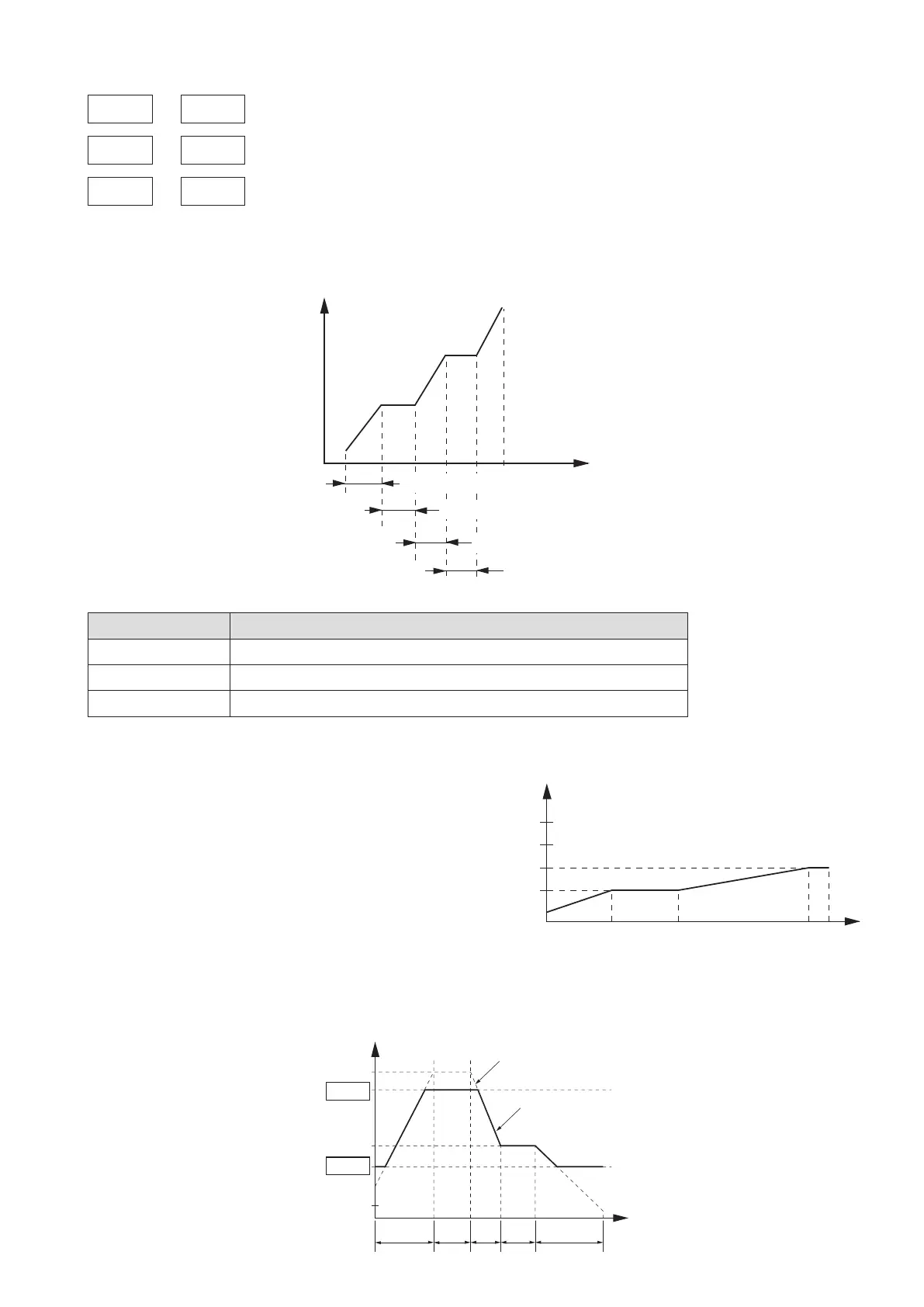

[Description] –––––––––––––––––––––––––––––––––––––––––––––––––––––––
Sets the ramp soak SV, ramp time and soak time.
SV-1
SV-2
Step2 soak time (tM2S)
SV
Step1 ramp time (tM1R)
Step1 soak time (tM1S)
Step2 ramp time (tM2R)
Parameter Setting range
SV-1 to SV-8 SV lower limit (SV-L) to SV upper limit (SV-H) %FS
tM1R to tM8R 00.00 to 99.59
tM1S to tM8S 00.00 to 99.59

The segment that both ramp time and soak time are set to 0.00 will be skipped.
[Example] In the example below, the step 2 is skipped.
SV-1: 50 SV-2: 200 SV-3: 100
tM1R: 0.10 tM2R: 0.00 tM3R: 1.00
tM1S: 0.05 tM2S: 0.00 tM3S: 0.75
100
200
50
SV
tM1R tM1S tM3R tM3S t

The SV limit function ([SV-H], [SV-L]) is in effect while ramp soak is running.
The set value (SV-n) does not change, but the value is limited during ramp soak. For the above reason, the value
may not change at the set times and the ramp soak runs with the following pattern.
SV-2
SV-H
SV-L
SV-1
SV
t
Program pattern
PV
SV-3
tM1R tM1S tM2R tM3R tM2S
Pattern with
SV limit applied
