Fuji Electric Micro-Controller X Socket type User Manual

55
2nd block parameter
Mod

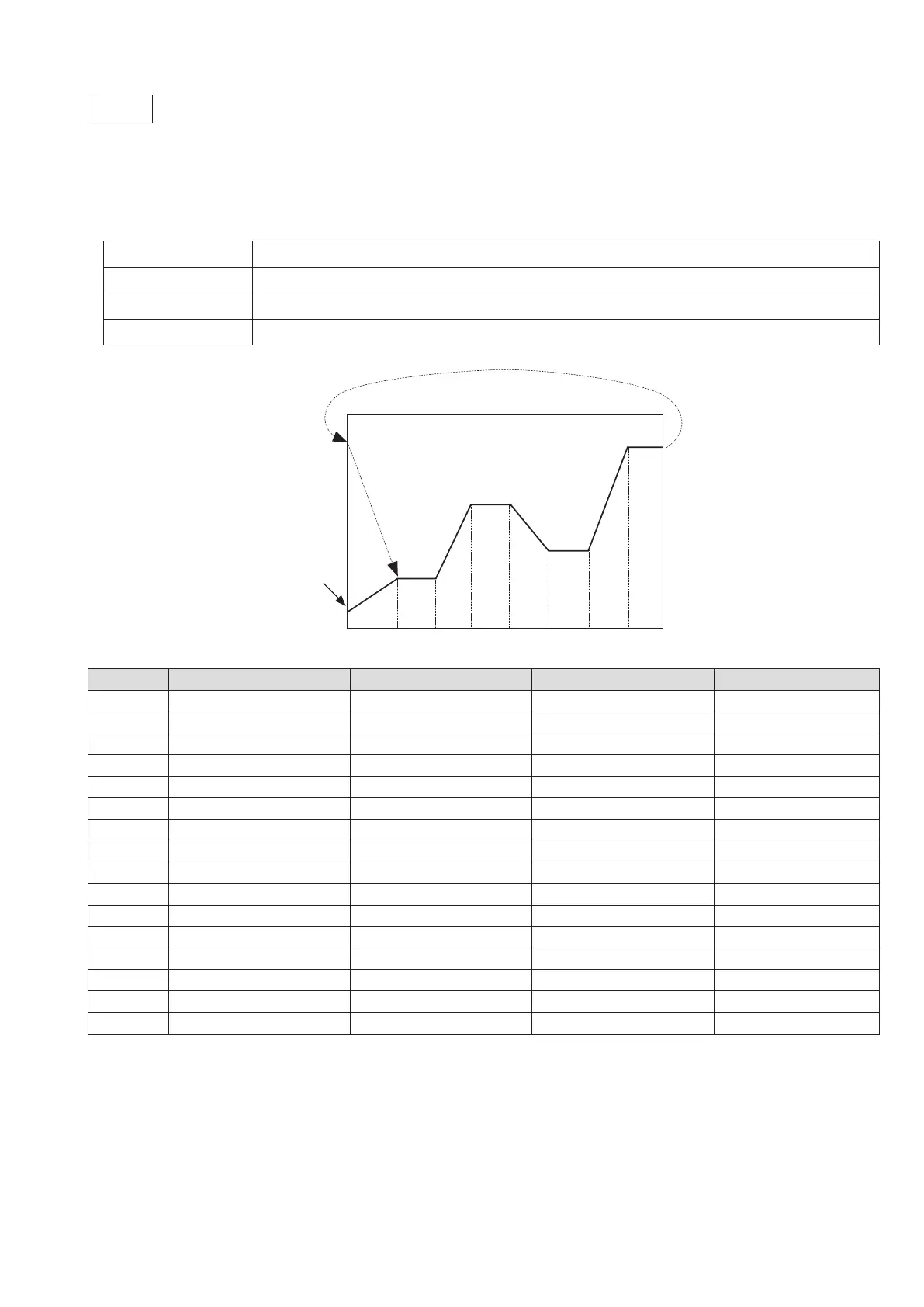

Ramp soak mode (080)
[Description] –––––––––––––––––––––––––––––––––––––––––––––––––––––––
Allows you to set the method of ramp soak operation.

You can select from 16 options that are the combinations of the following four items.
Power-on start
Starts ramp soak with the current PV when the PXF is turned on.
END output
Maintains the same state as at the end of ramp soak when ramp soak is complete.
oFF output
Switches to the OFF state when ramp soak is complete.
Repeat
Repeats ramp soak from step 1 when the last step nishes.
PV
SV-1
SV-2
SV-3
SV-4
tM1R tM1S tM2R tM2S tM3R tM3S tM4R tM4S
1st ramp
1st soak
4th soak
3rd soak
4th ramp
2nd soak
2nd ramp
3rd ramp
Power on
start
Repeat on
Setpoint
Power-on start End output oFF output Repeat
0
off Maintain control Maintain control off
1
off Maintain control Maintain control on
2
off Maintain control Standby Mode off
3
off Maintain control Standby Mode on
4
off Standby Mode Maintain control off
5
off Standby Mode Maintain control on
6
off Standby Mode Standby Mode off
7
off Standby Mode Standby Mode on
8
on Maintain control Maintain control off
9
on Maintain control Maintain control on
10
on Maintain control Standby Mode off
11
on Maintain control Standby Mode on
12
on Standby Mode Maintain control off
13
on Standby Mode Maintain control on
14
on Standby Mode Standby Mode off
15
on Standby Mode Standby Mode on

If the Repeat setting is off, the PXF retains the last SV after the ramp soak operation is over.
