2nd block parameter
[Setting example] Setting P = 10.0%, I = 100sec, D = 20sec –––––––––––––––––

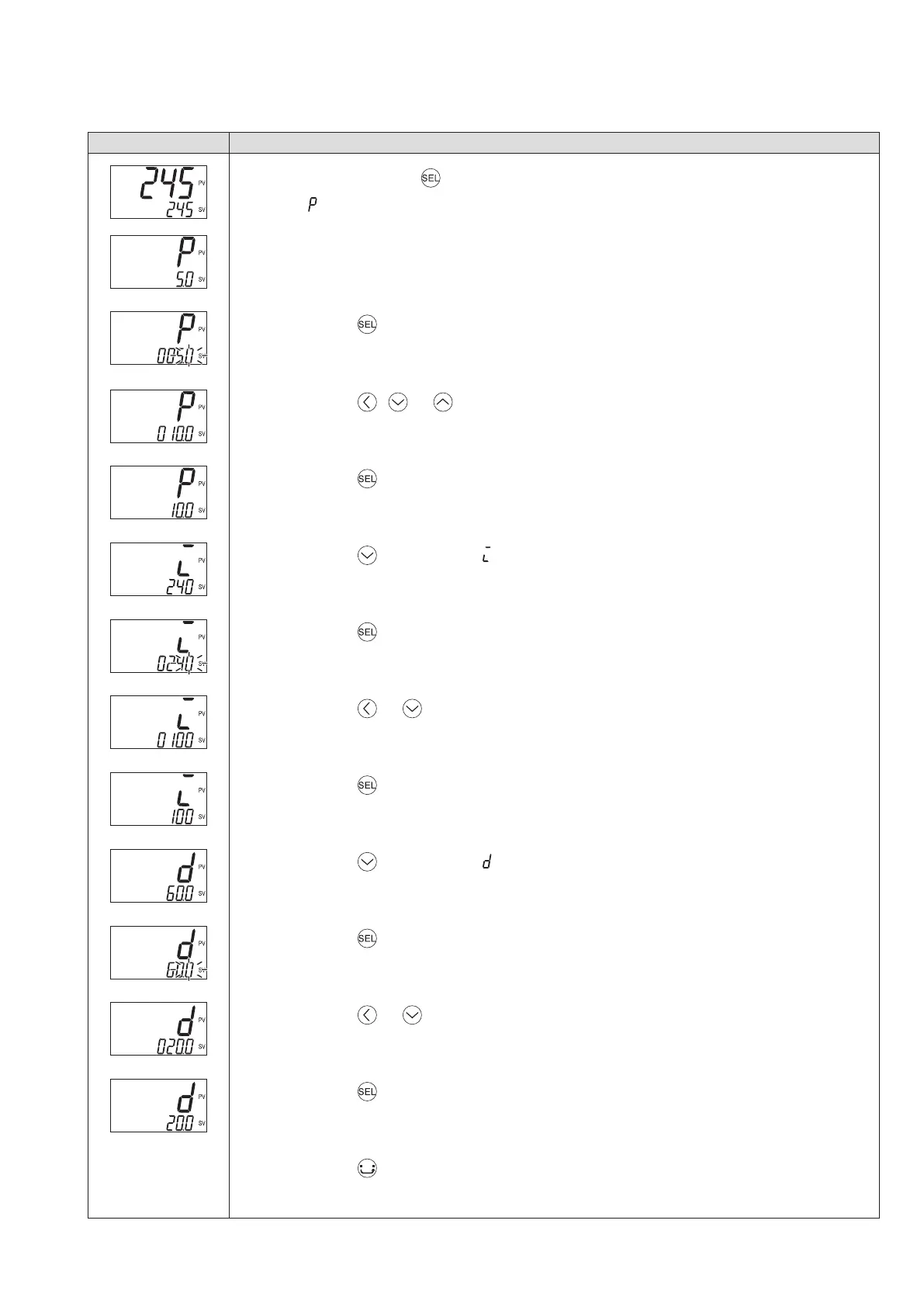

Display Operating procedure
1.
Press and hold the key for about three seconds during the SV/PV display.

appears.
2.
Press the key.

The setpoint starts blinking.
3.
Press the , or keys to change “ 5.0 ” to “ 10.0 .”
4.
Press the key or wait for three seconds to save the change.

The setpoint is set to “ 10.0 .”
5.
Press the key to display .
6.
Press the key.

The setpoint starts blinking.
7.
Press the or keys to change “ 240 ” to “ 100 .”
8.
Press the key or wait for three seconds to save the change.

The setpoint is set to “ 100 .”
9.
Press the key to display .
10.
Press the key.

The setpoint starts blinking.
11.
Press the or keys to change “ 60.0 ” to “ 20.0 .”
12.
Press the key or wait for three seconds to save the change.
13.
Press the key.

The screen returns to the SV/PV display.
