10.2 Installing 2 Tray Module and Tandem Tray Module

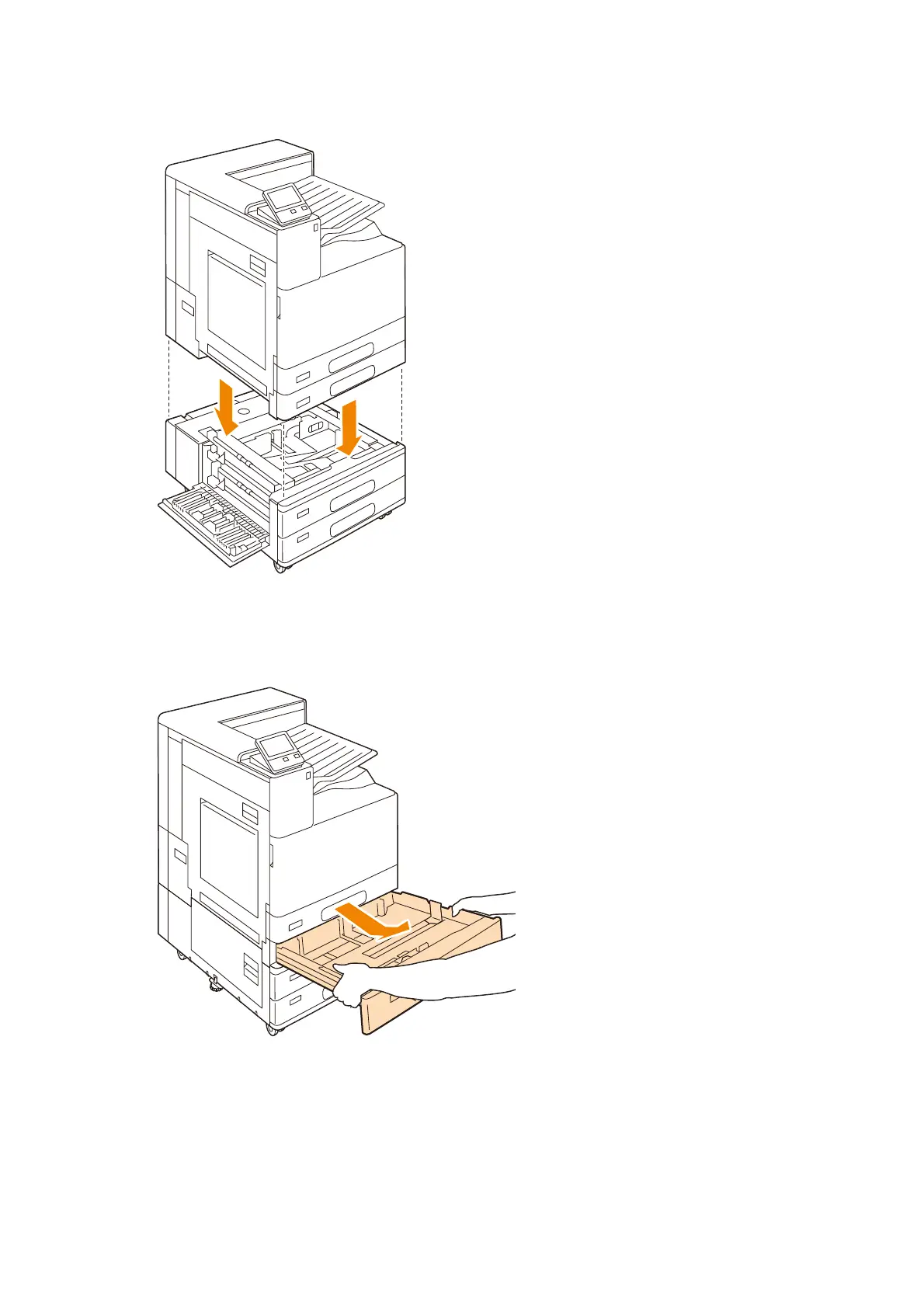

8. Align the corners of this machine and the 2 Tray Module, and then slowly lower the module.
9. Close the cover on the lower left side.
10. Support both sides of the Tray 2 with both hands, slightly raise the front side, and remove it from the unit.
