1.5 Main Components and Functions
1.5 Main Components and Functions

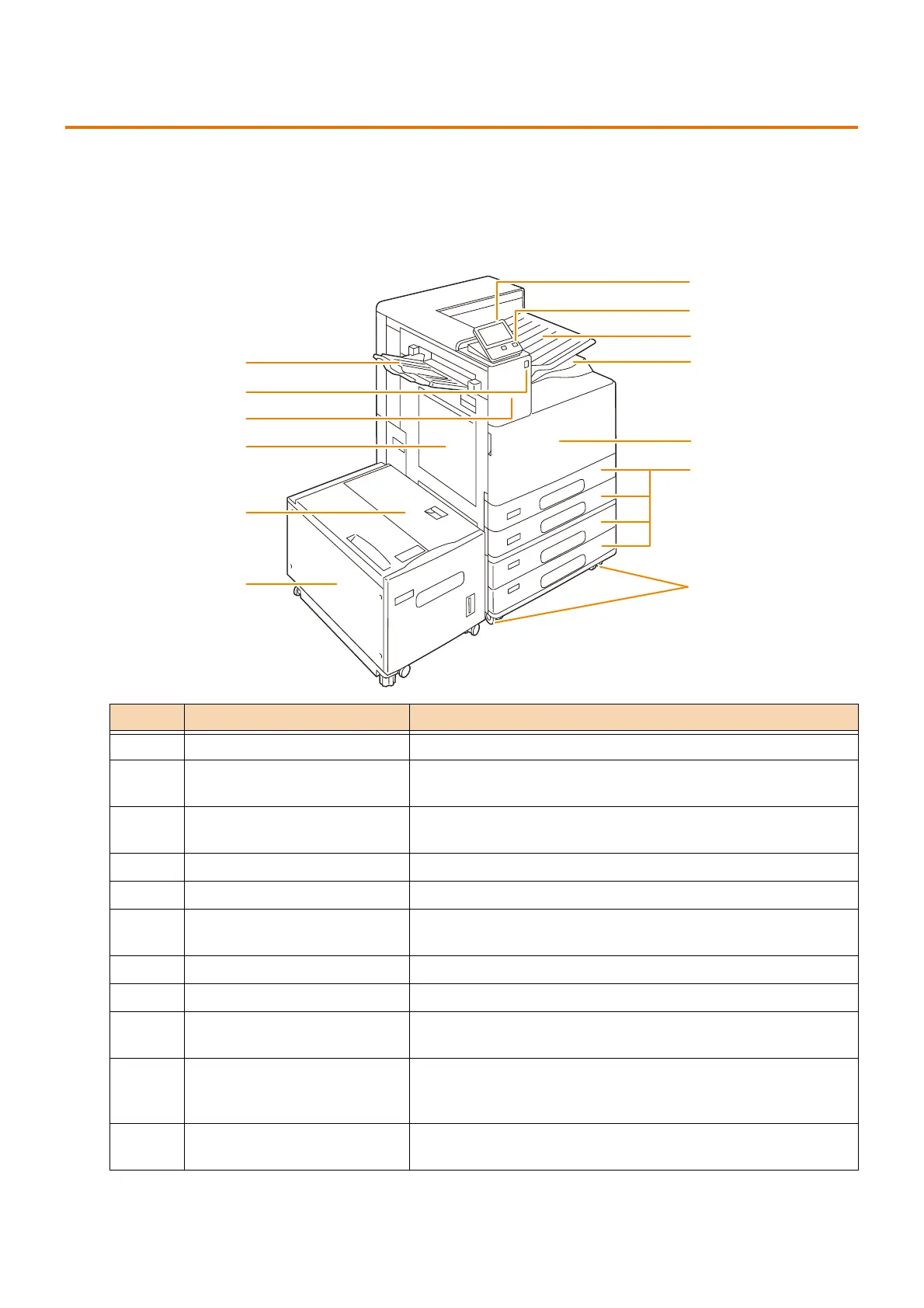

Unit
Main unit, HCF (A4 1 Tray) (optional), 2 Tray Module (optional)
No. Name Description
1 Control panel Consists of operation buttons, LED indicators, and the touch screen.
2
<Power/Power Saver> button
Turn the power of th
e machine on and off. You can also use the button to wake the machine or put it in Power Saver Mode.
3 Inner Output Tray Outputs are delivered here by separating the center tray into upper
and lower levels.
4 Center tray (Output Tray) Printed paper is delivered here.
5 Front cover Open this cover to replace the consumables.
6 Tray 1, 2, 3, and 4 (3 and 4 are
optional)
Load paper here.
7 Locking casters Lock these casters after moving the device to its installation site.
8 Tray 6 (HCF B1 (optional)) Load paper here.
9 Tray 6 (HCF B1 (optional)) top
cover
Open this cover to clear paper jams after moving Tray 6 to the left.
10 Tray 5 (Bypass) Use to print papers that are not or cannot be loaded (special papers
such as transparencies and heavyweight paper) in Tray 1, 2, 3, and
4 (3 and 4 are optional).
11 Built-in IC Card Reader
(optional)
If an IC card is tapped, the machine reads the registered user
information and authenticates the user.
4
5
6
7
10
12
1
2
3
13
8
9
11
