11.5 Emulation
Short Edge Feed (SEF)
Hard Clip

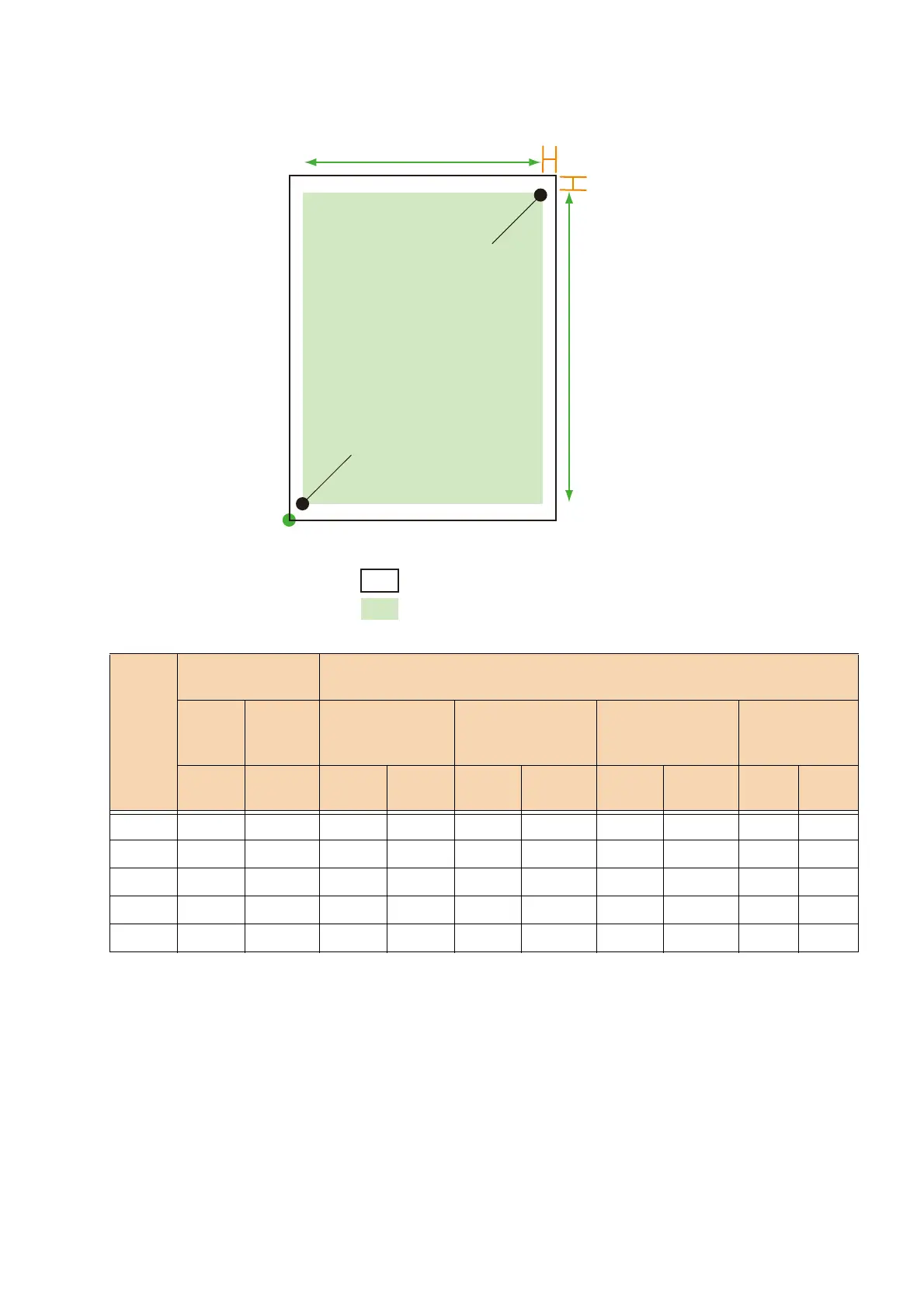

The area determined from the coordinates is called the hard clip area.
The hard clip area is determined from the printable area or the output size.
Output Size
Printable area
Output
Size
Paper length
(1/7200 inch)
Coordinate value
(1/7200 inch)
X
directio
n
Y
direction
Margin Printable area Top right edge Margin
Width Height Bottom
left X
Bottom
left Y
Long
Edge
Short
Edge
Top
right X
Top right
Y
XR YU
A3 84168 119052 1260 1260 81648 116532 82908 117792 1260 1260
A4 59508 84168 1260 1260 56988 81648 58248 82908 1260 1260
A5 41940 59508 1260 1260 39420 56988 40680 58248 1260 1260
JIS B4 72828 103176 1260 1260 70308 100656 71568 101916 1260 1260
JIS B5 51588 72828 1260 1260 49068 70308 50328 71568 1260 1260
(Top-right X, Top-right Y)
(Bottom-left X, Bottom-left Y)
(0,0)
Long-side
Short-side
Margin XR
Margin YU
