6.3 Stapler Faults
221
Troubleshooting
6

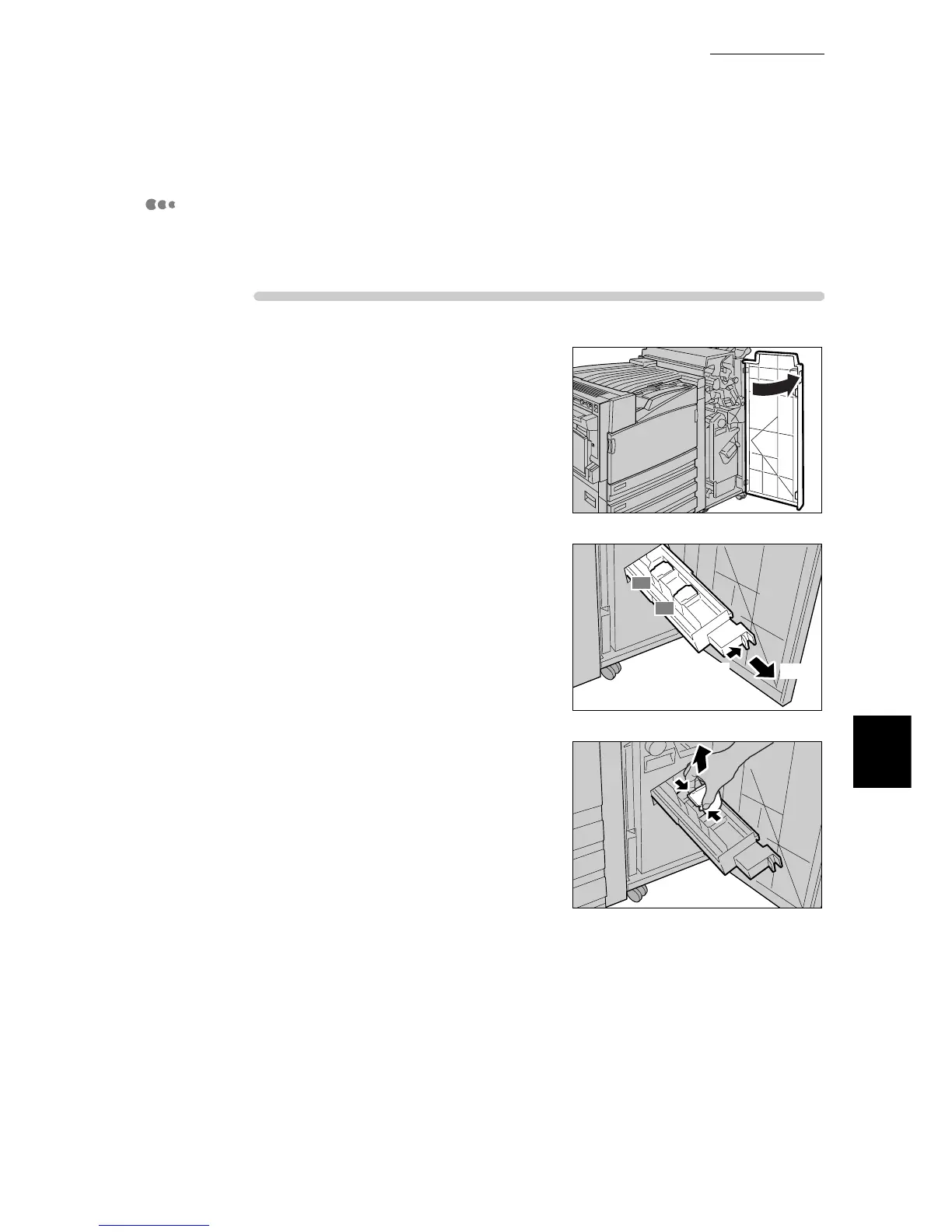

Staple jam in staple cartridge for saddle stitch
If a staple jams in the staple cartridge for saddle stitch, take the action as
described in the procedure below.
ure
1
Make sure that the machine has
stopped, and then open the front cover
on the professional finisher.
2
Pull out the unit while pushing levers
(R2) and (R3) rightward.
3
Hold the pawls on the left and right
sides of the staple cartridge for saddle
stitch, and remove the cartridge by pull-
ing it upward.
R2
R3
(2)
(1)
