CHAPTER 4
ETSI Configuration
Rack Configurations and Shelf Flange Kits
4-7
FLASHWAVE 7500 Release 6.1
Equipment Installation
Fujitsu and Fujitsu Customer Use Only
FNC-7500-0061-200
Issue 1, May 2009

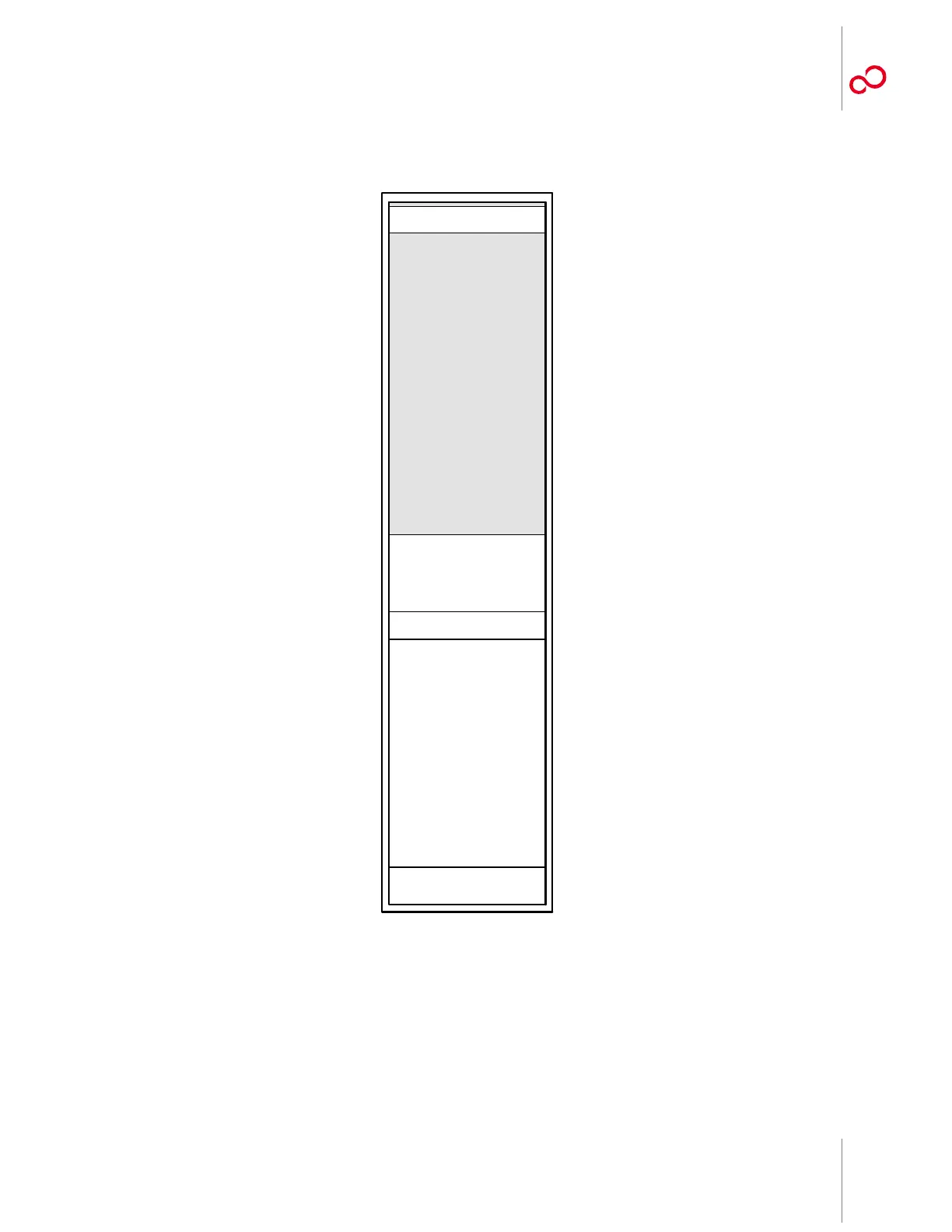

Figure 4-4: Rack Configuration with One ILA Shelf
(PCD1B110-0945-A001) (ETSI Configuration)
HA21L-0001-T122 #01
(600 mm x 300 mm x 2200 mm rack)
Base Cover with AC Outlet
Bulk Storage Drawer
FLASHWAVE 7500 ETSI Shelf
Power Distribution Panel
PCD1B110-0945-A001
DCM Shelf
m1718wi_1
