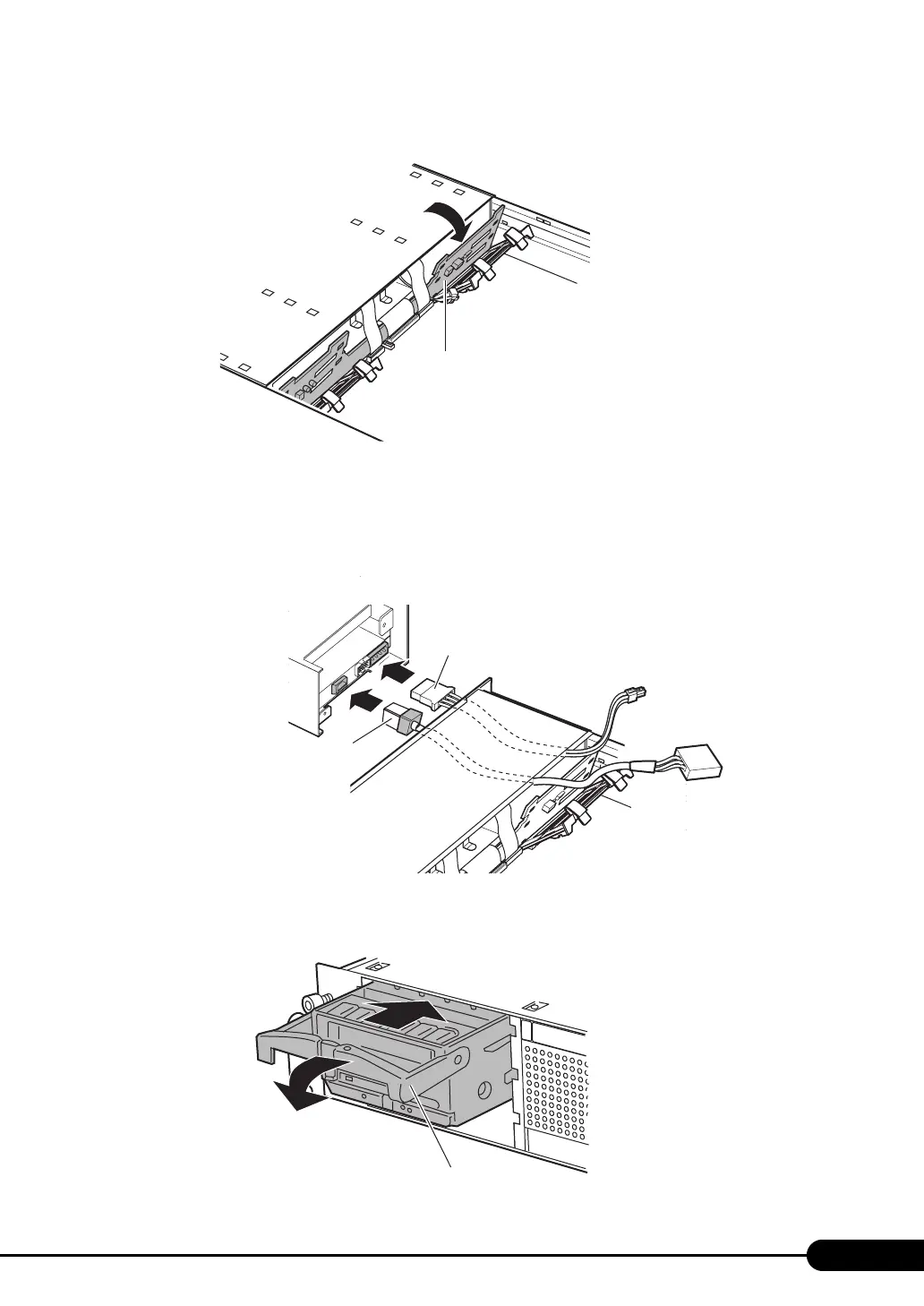

9 Tilt the rear SAS backplane towards the back.
10 Install the internal backup device to bay 2 and bay 3.
1. Connect the power cable and the USB cable to the connectors of the internal
backup device and put them through the hole at the back of the 3.5-inch storage
bay.
2. Insert the internal backup device with its handle raised while pulling the cable to the
server inside.
3. Lower the handle, and Insert the device firmly.
SAS Backplane
[Rear of internal backup device]
USB cable
Power cable
Handle
(1)
(2)
