Names and Functions of Components
This section describes the names of parts and their functions.

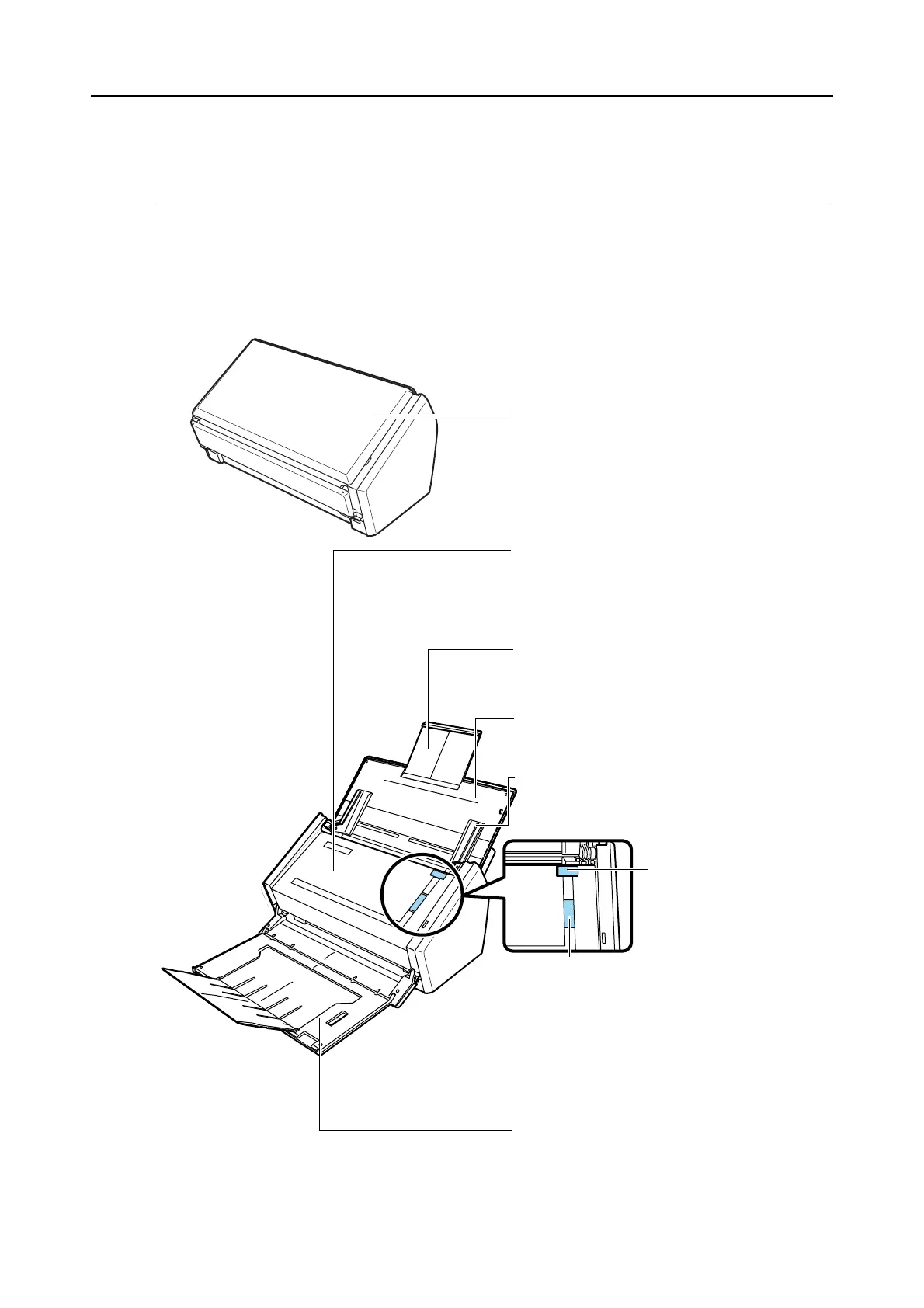

■ Front View
ADF paper chute (cover)
Open the cover to use the ScanSnap.
⇒ Opening the cover turns on the ScanSnap.
Extension
When scanning long-size documents, pull up
this part.
Side guide
Adjust the side guides to the width of documents
so that the scanned images will not be skewed.
ADF release catch
To open the ADF top sec-
tion, pull the ADF release
catch toward you.
[Scan] button
Press this button to start the scanning. You can
press the button even when the stacker is
closed. The power status of the ScanSnap is
indicated as follows:
Blue (Lit up continuously): Ready
Blue (Blinking): Scanning
Orange (Blinking): Error
ADF paper chute (cover)
After opening it, load the documents to be
scanned on this part.
Stacker
Open and use the stacker.
⇒ The documents are ejected onto the stacker.
ADF top section
(*ADF: Automatic Document Feeder)
Open the cover to clear document jams,
replace the pad assembly and the pick roller,
and clean the inside of the ScanSnap.
