Cleaning the Inside of the ScanSnap
328
2. Clean the following locations with a cloth moistened with Cleaner F1.
Turn off the ScanSnap before cleaning the following locations.
• Pad assembly (× 1)
Wipe the pad assembly downwards. When cleaning the pad assembly, take care to
prevent the cloth from catching on the metal parts.
• Scan glass (× 2, located on the ADF top section and opposite side)
Clean lightly with a soft cloth.
• White sheets (× 2, located on the ADF top section and opposite side)
White strips along the edge of the scan glass. Clean lightly with a soft cloth.
• Ultrasonic sensors (× 2, located on the ADF top section and opposite side)
Clean lightly with a soft cloth.
• Pick roller (× 1)
Clean it lightly while rotating the roller with your finger downwards. Be careful not to
roughen the surface of the rollers. Take particular care in cleaning the rollers since
debris left on the roller adversely affects the feed performance.
• Idler rollers (× 4, located on the ADF top section)
Clean them lightly while rotating the rollers with your finger. Be careful not to roughen
the surface of the rollers. Take particular care in cleaning the rollers since debris left
on the roller adversely affects the feed performance.
It may take a long time before the cleaner vaporizes if a large quantity is used. When
cleaning the ScanSnap parts, dampen a cloth with modest quantities of the cleaner. In
addition, wipe off the cleaner completely with a soft lint-free cloth to leave no residue on
the surface of the cleaned parts.

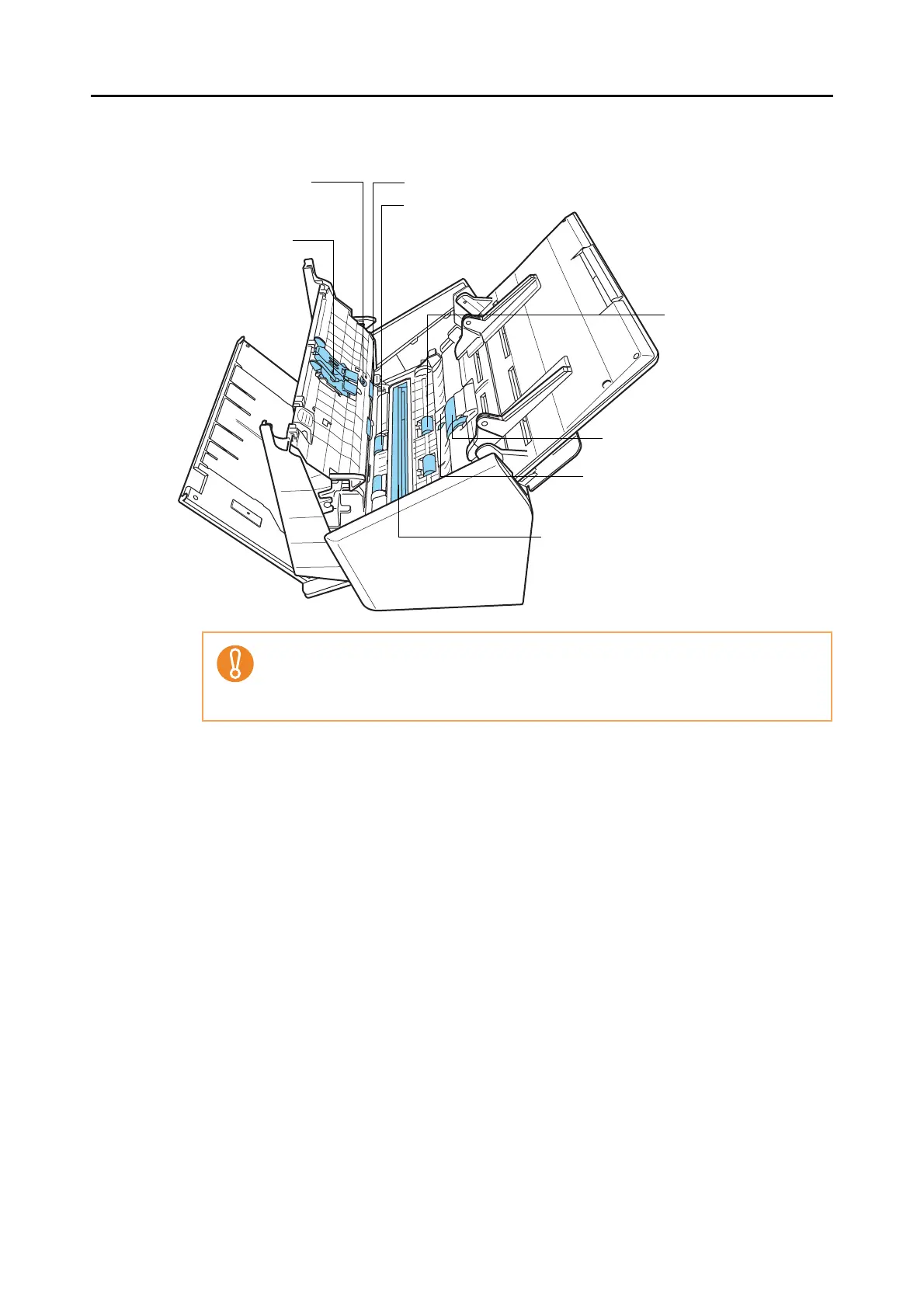

Ultrasonic sensor
Ultrasonic sensor
(including the one on the ADF top
section)
Scan glass (× 2)
(including the one on the ADF top section)
Pick roller
Feed rollers
(× 2)
Eject rollers (× 2)
Pad assembly
Idler rollers (× 4)
